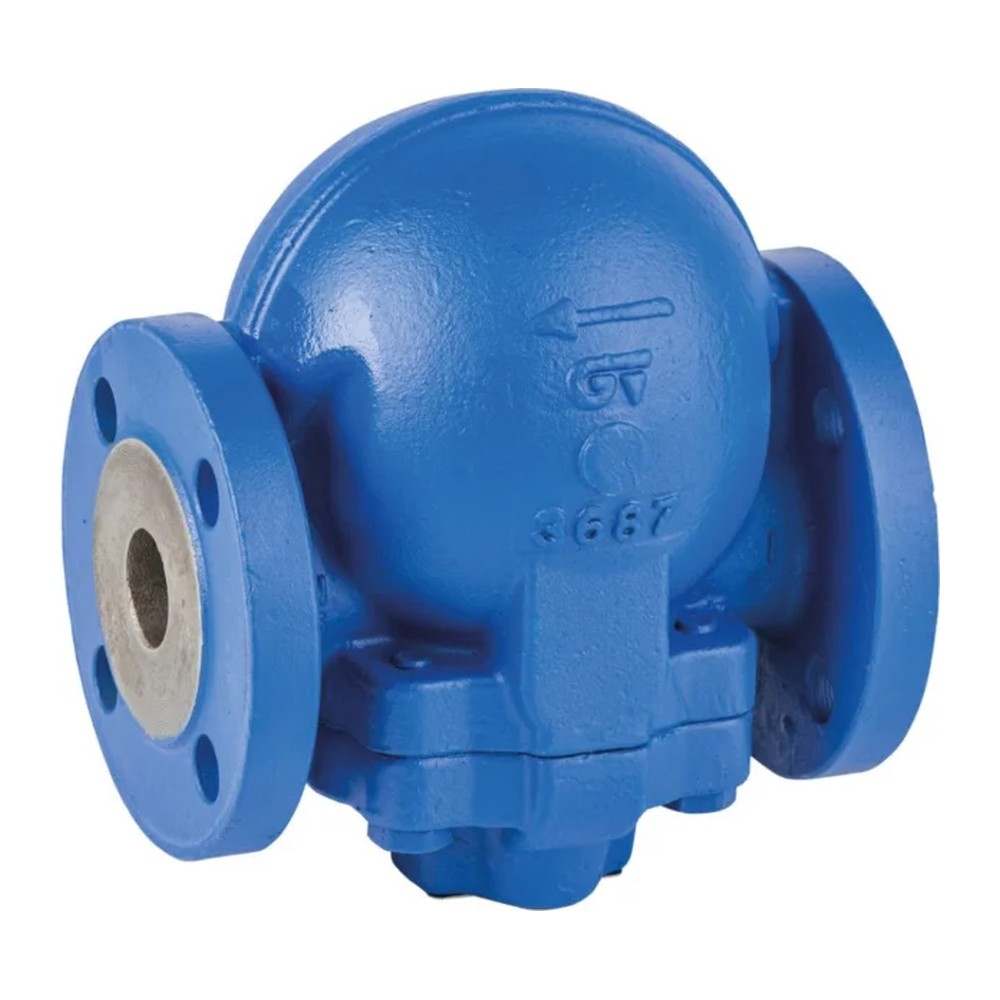

Ball float steam trap (lever type)
Available on order · sourced to your specification
Price on request
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Process Valve
- Size range: 1/2"~12" (DN15~DN300)
- Connection: Socket welded, screwed (ASME B1.20.1), flanged (ANSI B16.5) or butt-weld (ANSI B16.25)
- Pressure rating: Class 150 / 300; PN16 / PN25 / PN40 / PN63
- Working temperature: 0 to 350°C
- Material: WCB, SS 304, SS 316
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1236 |
| Category | Valves & Fittings |
| Group | Valves & Fittings |
| Brand | Argonmark |
| Technical | |
| Type | Process Valve |
| Size range | 1/2"~12" (DN15~DN300) |
| Connection | Socket welded, screwed (ASME B1.20.1), flanged (ANSI B16.5) or butt-weld (ANSI B16.25) |
| Pressure rating | Class 150 / 300; PN16 / PN25 / PN40 / PN63 |
| Working temperature | 0 to 350°C |
| Material | WCB, SS 304, SS 316 |
| Application | Water, Gas, Oil, Acid, Steam |
Datasheet
Design standard
| Design | ASTM F1139-1988 / DIN 3356 |
|---|---|
| Face to face | ASME B16.10-1992 |
| Inspection & testing | API 598 / DIN 3230 |
| Flange dimension | ANSI B16.5 |
| Butt-weld ends | ANSI B16.25 |
| Screw ends | ASME B1.20.1 |
Technical features
| Working temperature | 0°C to 350°C |
|---|---|
| Working pressure | Class 150 / 300 (PN16 / PN25 / PN40 / PN63) |
| Socket welded, screwed and flanged ends | |
| Balanced double and single seat with reliable close-down and long life cycle | |
| Reliable water seal for high temperature without any leakage | |
| Stainless steel internals resist corrosion and cavitation erosion | |
Performance specification
| Nominal pressure | 4.0 MPa |
|---|---|
| Strength test pressure | 6.0 MPa |
| Sealing test pressure | 4.4 MPa |
| Gas seal test pressure | 0.6 MPa |
| Max. temperature | 350°C |
Material list
| No. | Part | Carbon steel | Stainless steel 304 | Stainless steel 316 |
|---|---|---|---|---|
| 1 | Body | WCB | SS 304 | SS 316 |
| 2 | Float ball | SS 304 | ||
| 3 | Seat | 2Cr13 | ||
| 4 | Disc | 2Cr13 | SS 304 | SS 316 |
| 5 | Yoke | SS 304 | ||
| 6 | Bonnet | WCB | ||
| 7 | Gasket | SS 304 + graphite | ||
| 8 | Venting group | SS 304 | ||
Columns are the available body materials; the Body row gives the material grade.
Notes
| The supplier sheet includes two discharge-capacity charts (FT43 / FT44 / FT14 series, DN15–DN100) against working-pressure difference. Charts available on request. |
Description
Ball float steam trap (lever type) supplied by Argonmark Ltd for industrial plants, contractors and workshops across Bangladesh. Category: Valves & Fittings. Available brands include Argonmark.
