Isotech semi-standard platinum resistance thermometers, −200 to 670 °C (series)
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1390 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Isotech |
| Model | 935-14 series |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Handmade high-stability platinum coil elements, sensing length max. 25 mm | |
| Annealed and thermally processed, stability checked over multiple cycles | |
| Straight, angled and 90° bent versions for baths and portable calibrators | |
| With UKAS calibration, performance much better than IEC 60751 tolerance classes | |
| Carry case included |
Applications
| Working standards in dry blocks and liquid baths | |
| High-accuracy sensors for precision thermometers and bridges |
Key specifications
| Sensor | Pt100, IEC 60751, 4-wire |
|---|---|
| Range | −200 to 670 °C (by model) |
| Probe size | 3–6 mm diameter, 165–480 mm |
| Termination | Bare wire, TTI or dry-block connector |
Universal specification
| Ro | 100 Ω ± 0.05 Ω |
|---|---|
| Alpha | 0.003850 ± 0.000005 |
| Standard | IEC 60751 |
| Stability | 0.010 Ω/year |
| Recommended current | 1 mA |
| Self-heating at 1 mA | 0.004 °C |
| Connection | Four-wire |
| Max. handle temperature | 80 °C |
| Calibration | Optional UKAS; uncertainty as low as 10 mK over narrow ranges, typically 50 mK at 660 °C |
| Recommended minimum length | 225 mm up to 250 °C; 350 mm for higher temperatures |
Models
| Model | Range | Diameter | Length | Sensing length | Handle | Cable | Use |
|---|---|---|---|---|---|---|---|
| 935-14-112 | −50 to 250 °C | 3 mm | 225 mm | 6 mm | No handle | 2 m PTFE | General purpose / TTI-10 |
| 935-14-61 | −50 to 250 °C | 4 mm | 300 mm | 6 mm | 19 × 120 mm | 2 m PTFE | Fast response, low stem conduction |
| 935-14-13 | −196 to 250 °C | 6 mm | 350 mm | 25 mm | 25 × 115 mm | 2 m PTFE | Low temperature |
| 935-14-113 | −100 to 250 °C | 6 mm | 350 mm | 25 mm | 19 × 120 mm | 2 m PTFE | General purpose |
| 935-14-16 | −100 to 450 °C | 6 mm | 450 mm | 25 mm | 19 × 120 mm | 2 m PTFE | General purpose |
| 935-14-116 | −100 to 450 °C | 6 mm | 350 mm | 25 mm | 19 × 120 mm | 2 m PTFE | General purpose, fits milliK case |
| 935-14-72 | −50 to 670 °C | 6 mm | 375 mm | 25 mm | No handle | 2 m PTFE | Fits Jupiter / Gemini carry case |
| 935-14-98 | −50 to 350 °C | 4 mm | 300 mm | 8 mm | No handle | 2 m PTFE | Low stem conduction |
| 935-14-95L | −200 to 165 °C | 6 mm | 480 mm | 25 mm | 25 × 115 mm | 2 m PTFE | Working standard |
| 935-14-95H | −80 to 670 °C | 6 mm | 480 mm | 25 mm | 19 × 120 mm | 2 m PTFE | Working standard |
| 935-14-82 (angled) | −50 to 250 °C | 4 mm | 165 mm | 6 mm | — | 1.5 m PTFE | Europa, Venus, Calisto |
| 935-14-85 (angled) | −50 to 250 °C | 6 mm | 385 mm | 25 mm | — | 0.54 m PTFE | Oceanus-6 |
| 935-14-75 (90° bend) | −50 to 250 °C | — | — | 6 mm | — | 2 m PTFE | Europa, Venus, Calisto |
| 935-14-78 (90° bend) | 0 to 660 °C | — | — | 25 mm | — | 2 m PTFE | Gemini, Jupiter |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

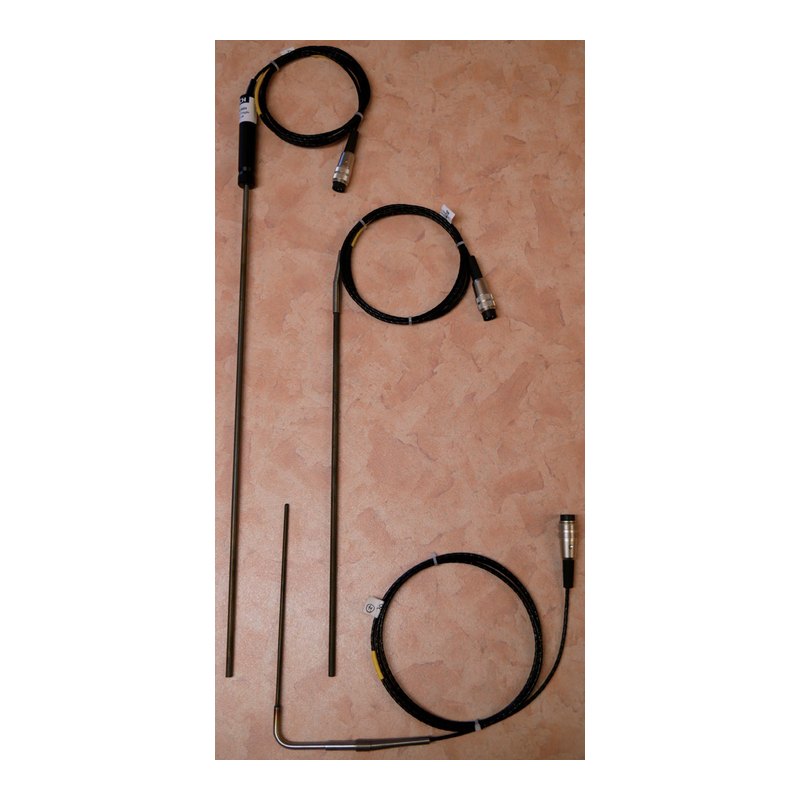

Photo: courtesy of Isotech, used with permission (source) — background removed by Argonmark. All photo credits
Description
Isotech semi-standard platinum resistance thermometers are metal-sheathed 100 Ω (IEC 60751) four-wire reference probes covering −200 °C to 670 °C depending on the model. They use handmade platinum coil elements with a short sensing length, are annealed and thermally processed, and drift 0.010 Ω per year.
Straight, angled and 90° bent versions fit liquid baths, dry blocks and portable calibrators; with UKAS calibration the uncertainty can be as low as 10 mK over a narrow range.
Argonmark Ltd supplies Isotech instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
