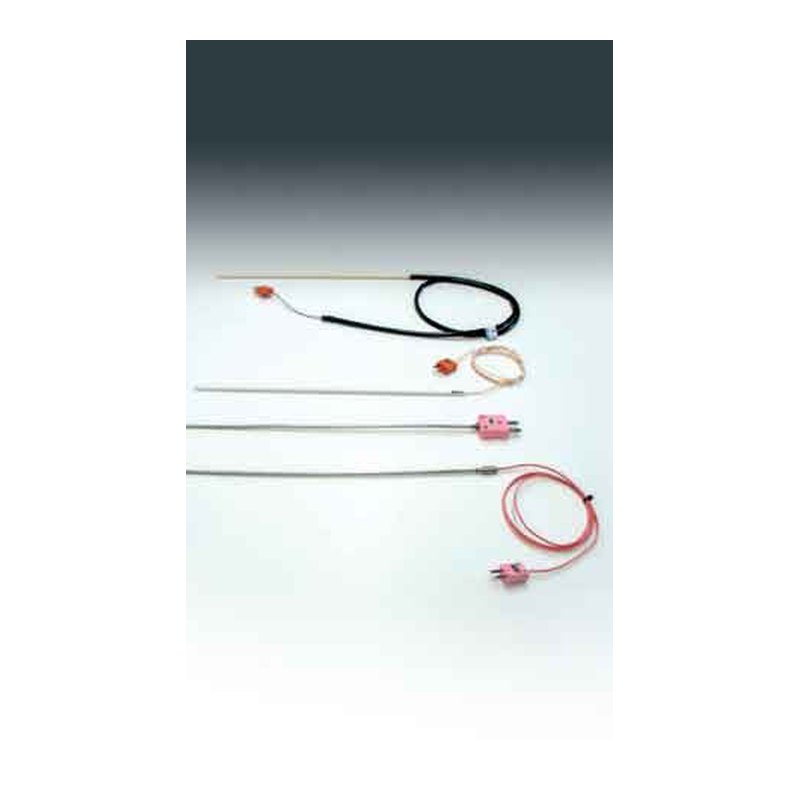

Isotech semi-standard thermocouples, Type R/S/N, 0 to 1300 °C (series)
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1391 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Isotech |
| Model | 935-14 thermocouples |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Noble metal Type R/S for best life, stability and reproducibility; carry case included | |
| Lower-cost mineral-insulated Type N versions that can be bent to shape | |
| Suitable as references in dry blocks and with temperature indicators | |
| Optional UKAS calibration |
Applications
| Reference thermocouples in dry-block calibrators | |
| General industrial measurement and calibration |
Key specifications
| Sensor | Thermocouple Type R, S (noble metal) or N (MIMS) |
|---|---|
| Range | 0 to 1300 °C |
| Probe size | 3–5 mm diameter, 300 or 500 mm |
| Termination | Miniature or standard plug, 1 m cable |
Models
| Model | Type | Diameter | Length | Termination | Range | Use |
|---|---|---|---|---|---|---|
| 935-14-91/R | R | 5 mm | 300 mm | 1 m extension cable to miniature plug | 0 to 1300 °C | Pegasus |
| 935-14-91/S | S | 5 mm | 300 mm | 1 m extension cable to miniature plug | 0 to 1300 °C | General purpose |
| 935-14-88/R | R | 5 mm | 300 mm | 1 m platinum cable to miniature plug | 0 to 1300 °C | Working industrial standard |
| 935-14-88/S | S | 5 mm | 300 mm | 1 m platinum cable to miniature plug | 0 to 1300 °C | Working industrial standard |
| 935-14-63 | N | 3 mm | 300 mm | 1 m cable, miniature plug | 0 to 1300 °C | Gemini 700, Jupiter 650 |
| 935-14-64 | N | 3 mm | 300 mm | Miniature plug | 0 to 1300 °C | General purpose |
| 935-14-65 | N | 3 mm | 300 mm | Standard plug | 0 to 1300 °C | General purpose |
| 935-14-66 | N | 3 mm | 500 mm | 1 m cable, miniature plug | 0 to 1300 °C | General purpose |
| 935-14-67 | N | 3 mm | 500 mm | Miniature plug | 0 to 1300 °C | General purpose |
| 935-14-68 | N | 3 mm | 500 mm | Standard plug | 0 to 1300 °C | General purpose |
UKAS calibration uncertainty (k=2)
| Thermocouple | Temperature range | Uncertainty (±) |
|---|---|---|
| Platinum | −50 to 0 °C | 0.5 K |
| Platinum | 0 to 50 °C | 0.45 K |
| Platinum | 50 to 660 °C | 0.4 K |
| Platinum | 660 to 1100 °C | 0.7 K |
| Platinum | 1100 to 1300 °C | 1.7 K |
| Other | −196 °C | 0.3 K |
| Other | −80 to 300 °C | 0.25 K |
| Other | 232 to 420 °C | 0.3 K |
| Other | 420 to 660 °C | 0.4 K |
| Other | 660 to 1100 °C | 0.8 K |
| Other | 1100 to 1300 °C | 2.2 K |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Isotech, used with permission (source) — background removed by Argonmark. All photo credits
Description
Isotech semi-standard thermocouples are reference sensors for 0 °C to 1300 °C. The noble-metal 935-14-91 and 935-14-88 (Type R or S) use platinum and platinum-rhodium in a 5 mm ceramic sheath; the 935-14-63 to -68 are lower-cost mineral-insulated Type N probes that can be bent to shape.
They are used as references in dry-block calibrators and with temperature indicators, and can be supplied with UKAS calibration (for example ±0.4 K from 50 °C to 660 °C for platinum types).
Argonmark Ltd supplies Isotech instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
