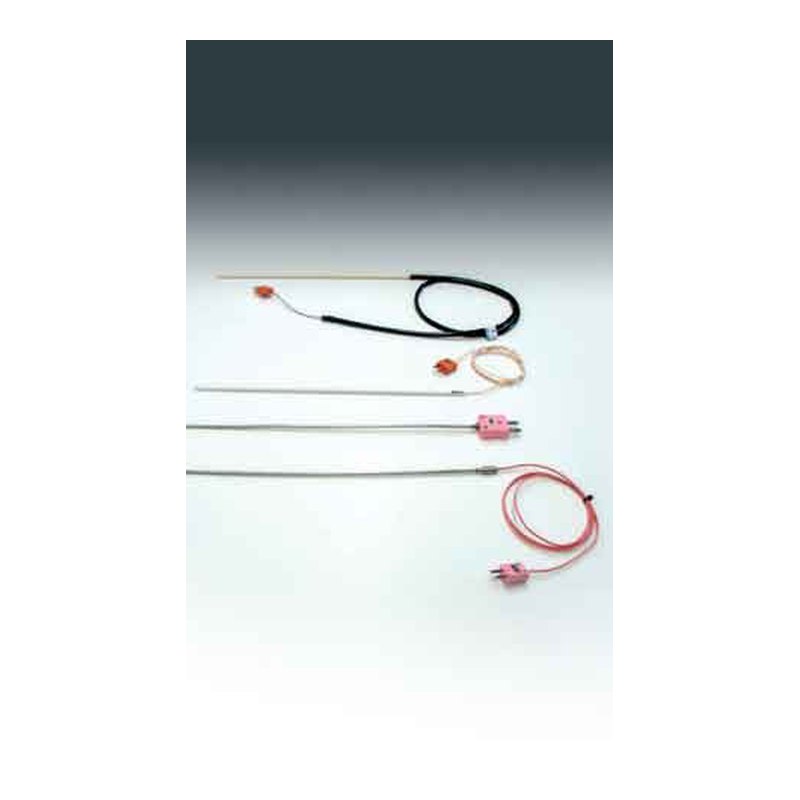

Isotech semi-standard Type R thermocouple, 0 to 1300 °C
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1392 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Isotech |
| Model | 935-14-91/R, 935-14-88/R |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Noble-metal Type R construction for best life, stability and reproducibility | |
| 935-14-88/R is made entirely of precious metal, with platinum wires up to the plug | |
| Carry case included | |
| Optional UKAS calibration |
Applications
| Reference thermocouple for dry-block calibrators (e.g. Pegasus 1200) | |
| Working industrial standard |
Key specifications
| Sensor | Thermocouple Type R (platinum / platinum-rhodium) |
|---|---|
| Range | 0 to 1300 °C |
| Probe size | 5 mm × 300 mm, ceramic sheath |
| Termination | 1 m cable to miniature plug |
Specification
| Thermocouple type | R (platinum / platinum-rhodium) |
|---|---|
| Range | 0 °C to 1300 °C |
| Sheath | Ceramic, 5 mm diameter |
| Length | 300 mm |
| Termination 935-14-91/R | 1 m compensating extension cable to miniature plug |
| Termination 935-14-88/R | 1 m platinum cable to miniature plug |
| UKAS calibration uncertainty (k=2) | ±0.45 K (0–50 °C), ±0.4 K (50–660 °C), ±0.7 K (660–1100 °C), ±1.7 K (1100–1300 °C) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Isotech, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Isotech semi-standard Type R thermocouple is a noble-metal reference sensor for 0 °C to 1300 °C, built from platinum and platinum-rhodium in a 5 mm × 300 mm ceramic sheath. The 935-14-91/R has a 1 m compensating cable to a miniature plug; the 935-14-88/R uses platinum wires all the way to the plug.
It is used as a reference in high-temperature dry blocks and as a working industrial standard, and can be supplied with UKAS calibration.
Argonmark Ltd supplies Isotech instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
