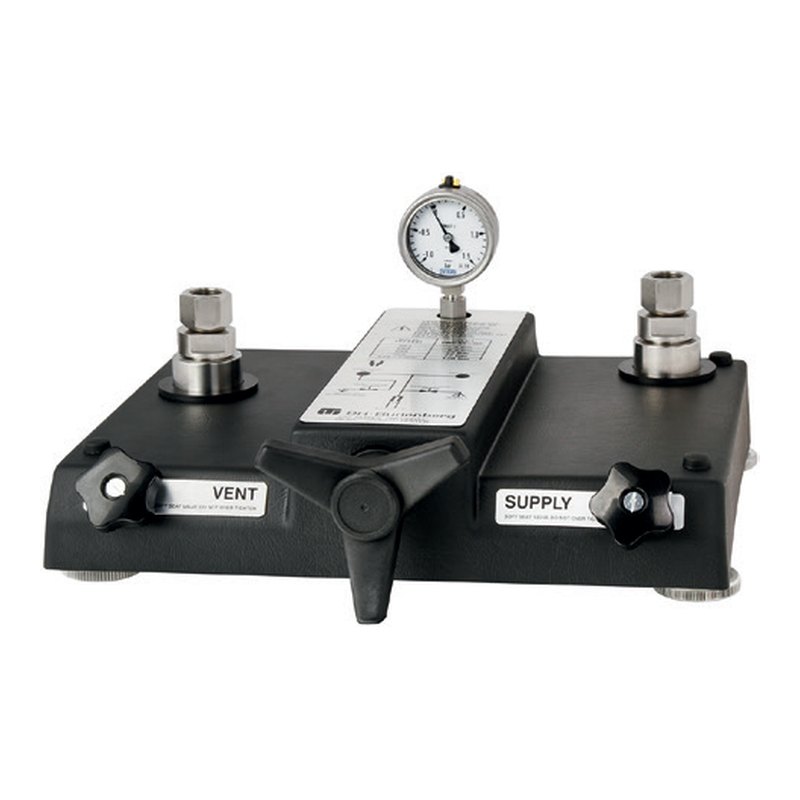

WIKA CPP120-X pneumatic comparison test pump, 0–120 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1399 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPP120-X |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Two fine metering valves for pressure inlet and pressure outlet or vacuum | |
| Precisely adjustable volume adjuster for fine pressure setting | |
| Connection for an external pressure or vacuum source on the rear panel | |
| Gauge shows the approximate pressure | |
| Same base as the CPB3500 dead-weight tester; spindle runs inside the pump body so dimensions do not change | |
| Robust ABS case, suitable for on-site use |
Applications
| Testing, adjustment and calibration of mechanical and electronic pressure instruments by comparison, on site, in the lab or workshop |
Key specifications
| Pressure range | 0 to 120 bar |
|---|---|
| Medium | Clean, dry, non-corrosive gas (air, nitrogen) |
| Test connections | 2 × G ½ female, loose union |
| Operation | Bench pump with external pressure or vacuum source |
Specification
| Pressure range | 0 to 120 bar |
|---|---|
| Pressure medium | Clean, dry, non-corrosive gases (e.g. air or nitrogen) |
| Test item connections | 2 × G ½ female thread, loose union |
| Distance between test connections | 290 mm |
| External pressure connection | G ¼ B female |
| Wetted parts | Austenitic stainless steel, high-tensile brass, copper, nitrile rubber |
| Operating temperature | 0 to 40 °C |
| Dimensions (W × D × H) | 510 × 490 × 210 mm |
| Weight | 22 kg |
Scope of delivery
| Included | Instrument base, two fine metering valves, volume adjuster, two G ½ test connections, one adapter set (BSP, NPT or metric), tool and maintenance set |
|---|---|
| Accessories | Additional adapter sets, 90° angle connection, 2-way test connection, separator 0–35 bar, storage case |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPP120-X is a pneumatic comparison test pump for checking and calibrating pressure gauges, transmitters and switches up to 120 bar. The instrument under test and a reference instrument are connected to the two G ½ ports, so both see exactly the same pressure; two fine metering valves and a volume adjuster set each test point precisely.
It works with clean, dry gas from an external pressure or vacuum source, has stainless steel and brass wetted parts, and comes in a compact 22 kg ABS base that suits site work as well as the workshop.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
