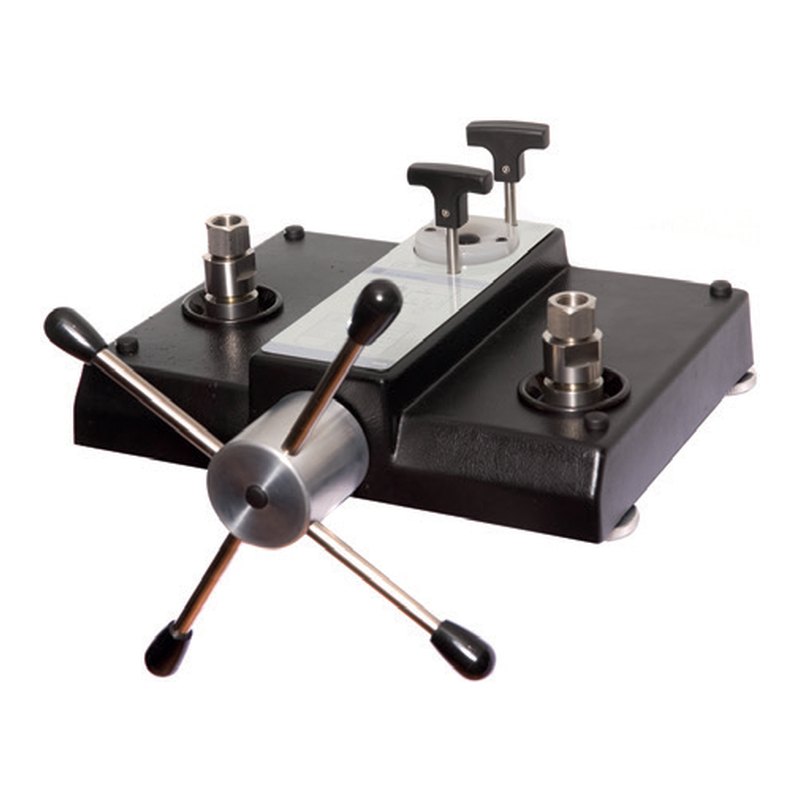

WIKA CPP1200-X hydraulic comparison test pump, 0–1200 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1400 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPP1200-X |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Dual-area spindle pump for filling, pressure generation and fine adjustment | |
| Switching valves for rapid filling of the test system and smooth pressure build-up | |
| Freely rotating test connections so instruments can be aligned | |
| Same base as the CPB3800 pressure balance; compact and light (13.5 kg) | |
| Control schematic printed on the base for quick operation |
Applications
| Hydraulic calibration of pressure gauges, transmitters and switches up to 1,200 bar, on site or in the workshop |
Key specifications
| Pressure range | 0 to 1,200 bar |
|---|---|
| Medium | Mineral oil or clean water (water / Skydrol versions) |
| Test connections | 2 × G ½ female, loose union, freely rotating |
| Operation | Dual-area spindle pump |
Specification
| Pressure range | 0 to 1,200 bar |
|---|---|
| Pressure medium | Hydraulic fluid from mineral oil / clean water free of calcium carbonate (other media on request) |
| Reservoir | 170 cm³ |
| Test item connections | 2 × G ½ female thread, loose union |
| Distance between test connections | 290 mm |
| Low-pressure piston diameter | 31.2 mm |
| High-pressure piston diameter | 12.7 mm |
| Displacement | approx. 10 cm³ |
| Wetted parts | Austenitic stainless steel, high-tensile brass, nitrile rubber |
| Operating temperature | 0 to 40 °C |
| Dimensions (W × D × H) | 401 × 397 × 155 mm |
| Weight | 13.5 kg |
| CE | Pressure Equipment Directive 97/23/EC (PS > 1,000 bar, module A) |
Scope of delivery and options
| Included | Instrument base with dual-area spindle pump, two G ½ test connections, adapter set (BSP, NPT or metric), 0.5 l VG22 mineral oil, tool and maintenance set |
|---|---|
| Options | Versions for water or Skydrol; wooden storage case (664 × 614 × 380 mm, 8.5 kg) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPP1200-X is a hydraulic comparison test pump that generates up to 1,200 bar for testing and calibrating pressure instruments against a reference gauge. Its dual-area spindle pump fills the system quickly at low pressure, then builds and finely adjusts the high pressure, and both G ½ test ports rotate freely to align the instruments.
It runs on mineral oil or clean water (water and Skydrol versions available), weighs 13.5 kg and comes with an adapter set, oil and a maintenance kit.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
