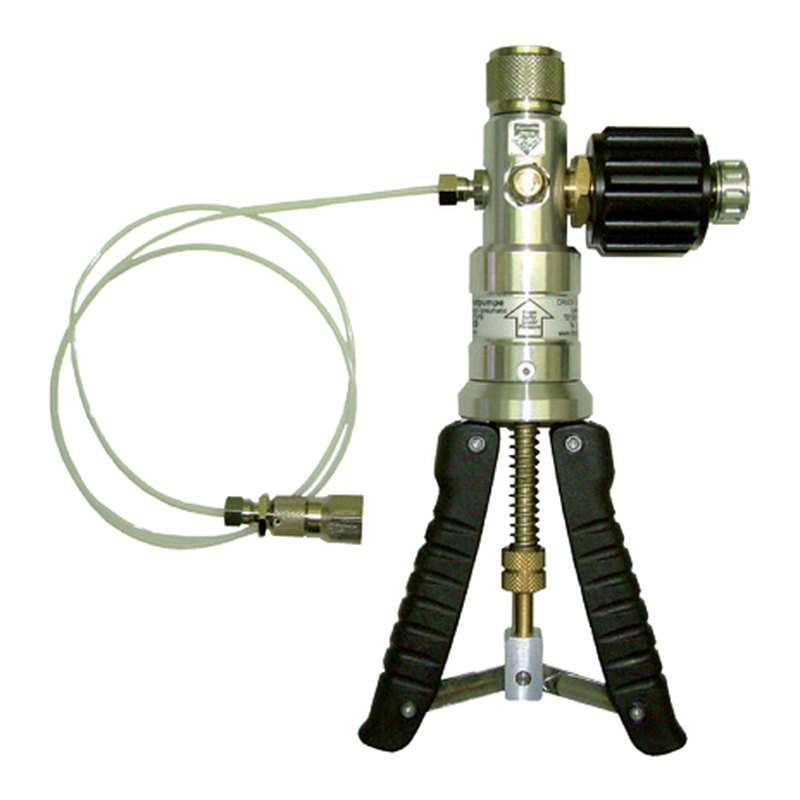

WIKA CPP30 pneumatic hand test pump, −0.95 to +35 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1401 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPP30 |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Switchable pressure and vacuum generation | |
| Fine adjustment valve for exact test points | |
| Overpressure protection adjustable via knurled nut | |
| Reference instrument screws directly onto the pump; test item on a 0.5 m hose | |
| Compact and light (510 g) |
Applications
| Testing and calibration of low-pressure gauges, switches and transmitters on site |
Key specifications
| Pressure range | −0.95 to +35 bar (−28 inHg to 500 psi) |
|---|---|
| Medium | Air |
| Test connections | G ½ female for reference, G ¼ female hose for test item |
| Operation | Hand pump, switchable pressure/vacuum |
Specification
| Pressure range | −0.95 to +35.0 bar (−28 inHg to +500 psi); achievable value depends on test volume |
|---|---|
| Pressure medium | Air |
| Reference connection | G ½ female, freely rotating (option: ¼ NPT female adapter) |
| Test item connection | Hose 0.5 m with G ¼ female, freely rotating |
| Fine adjustment | Fine adjustment valve |
| Overpressure protection | Adjustable via knurled nut |
| Material | Chrome-plated brass, anodised aluminium, high-strength plastic |
| Dimensions (L × W × H) | 220 × 105 × 63 mm |
| Weight | 510 g |
| Approvals | EAC (machinery directive); MTSCHS Kazakhstan |
Scope of delivery
| Included | CPP30 pump, 0.5 m test item hose with G ¼ female adapter, operating instructions |
|---|---|
| Accessories | Calibration case, BSP adapter set, maintenance set, spare hose |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPP30 is a compact pneumatic hand pump that generates test pressures from −0.95 bar vacuum up to +35 bar (500 psi), switchable between pressure and vacuum. A fine adjustment valve sets each test point, and the reference instrument screws directly onto the pump while the instrument under test connects through a 0.5 m hose.
At 510 g it is easy to carry for on-site checks of pressure gauges, switches and transmitters.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
