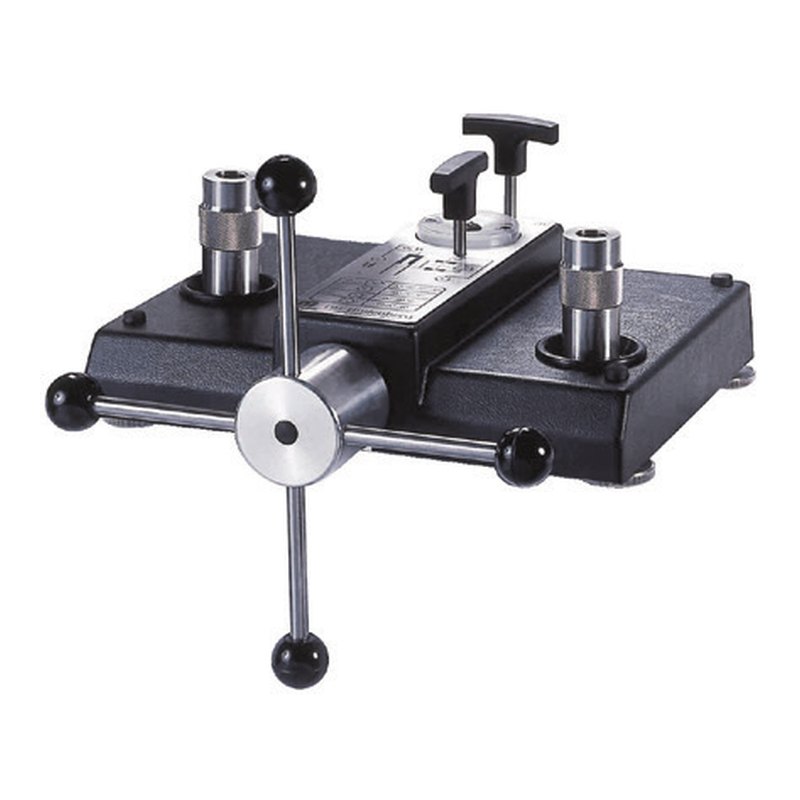

WIKA CPP4000-X hydraulic comparison test pump, 0–4000 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1402 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPP4000-X |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Dual-area spindle pump for filling, pressure generation and fine adjustment | |
| Same base as the CPB3800HP dead-weight tester | |
| Spindle runs inside the pump body | dimensions do not change in use |
|---|---|
| Compact, low weight (13.5 kg), robust ABS base | |
Applications
| High-pressure hydraulic calibration of gauges and transmitters up to 4,000 bar |
Key specifications
| Pressure range | 0 to 4,000 bar |
|---|---|
| Medium | VG22 mineral oil or sebacate oil |
| Test connections | 2 × G ½ B female union nut with metal cone, M16 × 1.5 adapters |
| Operation | Dual-area spindle pump |
Specification
| Pressure range | 0 to 4,000 bar |
|---|---|
| Pressure medium | Hydraulic fluid based on VG22 mineral oil, or sebacate oil (option) |
| Reservoir | 170 cm³ |
| Test connections | 2 × G ½ B female union nut with metal cone; two M16 × 1.5 thread adapters as standard |
| Distance between test connections | 290 mm |
| Low-pressure piston diameter | 31.2 mm |
| High-pressure piston diameter | 6.35 mm |
| Displacement | approx. 5 cm³ |
| Wetted parts | Austenitic stainless steel, high-tensile brass, nitrile rubber |
| Operating temperature | 0 to 40 °C |
| Dimensions (W × D × H) | 401 × 397 × 155 mm |
| Weight | 13.5 kg |
| CE | Pressure Equipment Directive 97/23/EC (PS > 1,000 bar, module A) |
Scope of delivery and accessories
| Included | Instrument base, dual-area spindle pump, two test connections, two M16 × 1.5 adapters, 0.5 l VG22 mineral oil, tool and maintenance set |
|---|---|
| Accessories | Adapters M16 × 1.5, M20 × 1.5, 9/16-18 UNF (hardened stainless steel), G ½ female (max. 1,600 bar); sebacate oil; storage case |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPP4000-X is a hydraulic comparison test pump for calibrating pressure gauges and transmitters up to 4,000 bar against a reference instrument. A dual-area spindle pump fills the system and then builds and fine-tunes the pressure; the two G ½ ports use metal-cone union nuts with M16 × 1.5 adapters supplied.
It runs on VG22 mineral oil or optional sebacate oil and weighs 13.5 kg, compact enough to take to site.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
