WIKA CPP7000-X hydraulic comparison test pump, 0–7000 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1403 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPP7000-X |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Smooth-running internal precision spindle for fine control even at very high pressure | |
| Integrated priming pump and 250 cm³ reservoir to fill large test volumes | |
| Freely rotating, exchangeable test connections | |
| Stainless steel cylinder and hardened stainless steel piston | |
| Proven CPB5800 pressure balance base |
Applications
| Very high-pressure calibration of gauges, transmitters and pressure sensors up to 7,000 bar |
Key specifications
| Pressure range | 0 to 7,000 bar (0 to 100,000 psi) |
|---|---|
| Medium | Sebacate oil |
| Test connections | 2 × M16 × 1.5 male, freely rotating, sealing cone |
| Operation | Priming pump + precision spindle |
Specification
| Pressure range | 0 to 7,000 bar (0 to 100,000 psi) |
|---|---|
| Pressure medium | Sebacate oil |
| Reservoir | 250 cm³ |
| Test connections | 2 × M16 × 1.5 male, freely rotating, exchangeable, with sealing cone |
| Distance between test connections | 346 mm |
| Piston diameter | 7.5 mm |
| Swept volume | approx. 0.08 cm³ per revolution; approx. 2.5 cm³ total |
| Required force | 1.5 Nm at 250 bar; 6.0 Nm at 1,000 bar; 18 Nm at 3,000 bar; 30 Nm at 5,000 bar; 42 Nm at 7,000 bar |
| Cylinder / piston | Stainless steel / hardened stainless steel |
| Piping | 1.4404 stainless steel, 6 × 2 mm |
| Seals | NBR |
| Dimensions (L × W × H) | 460 × 445 × 265 mm |
| Weight | 32.5 kg |
| Approvals | EAC (pressure equipment and machinery directives) |
Scope of delivery and accessories
| Included | Priming pump, spindle pump for pressure generation and fine adjustment, two M16 × 1.5 test connections, operating instructions |
|---|---|
| Accessories | Adapters M16 × 1.5, M20 × 1.5, 9/16-18 UNF (hardened stainless steel), G ½ female (max. 1,600 bar); sebacate oil 0.5 l |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

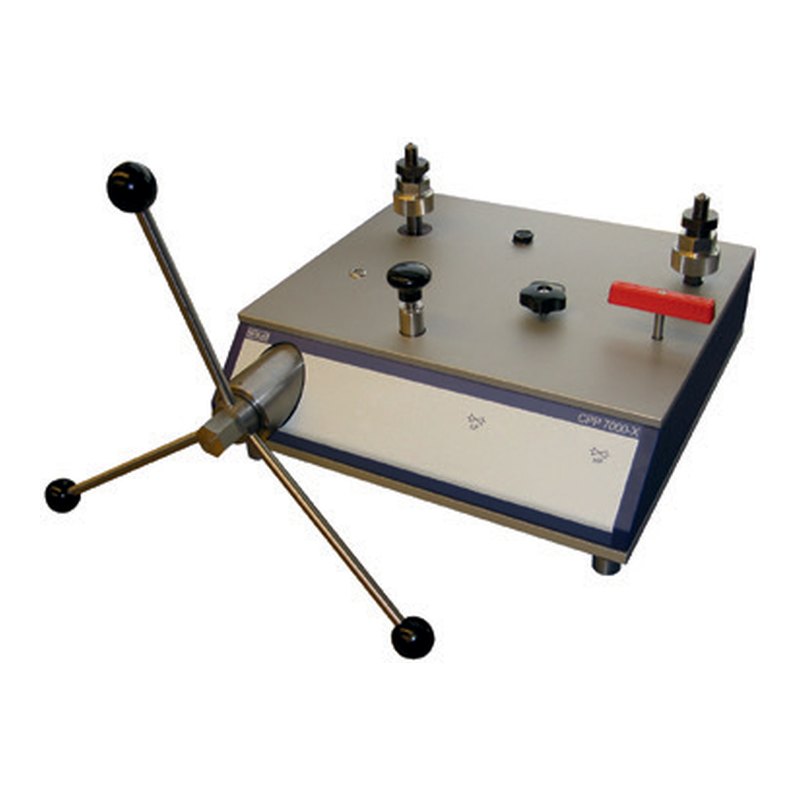

Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPP7000-X is a hydraulic comparison test pump that generates up to 7,000 bar (100,000 psi) for calibrating very high-pressure gauges and transmitters against a reference. An integrated priming pump fills the system from a 250 cm³ sebacate oil reservoir, and a smooth internal spindle with a hardened stainless steel piston sets the pressure finely.
The two M16 × 1.5 cone-seal test connections rotate freely, and adapters for M20 × 1.5, 9/16-18 UNF and G ½ are available.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
