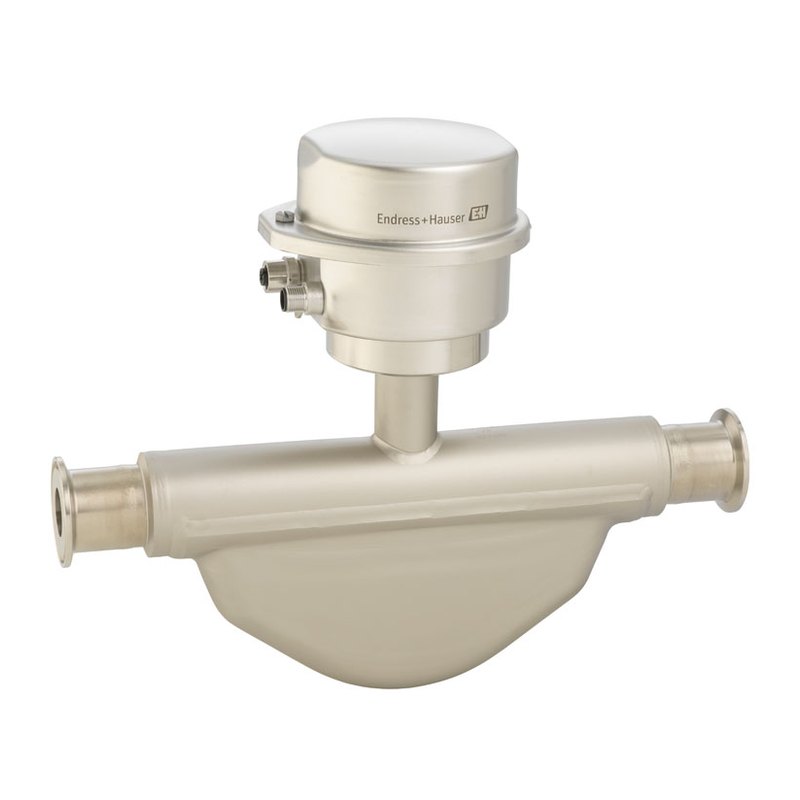

Endress+Hauser Proline Promass E 100 Coriolis flowmeter, DN 8–80
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Modbus, PROFIBUS, RS-485, Pulse / frequency
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1404 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Endress+Hauser |
| Model | Proline Promass E 100 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Modbus, PROFIBUS, RS-485, Pulse / frequency |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Compact dual-tube sensor with ultra-compact transmitter | |
| Measures liquids and gases independent of temperature, pressure, viscosity, conductivity and flow profile | |
| Operable flow range over 1000 | 1 |
|---|---|
| Heartbeat Technology self-verification | |
| Sensor housing filled with dry nitrogen acts as secondary containment; optional rupture disk | |
Applications
| Mass, volume and density measurement of liquids and gases in standard process applications |
Outputs and power
| Current output | 4–20 mA HART (active), load 0–700 Ω, HART 7 |
|---|---|
| Pulse/frequency/switch | Passive open collector, max. 30 V DC / 25 mA, up to 10,000 Hz |
| Fieldbus options | Modbus RS485 (also intrinsically safe via Safety Barrier Promass 100), PROFIBUS DP, PROFINET, EtherNet/IP |
| Supply voltage | 20 to 30 V DC |
| Power consumption | 3.5 W max. |
| Local display | Optional 4-line illuminated LCD (HART, PROFIBUS DP, PROFINET, EtherNet/IP versions) |
Construction
| Measuring tubes | Stainless steel 1.4539 (904L) |
|---|---|
| Process connections | Stainless steel 1.4404 (316/316L): EN 1092-1, ASME B16.5, JIS B2220 flanges; DIN 11864 flanges; Tri-Clamp; DIN 11851, SMS 1145, ISO 2853 threads; VCO |
| Sensor housing | Stainless steel 1.4301 (304) |
| Transmitter housing | Aluminium AlSi10Mg coated, or stainless 1.4301 hygienic |
| Weight (PN 40 flanges) | 4.5 kg (DN 8) to 29 kg (DN 80) |
Key specifications
| Measured variables | Mass flow, density, temperature (volume, corrected volume, reference density calculated) |
|---|---|
| Line size | DN 8 to 80 (⅜ to 3 in) |
| Accuracy | ±0.15% o.r. mass/volume flow (±0.10% option); ±0.35% gas |
| Output | 4–20 mA HART + pulse/frequency/switch, Modbus RS485, PROFIBUS DP, PROFINET, EtherNet/IP |
| Medium temperature | −40 to +150 °C |
| Approvals | ATEX / IECEx Ex ia, Ex nA; cCSAus IS/NI |
Measuring range (liquids, full scale)
| DN 8 (⅜ in) | 0 to 2,000 kg/h |
|---|---|
| DN 15 (½ in) | 0 to 6,500 kg/h |
| DN 25 (1 in) | 0 to 18,000 kg/h |
| DN 40 (1½ in) | 0 to 45,000 kg/h |
| DN 50 (2 in) | 0 to 70,000 kg/h |
| DN 80 (3 in) | 0 to 180,000 kg/h |
| Gases | Full scale depends on gas density (sizing tool) |
Performance
| Mass/volume flow (liquids) | ±0.15% o.r.; ±0.10% o.r. with calibration option (mass flow) |
|---|---|
| Mass flow (gases) | ±0.35% o.r. |
| Density (liquids) | ±0.0005 g/cm³ (reference conditions); ±0.02 g/cm³ standard density calibration |
| Repeatability, flow (liquids) | ±0.075% o.r. (±0.05% with calibration option) |
| Repeatability, gas | ±0.35% o.r. |
| Repeatability, density | ±0.00025 g/cm³ |
| Temperature | ±0.25 °C ± 0.0025·T °C (repeatability) |
| Ambient temperature effect | max. ±0.005% o.r./°C (current output) |
Process and environment
| Medium temperature | −40 to +150 °C |
|---|---|
| Pressure rating | Up to PN 100 / ASME Class 600 (by flange) |
| Secondary containment | Nitrogen-filled sensor housing, reference load 16 bar; optional rupture disk 10–15 bar |
| Ambient temperature | −40 to +60 °C (−50 °C option) |
| Storage temperature | −40 to +80 °C |
| Degree of protection | IP66/67, Type 4X; IP69 option |
| Vibration | IEC 60068-2-6 and -2-64 |
Approvals
| ATEX / IECEx | Ex ia IIC/IIB T6…T1 Gb, Ga/Gb; Ex tb IIIC; Ex nA IIC Gc |
|---|---|
| cCSAus | IS Class I, II, III Div. 1; NI Class I Div. 2 |
| Hygienic | 3-A and EHEDG versions available |
| Pressure Equipment Directive | PED version available (> DN 25) |
| Communication | HART 7, PROFIBUS certified |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Endress+Hauser, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Endress+Hauser Proline Promass E 100 is a dual-tube Coriolis flowmeter with an ultra-compact transmitter for liquids and gases. It measures mass flow, density and temperature directly and calculates volume and corrected volume flow, in line sizes DN 8 to 80 with liquid full-scale values from 2,000 to 180,000 kg/h and an operable range above 1000 : 1.
Accuracy is ±0.15% of reading for liquid flow (±0.10% with the calibration option) and ±0.35% for gas. It has 904L measuring tubes and 316L process connections, handles −40 to +150 °C medium and up to PN 100 / Class 600, offers HART, Modbus, PROFIBUS, PROFINET or EtherNet/IP outputs, and is available with ATEX/IECEx Ex ia approvals.
Argonmark Ltd supplies Endress+Hauser instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
