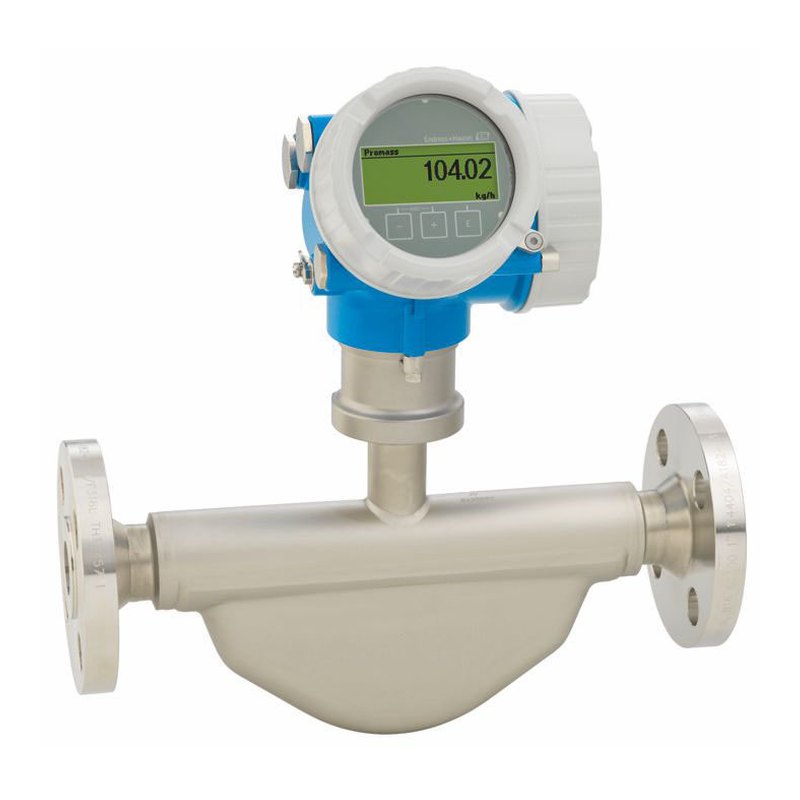

Endress+Hauser Proline Promass E 200 loop-powered Coriolis flowmeter, DN 8–50
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Foundation Fieldbus, PROFIBUS, Pulse / frequency
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1405 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Endress+Hauser |
| Model | Proline Promass E 200 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Foundation Fieldbus, PROFIBUS, Pulse / frequency |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Genuine loop-powered (two-wire) Coriolis meter for easy integration into existing 4–20 mA loops | |
| Dual-tube sensor with no internal seals; operable flow range over 1000 : 1 | |
| Can read in external pressure for corrected volume flow of gases | |
| Developed to IEC 61508 | SIL 2 single-channel, SIL 3 redundant, TÜV certified |
|---|---|
| Nitrogen-filled secondary containment; optional rupture disk | |
Applications
| Flow, density and temperature measurement in loop-powered and hazardous-area installations |
Outputs and power
| Current outputs | 4–20 mA HART (passive); option 2nd 4–20 mA (passive) |
|---|---|
| Other outputs | Pulse/frequency/switch output option |
| Fieldbus options | PROFIBUS PA, FOUNDATION Fieldbus (32 V DC nominal) |
| Supply (loop) | Terminal voltage ≥ 17.9 V at 4 mA, ≥ 13.5 V at 20 mA; max. 35 V DC (HART) |
Construction
| Measuring tubes | Stainless steel 1.4539 (904L) |
|---|---|
| Process connections | Stainless steel 1.4404 (316/316L): EN 1092-1, ASME B16.5, JIS B2220 flanges; DIN 11864 flange; Tri-Clamp; threads |
| Transmitter housing | Aluminium AlSi10Mg coated, glass window |
| Weight (PN 40 flanges) | 5 kg (DN 8) to 16 kg (DN 50) |
Key specifications
| Measured variables | Mass flow, density, temperature (volume, corrected volume, reference density calculated) |
|---|---|
| Line size | DN 8 to 50 (⅜ to 2 in) |
| Accuracy | ±0.25% o.r. liquid flow; ±0.75% o.r. gas |
| Output | Two-wire 4–20 mA HART (+ pulse/frequency/switch or 2nd 4–20 mA), PROFIBUS PA, FOUNDATION Fieldbus |
| Medium temperature | −40 to +150 °C |
| Approvals | ATEX/IECEx Ex d[ia], Ex ia, Ex nA; cCSAus; SIL 2/3 |
Measuring range (liquids, full scale)
| DN 8 (⅜ in) | 0 to 2,000 kg/h |
|---|---|
| DN 15 (½ in) | 0 to 6,500 kg/h |
| DN 25 (1 in) | 0 to 18,000 kg/h |
| DN 40 (1½ in) | 0 to 45,000 kg/h |
| DN 50 (2 in) | 0 to 70,000 kg/h |
| Gases | Full scale depends on gas density |
Performance
| Mass/volume flow (liquids) | ±0.25% o.r. |
|---|---|
| Mass flow (gases) | ±0.75% o.r. |
| Repeatability, flow (liquids) | ±0.125% o.r. |
| Repeatability, gas | ±0.35% o.r. |
| Repeatability, density | ±0.00025 g/cm³ |
| Temperature repeatability | ±0.25 °C ± 0.0025·T °C |
| Density range | 0 to 2,000 kg/m³ |
Process and environment
| Medium temperature | −40 to +150 °C, no internal seals |
|---|---|
| Pressure rating | Up to PN 100 / ASME Class 600 (by flange) |
| Secondary containment | Nitrogen-filled, reference load 16 bar; optional rupture disk |
| Ambient temperature | −40 to +60 °C (display readable −20 to +60 °C) |
| Storage temperature | −40 to +80 °C |
| Degree of protection | IP66/67, Type 4X (transmitter and sensor) |
Approvals
| ATEX / IECEx | Ex d[ia] IIC T6…T1 Gb, Ga/Gb; Ex ia IIC T6…T1; Ex tb IIIC; Ex nA IIC Gc |
|---|---|
| cCSAus | Class I, II, III Div. 1 Groups A–G; Class I Div. 2 |
| Functional safety | SIL 2 (single channel) / SIL 3 (redundant), IEC 61508, TÜV certified |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Endress+Hauser, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Endress+Hauser Proline Promass E 200 is a loop-powered Coriolis flowmeter: it runs from the two-wire 4–20 mA HART loop, which makes it easy to fit into existing installations and hazardous areas. It measures mass flow, density and temperature of liquids and gases in DN 8 to 50, with full-scale values from 2,000 to 70,000 kg/h.
Accuracy is ±0.25% of reading for liquids and ±0.75% for gases. The sensor has 904L tubes and no internal seals, handles −40 to +150 °C, and the device carries ATEX/IECEx Ex d[ia] and Ex ia approvals and is certified for SIL 2/3 flow monitoring.
Argonmark Ltd supplies Endress+Hauser instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
