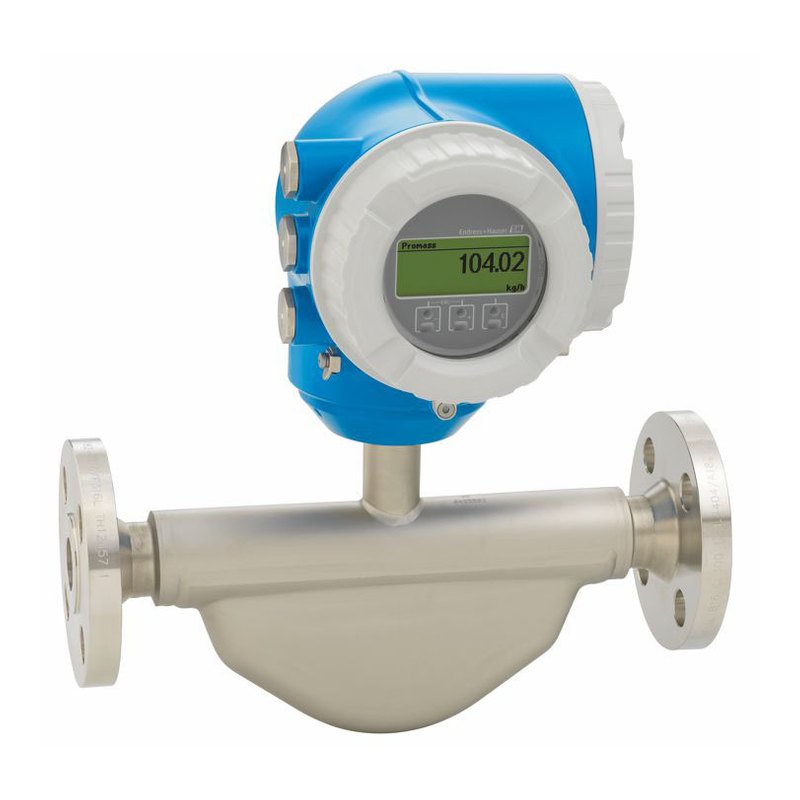

Endress+Hauser Proline Promass E 300 Coriolis flowmeter, compact, DN 8–80
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Modbus, Foundation Fieldbus, PROFIBUS, RS-485
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1406 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Endress+Hauser |
| Model | Proline Promass E 300 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Modbus, Foundation Fieldbus, PROFIBUS, RS-485 |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Compact transmitter with local display, WLAN access and integrated web server | |
| Freely combinable inputs/outputs and wide choice of fieldbuses | |
| Heartbeat Technology verification; HistoROM backup keeps configuration when modules are replaced | |
| Operable flow range over 1000 | 1; can read in external pressure, temperature or reference density |
|---|---|
| SIL 2/3 (IEC 61508, TÜV) | |
Applications
| Mass, volume, density and concentration measurement of liquids and gases in process plants |
Outputs and power
| Current output | 4–20 mA HART, active or passive (Ex i passive), load 250–700 Ω |
|---|---|
| Fieldbus options | PROFIBUS DP, PROFIBUS PA (Ex i), FOUNDATION Fieldbus (Ex i), Modbus RS485, EtherNet/IP and PROFINET with 2-port switch |
| Supply voltage | 24 V DC ±20%, or 100–240 V AC −15…+10% 50/60 Hz |
Construction
| Measuring tubes | Stainless steel 1.4539 (904L) |
|---|---|
| Process connections | Stainless steel 316L: EN 1092-1, ASME B16.5, JIS B2220 flanges; hygienic flanges, clamps and threads |
| Transmitter housing | Aluminium AlSi10Mg coated, or stainless steel 1.4404 (316L) hygienic |
Key specifications
| Measured variables | Mass flow, density, temperature (volume, corrected volume, reference density calculated) |
|---|---|
| Line size | DN 8 to 80 (⅜ to 3 in) |
| Accuracy | ±0.15% o.r. liquid flow (±0.10% option); ±0.75% o.r. gas |
| Output | 4–20 mA HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, EtherNet/IP, PROFINET |
| Medium temperature | −40 to +150 °C |
| Approvals | ATEX/IECEx Ex db ia, Ex nA; cCSAus; SIL 2/3 |
Measuring range (liquids, full scale)
| DN 8 (⅜ in) | 0 to 2,000 kg/h |
|---|---|
| DN 15 (½ in) | 0 to 6,500 kg/h |
| DN 25 (1 in) | 0 to 18,000 kg/h |
| DN 40 (1½ in) | 0 to 45,000 kg/h |
| DN 50 (2 in) | 0 to 70,000 kg/h |
| DN 80 (3 in) | 0 to 180,000 kg/h |
Performance
| Mass/volume flow (liquids) | ±0.15% o.r.; ±0.10% o.r. with calibration option (mass flow) |
|---|---|
| Mass flow (gases) | ±0.75% o.r. |
| Repeatability, flow (liquids) | ±0.075% o.r. (±0.05% option) |
| Repeatability, gas | ±0.35% o.r. |
| Repeatability, density | ±0.00025 g/cm³ |
Process and environment
| Medium temperature | −40 to +150 °C |
|---|---|
| Pressure rating | Up to PN 100 / ASME Class 600 (by flange) |
| Ambient temperature | −40 to +60 °C (−50 °C option); display readable −20 to +60 °C |
| Storage temperature | −50 to +80 °C |
| Degree of protection | IP66/67, Type 4X; IP69 option |
| Shock | 50 g, 6 ms (IEC 60068-2-27) |
Approvals
| ATEX / IECEx | Ex db ia, Ex db eb ia IIC/IIB T6…T1 Gb, Ga/Gb (Zone 0 in tube); Ex tb IIIC; Ex nA IIC Gc |
|---|---|
| North America | Class I Zone 1 AEx/Ex d ia; Zone 2 Ex nA; Division 1/2 versions |
| Functional safety | SIL 2 / SIL 3, IEC 61508, TÜV |
| Communication | HART, PROFIBUS, FOUNDATION Fieldbus, EtherNet/IP (ODVA) certified |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Endress+Hauser, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Endress+Hauser Proline Promass E 300 is a dual-tube Coriolis flowmeter with a compact Proline 300 transmitter. It measures mass flow, density and temperature in DN 8 to 80 with liquid full-scale values up to 180,000 kg/h, and offers ±0.15% of reading for liquids (±0.10% with the calibration option) and ±0.75% for gases.
The transmitter combines a local display with WLAN and a web server, freely combinable outputs including 4–20 mA HART, PROFIBUS, FOUNDATION Fieldbus, Modbus, EtherNet/IP and PROFINET, and runs on 24 V DC or 100–240 V AC. It is approved for hazardous areas (ATEX/IECEx Ex db ia) and SIL 2/3.
Argonmark Ltd supplies Endress+Hauser instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
