Endress+Hauser Proline Promass F 100 high-accuracy Coriolis flowmeter, DN 8–250
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Modbus, PROFIBUS, RS-485, Pulse / frequency
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1408 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Endress+Hauser |
| Model | Proline Promass F 100 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Modbus, PROFIBUS, RS-485, Pulse / frequency |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| High-accuracy dual-tube sensor for liquids and gases | |
| PremiumCal calibration option for ±0.05% of reading | |
| Ultra-compact Proline 100 transmitter | |
| Wetted parts in 904L/316L stainless steel or Alloy C22 | |
| Pressure-rated secondary containment; purge connection option | |
| Operable flow range over 1000 | 1 |
|---|---|
Applications
| High-accuracy mass and density measurement of liquids and gases, including custody-type and batching duties |
Outputs and power
| Current output | 4–20 mA HART (active) |
|---|---|
| Pulse/frequency/switch | Passive open collector |
| Fieldbus options | Modbus RS485 (also intrinsically safe via Safety Barrier Promass 100), PROFIBUS DP, PROFINET, EtherNet/IP |
| Supply voltage | 20 to 30 V DC |
Construction
| Measuring tubes | Stainless steel 1.4539 (904L) / 1.4404, or Alloy C22 (2.4602) |
|---|---|
| Process connections | Stainless steel 316L or Alloy C22: EN 1092-1, ASME B16.5, JIS flanges and others |
| Weight (PN 40 flanges) | 9 kg (DN 8) to 28 kg (DN 50); larger sizes heavier |
Key specifications
| Measured variables | Mass flow, density, temperature (volume, corrected volume, reference density calculated) |
|---|---|
| Line size | DN 8 to 250 (⅜ to 10 in) |
| Accuracy | ±0.10% o.r. liquid flow (±0.05% PremiumCal); ±0.35% o.r. gas |
| Output | 4–20 mA HART + pulse/frequency/switch, Modbus RS485, PROFIBUS DP, PROFINET, EtherNet/IP |
| Medium temperature | −50 to +150 °C (extended version to +240 °C) |
| Approvals | ATEX/IECEx Ex ia, Ex nA; cCSAus IS/NI |
Measuring range (liquids, full scale)
| DN 8 (⅜ in) | 0 to 2,000 kg/h |
|---|---|
| DN 15 (½ in) | 0 to 6,500 kg/h |
| DN 25 (1 in) | 0 to 18,000 kg/h |
| DN 40 (1½ in) | 0 to 45,000 kg/h |
| DN 50 (2 in) | 0 to 70,000 kg/h |
| DN 80 (3 in) | 0 to 180,000 kg/h |
| DN 100 (4 in) | 0 to 350,000 kg/h |
| DN 150 (6 in) | 0 to 800,000 kg/h |
| DN 250 (10 in) | 0 to 2,200,000 kg/h |
Performance
| Mass/volume flow (liquids) | ±0.10% o.r.; ±0.05% o.r. with PremiumCal (mass flow) |
|---|---|
| Mass flow (gases) | ±0.35% o.r. |
| Repeatability, flow (liquids) | ±0.05% o.r. (±0.025% PremiumCal) |
| Repeatability, gas | ±0.25% o.r. |
| Repeatability, density | ±0.00025 g/cm³ |
| Temperature repeatability | ±0.25 °C ± 0.0025·T °C |
Process and environment
| Medium temperature, standard | −50 to +150 °C |
|---|---|
| Medium temperature, extended | −50 to +240 °C |
| Pressure rating | Up to PN 100 (EN 1092-1), ASME classes by flange |
| Ambient temperature | −40 to +60 °C (−50 °C option) |
| Storage temperature | −40 to +80 °C |
| Degree of protection | IP66/67, Type 4X; IP69 option |
Approvals
| ATEX / IECEx | Ex ia IIC/IIB T6…T1 Gb, Ga/Gb; Ex tb IIIC; Ex nA IIC Gc |
|---|---|
| cCSAus | IS Class I Div. 1 Groups ABCD, Class II/III; NI Class I Div. 2 |
| Communication | HART, PROFIBUS, EtherNet/IP (ODVA), Modbus certified |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

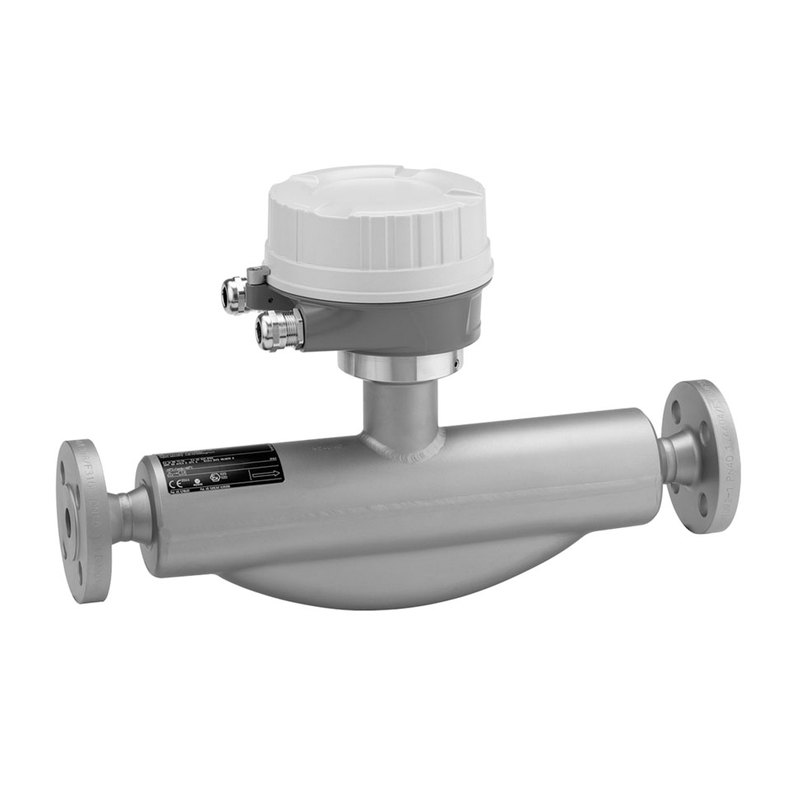

Photo: courtesy of Endress+Hauser, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Endress+Hauser Proline Promass F 100 is a high-accuracy dual-tube Coriolis flowmeter for liquids and gases in line sizes from DN 8 to DN 250, with liquid full-scale values from 2,000 kg/h up to 2,200,000 kg/h. Base accuracy is ±0.10% of reading for liquids, or ±0.05% with PremiumCal, and ±0.35% for gases.
Wetted parts are 904L/316L stainless steel or Alloy C22, the standard version covers −50 to +150 °C (extended version to +240 °C), and the ultra-compact transmitter offers 4–20 mA HART with pulse output, Modbus, PROFIBUS DP, PROFINET or EtherNet/IP, with ATEX/IECEx Ex ia approval.
Argonmark Ltd supplies Endress+Hauser instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
