Endress+Hauser Proline Promass F 300 high-accuracy Coriolis flowmeter, DN 8–250
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Modbus, Foundation Fieldbus, PROFIBUS, RS-485
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1409 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Endress+Hauser |
| Model | Proline Promass F 300 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Modbus, Foundation Fieldbus, PROFIBUS, RS-485 |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| High-accuracy dual-tube sensor with compact Proline 300 transmitter | |
| PremiumCal option for ±0.05% of reading | |
| Low-temperature (−196 °C), extended (+240 °C) and high-temperature (+350 °C) versions | |
| Local display, WLAN, web server and freely combinable I/Os | |
| Heartbeat Technology; SIL 2/3 |
Applications
| High-accuracy mass, volume and density measurement of liquids, gases and cryogenic liquids |
Outputs and power
| Current output | 4–20 mA HART, active or passive (Ex i option) |
|---|---|
| Fieldbus options | PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, EtherNet/IP and PROFINET (2-port switch) |
| Supply voltage | 24 V DC ±20%, or 100–240 V AC −15…+10% 50/60 Hz |
Construction
| Measuring tubes | Stainless steel 904L / 316L, or Alloy C22 |
|---|---|
| Process connections | Stainless steel or Alloy C22 flanges (EN, ASME, JIS) and others |
Key specifications
| Measured variables | Mass flow, density, temperature (volume, corrected volume, reference density calculated) |
|---|---|
| Line size | DN 8 to 250 (⅜ to 10 in) |
| Accuracy | ±0.10% o.r. liquid flow (±0.05% PremiumCal); ±0.35% o.r. gas and cryogenic |
| Output | 4–20 mA HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, EtherNet/IP, PROFINET |
| Medium temperature | −50 to +150 °C standard; −196 °C to +350 °C special versions |
| Approvals | ATEX/IECEx Ex db ia, Ex nA; North America Zone 1/2; SIL 2/3 |
Measuring range (liquids, full scale)
| DN 8 to 80 | 2,000 to 180,000 kg/h |
|---|---|
| DN 100 (4 in) | 0 to 350,000 kg/h |
| DN 150 (6 in) | 0 to 800,000 kg/h |
| DN 250 (10 in) | 0 to 2,200,000 kg/h |
Performance
| Mass/volume flow (liquids) | ±0.10% o.r.; ±0.05% o.r. with PremiumCal (mass flow) |
|---|---|
| Mass flow (cryogenic liquids) | ±0.35% o.r. |
| Mass flow (gases) | ±0.35% o.r. |
Process and environment
| Standard version | −50 to +150 °C |
|---|---|
| Extended temperature version | −50 to +240 °C |
| High-temperature version | −50 to +350 °C (DN 25, 50, 80) |
| Low-temperature version | −196 to +150 °C |
| Pressure rating | Up to PN 100 (EN 1092-1), ASME classes by flange |
| Degree of protection | IP66/67, Type 4X |
Approvals
| ATEX / IECEx | Ex db ia, Ex db eb ia IIC/IIB T6…T1 Gb, Ga/Gb; Ex nA |
|---|---|
| North America | Class I Zone 1 AEx/Ex d ia; Zone 2 AEx/Ex nA |
| Functional safety | SIL 2 / SIL 3, IEC 61508 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

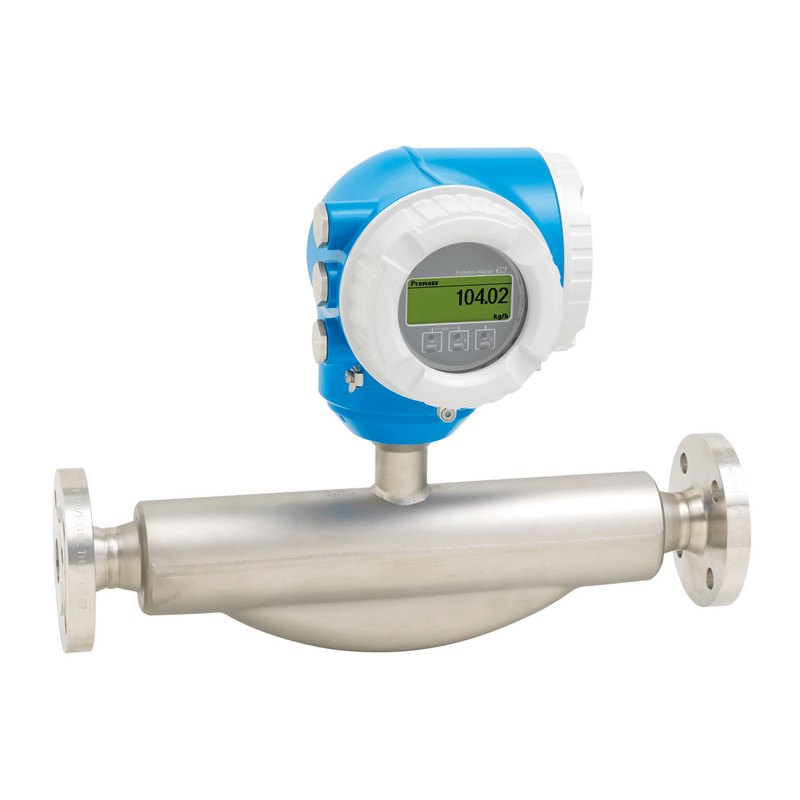

Photo: courtesy of Endress+Hauser, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Endress+Hauser Proline Promass F 300 pairs the high-accuracy Promass F dual-tube sensor with the compact Proline 300 transmitter. It covers DN 8 to DN 250, with ±0.10% of reading for liquids (±0.05% with PremiumCal) and ±0.35% for gases and cryogenic liquids.
Besides the standard −50 to +150 °C version there are extended (+240 °C), high-temperature (+350 °C) and low-temperature (−196 °C) versions. The transmitter offers WLAN, a local display, 4–20 mA HART and all major fieldbuses, runs on 24 V DC or 100–240 V AC, and is approved Ex db ia and SIL 2/3.
Argonmark Ltd supplies Endress+Hauser instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
