Endress+Hauser Proline Promass G 100 high-pressure Coriolis flowmeter, DN 8–25
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Modbus, PROFIBUS, RS-485, Pulse / frequency
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1410 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Endress+Hauser |
| Model | Proline Promass G 100 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Modbus, PROFIBUS, RS-485, Pulse / frequency |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Coriolis meter for high process pressures with internal-thread (BSP) process connections | |
| Ultra-compact, robust transmitter with pre-configured M12 plug connector | |
| Rupture disc available | |
| Local display and integrated web server | |
| Operable flow range over 1000 | 1 |
|---|---|
Applications
| High-pressure liquid and gas measurement, e.g. chemical injection and hydraulic systems |
Outputs and power
| Current output | 4–20 mA HART (active), load 0–700 Ω |
|---|---|
| Pulse/frequency/switch | Passive open collector |
| Fieldbus options | Modbus RS485 (intrinsically safe via Safety Barrier Promass 100), PROFIBUS DP, EtherNet/IP |
| Supply voltage | 20 to 30 V DC |
Construction
| Measuring tubes | Stainless steel 1.4435 (316L) |
|---|---|
| Process connections | Stainless steel 1.4404 (316/316L) |
| Electrical connection | M20 × 1.5 cable gland or M12 × 1 plug (stainless 316L) |
Key specifications
| Measured variables | Mass flow, density, temperature (volume, corrected volume, reference density calculated) |
|---|---|
| Line size | DN 8 to 25 (⅜ to 1 in) |
| Accuracy | ±0.15% o.r. liquid flow; ±0.75% o.r. gas |
| Output | 4–20 mA HART + pulse/frequency/switch, Modbus RS485, PROFIBUS DP, EtherNet/IP |
| Process pressure | Up to 350 bar (5,080 psi) |
| Approvals | ATEX/IECEx Ex ia, Ex nA; cCSAus IS/NI |
Measuring range (liquids, full scale)
| DN 8 (⅜ in) | 0 to 2,000 kg/h |
|---|---|
| DN 15 (½ in) | 0 to 6,500 kg/h |
| DN 25 (1 in) | 0 to 18,000 kg/h |
| Gases | Full scale depends on gas density |
Performance
| Mass/volume flow (liquids) | ±0.15% o.r. |
|---|---|
| Mass flow (gases) | ±0.75% o.r. |
| Repeatability, flow (liquids) | ±0.075% o.r. |
| Repeatability, gas | ±0.35% o.r. |
| Density range | 0 to 5,000 kg/m³ |
Process and environment
| Medium temperature | −50 to +150 °C, no internal seals |
|---|---|
| Process pressure | Up to 350 bar (5,080 psi), depending on connection and temperature |
| Process connection | Cylindrical internal thread BSP (G) to ISO 228-1, and others |
| Ambient temperature | −40 to +60 °C (Ex ia version −50 °C option) |
| Degree of protection | IP66/67, Type 4X |
Approvals
| ATEX / IECEx | Ex ia IIC T6…T1 Gb, Ga/Gb; Ex tb IIIC; Ex nA IIC Gc |
|---|---|
| cCSAus | IS Class I Div. 1 Groups ABCD, Class II/III; NI Class I Div. 2 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

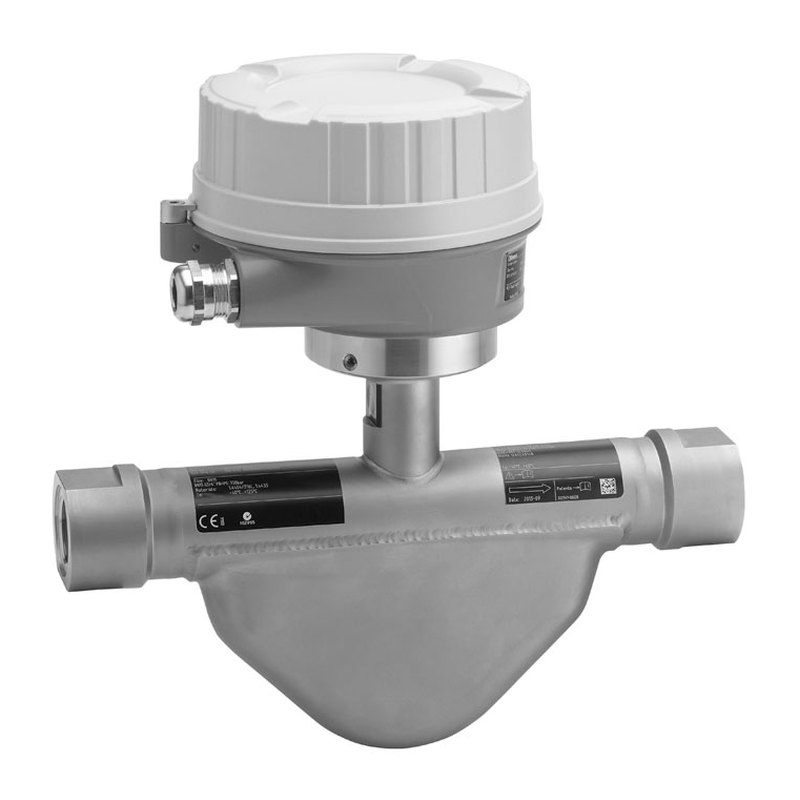

Photo: courtesy of Endress+Hauser, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Endress+Hauser Proline Promass G 100 is a Coriolis flowmeter for high process pressures, up to 350 bar, in small line sizes DN 8 to 25. It measures mass flow, density and temperature of liquids and gases with ±0.15% of reading for liquids and ±0.75% for gases, using 316L measuring tubes and internal-thread (BSP) process connections.
The ultra-compact transmitter can be wired with a pre-configured M12 plug and offers 4–20 mA HART with pulse output, Modbus RS485, PROFIBUS DP or EtherNet/IP, with ATEX/IECEx Ex ia approval.
Argonmark Ltd supplies Endress+Hauser instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
