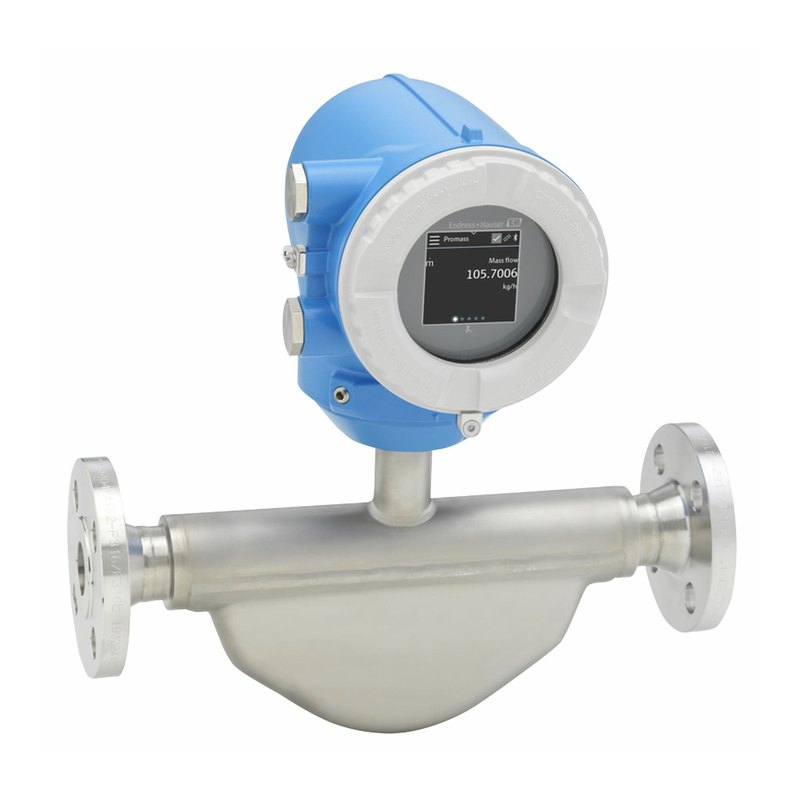

Endress+Hauser Proline Promass K 10 Coriolis flowmeter, DN 8–80
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART, Modbus, RS-485, Pulse / frequency
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1411 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Endress+Hauser |
| Model | Proline Promass K 10 |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART, Modbus, RS-485, Pulse / frequency |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Cost-efficient Coriolis meter for basic mass flow measuring tasks | |
| Compact dual-tube sensor, welded process connections without internal seals | |
| Operable flow range over 1000 | 1 |
|---|---|
| Heartbeat Verification + Monitoring application package | |
| CIP and SIP cleaning possible | |
Applications
| Elementary mass flow measuring tasks in process plants |
Outputs and power
| Output versions | 4–20 mA HART + pulse/frequency/switch; or Modbus RS485 + 4–20 mA; Ex i versions |
|---|---|
| Current output | Active or passive, NAMUR/US ranges, max. load 400 Ω, HART 7 |
| Supply voltage | 24 V DC (−20/+30%) or 100–240 V AC (−15/+10%) 50/60 Hz |
| Power consumption | max. 10 W |
Construction
| Measuring tubes | Stainless steel 1.4539 (904L), manifold 316L |
|---|---|
| Sensor housing | Stainless steel 1.4301 (304) |
| Transmitter housing | Aluminium AlSi10Mg coated, glass window |
| Process connections | Stainless 316L: EN 1092-1, ASME B16.5, JIS B2220 flanges; DIN 11864 flange; Tri-Clamp; DIN 11851, SMS, ISO 2853 threads |
Key specifications
| Measured variables | Mass flow (volume flow calculated; density with application package) |
|---|---|
| Line size | DN 8 to 80 (⅜ to 3 in) |
| Accuracy | ±0.5% o.r. liquids (±0.2% / ±0.15% calibration options); ±1% o.r. gas |
| Output | 4–20 mA HART + pulse/frequency/switch, or Modbus RS485 + 4–20 mA |
| Medium temperature | −40 to +150 °C |
| Approvals | ATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, JPN |
Measuring range (liquids, full scale)
| DN 8 (⅜ in) | 0 to 2,000 kg/h |
|---|---|
| DN 15 (½ in) | 0 to 6,500 kg/h |
| DN 25 (1 in) | 0 to 18,000 kg/h |
| DN 40 (1½ in) | 0 to 45,000 kg/h |
| DN 50 (2 in) | 0 to 70,000 kg/h |
| DN 80 (3 in) | 0 to 180,000 kg/h |
Performance
| Mass/volume flow (liquids) | ±0.5% o.r.; ±0.2% or ±0.15% with calibration options |
|---|---|
| Mass flow (gases) | ±1% o.r. |
| Density (application package EF) | ±0.0005 g/cm³ reference; ±0.02 g/cm³ standard calibration |
| Temperature | ±0.5 °C ± 0.005·T °C |
| Repeatability | ±0.1% o.r. liquids; ±0.5% o.r. gases |
| Zero point stability | 0.20 kg/h (DN 8) to 18.0 kg/h (DN 80) |
| Reference conditions | ISO 11631, water 15–45 °C, 2–6 bar, ISO 17025 rigs |
Process and environment
| Medium temperature | −40 to +150 °C |
|---|---|
| Density range | 0 to 5,000 kg/m³ |
| Pressure rating | Up to PN 100 (EN 1092-1 flanges, by temperature) |
| Ambient temperature | −40 to +60 °C (display readable −20 to +60 °C) |
| Degree of protection | IP66/67, Type 4X |
| EMC | IEC/EN 61326, NAMUR NE 21 |
Approvals
| Hazardous area | ATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, JPN |
|---|---|
| Pressure equipment | PED Cat. II/III, CRN |
| Communication | HART 7 (FieldComm Group) |
| Other | Radio approvals (WLAN); NAMUR NE 131, NE 132 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Endress+Hauser, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Endress+Hauser Proline Promass K 10 is a cost-efficient Coriolis flowmeter for basic mass flow duties. It covers DN 8 to 80 with liquid full-scale values up to 180,000 kg/h and an operable range above 1000 : 1, with ±0.5% of reading for liquids (±0.2% or ±0.15% with calibration options) and ±1% for gases.
It has 904L measuring tubes, welded process connections without internal seals, and handles −40 to +150 °C. Outputs are 4–20 mA HART with pulse/frequency/switch, or Modbus RS485 with 4–20 mA, on 24 V DC or 100–240 V AC, and it carries ATEX, IECEx and cCSAus approvals.
Argonmark Ltd supplies Endress+Hauser instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
