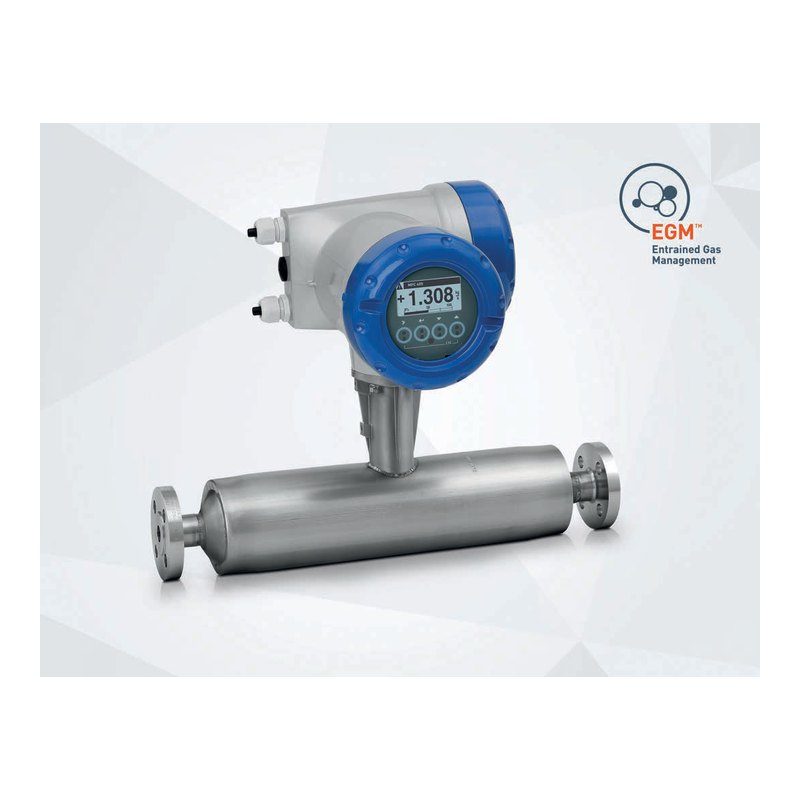

KROHNE OPTIMASS 1000 / 1400 twin straight-tube Coriolis mass flowmeter, DN 15–50
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1412 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | KROHNE |
| Model | OPTIMASS 1000 / 1400 |
| Technical | |
| Type | Flow |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Twin straight measuring tubes | easily drained and easy to clean |
|---|---|
| Fully welded, maintenance-free sensor; resistant to installation and process effects | |
| MFC 400 converter with diagnostics and Entrained Gas Management (EGM) | |
| Flanged and hygienic connections | |
| Optional secondary containment for early detection of tube failure with hazardous chemicals | |
Applications
| Cost-effective mass flow and density measurement of liquids and gases in standard process and hygienic applications |
Process and environment
| Process temperature | −40 to +130 °C (flanged and hygienic) |
|---|---|
| Measuring tube pressure | −1 to 100 barg (PED, cFMus, CRN/ASME B31.3) |
| Ambient temperature | −40 to +60 °C (aluminium converter); −40 to +55 °C (stainless); −40 to +65 °C (remote) |
Approvals
| ATEX (1400C) | II 1/2 G Ex db eb ia IIC T6–T1 Ga/Gb; Ex db ia; dust Ex tb ia IIIC |
|---|---|
| ATEX (1000F) | II 1 G Ex ia IIC T6–T1 Ga |
| cFMus | Class I Div 1 Groups A–D (US); Class II/III Div 1; Div 2 |
| Other | CE/UKCA, CRN (ASME B31.3), NACE MR0175 / ISO 15156 |
Key specifications
| Measured variables | Mass flow, density, temperature (volume, referred density, concentration calculated) |
|---|---|
| Line size | DN 15 to 50 (½ to 2 in) |
| Accuracy | ±0.15% of rate liquid; ±0.5% gas (± zero stability) |
| Converter | MFC 400 (compact) with modular I/O |
| Process temperature | −40 to +130 °C |
| Approvals | ATEX Ex db ia / Ex db eb ia; cFMus Class I Div 1/2; NACE MR0175 |
Performance
| Mass flow, liquid | ±0.15% of actual flow ± zero stability; repeatability better than 0.075% |
|---|---|
| Mass flow, gas | ±0.5% of actual flow ± zero stability; repeatability better than 0.2% |
| Zero stability | 0.65 kg/h (S15), 2.70 kg/h (S25), 8.00 kg/h (S40), 17.00 kg/h (S50) |
| Density range | 400 to 2,500 kg/m³ |
| Density accuracy | ±5 kg/m³ (S15), ±2 kg/m³ (S25–S50); on-site calibration better than ±0.5 kg/m³ |
| Temperature | ±1 °C |
| Reference conditions | Water, 20 °C, 1–6 barg, ISO/IEC 17025 accredited rig |
Flow rates
| Nominal flow (1 bar drop), S15 | 4,800 kg/h |
|---|---|
| S25 | 20,000 kg/h |
| S40 | 60,000 kg/h |
| S50 | 125,000 kg/h |
| Maximum flow | 130% of nominal |
Construction
| Measuring tubes | Duplex stainless steel UNS S31803 (1.4462) |
|---|---|
| Spigots / flanges | Stainless steel 316/316L dual certified |
| Outer cylinder | Stainless steel 304/304L |
| Flanges | DIN DN 15–100 PN 40–100; ASME ½–4 in Class 150–600; hygienic connections |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of KROHNE, used with permission (source) — background removed by Argonmark. All photo credits
Description
The KROHNE OPTIMASS 1000/1400 is a twin straight-tube Coriolis mass flowmeter for liquids and gases in sizes DN 15 to 50. It measures mass flow, density and temperature with ±0.15% of rate for liquids and ±0.5% for gases, and its straight tubes drain fully and are easy to clean.
The duplex stainless steel tubes are rated to 100 barg and −40 to +130 °C, with flanged or hygienic connections. The compact MFC 400 converter adds diagnostics and entrained gas management, and the meter carries ATEX, cFMus and NACE MR0175 approvals.
Argonmark Ltd supplies KROHNE instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
