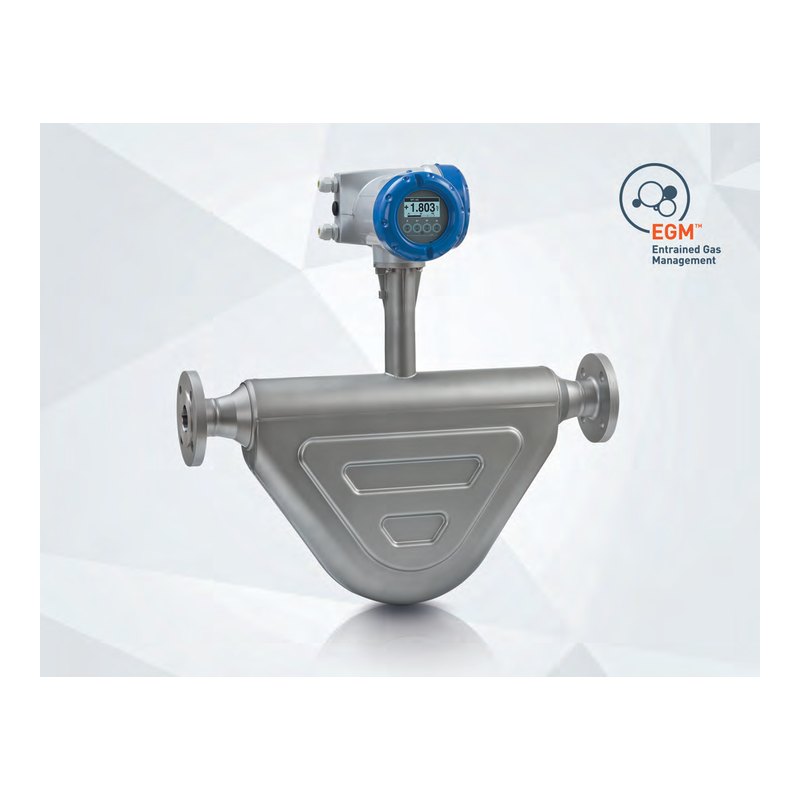

KROHNE OPTIMASS 6000 high-performance Coriolis mass flowmeter, DN 8–250, −200 to +400 °C
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1414 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | KROHNE |
| Model | OPTIMASS 6000 |
| Technical | |
| Type | Flow |
| Hazardous area | General purpose |
Datasheet
Technical features
| Twin V-shaped measuring tubes for liquids, gases and slurries; no inlet/outlet runs | |
| Cryogenic (−200 °C), standard (+230 °C) and high-temperature (+400 °C) versions | |
| Measuring tubes in 316L, Hastelloy C22 or duplex S31803 | |
| Custody transfer approvals and API/AGA compliance | |
| SIL 2/3 capable converter option |
Applications
| Demanding process, cryogenic (LNG) and high-temperature flow measurement | |
| Custody transfer of liquids and gases |
Process and environment
| Standard temperature range | −70 to +230 °C (safe area); −50 to +230 °C (hazardous area) |
|---|---|
| High temperature range | −50 to +400 °C (remote) |
| Cryogenic range | −200 to +40 °C |
| Measuring tube pressure | 316/316L: −1 to 100 barg; Hastelloy C22 / S31803: −1 to 200 barg |
| Fluids | Liquids, gases, slurries |
| Ambient temperature | −40 to +65 °C (standard converter) |
| Protection | IP67, NEMA 4X |
Approvals
| Custody transfer | MID MI-002 and MI-005; OIML R117-1, R137; API and AGA compliant |
|---|---|
| Functional safety | SIL 2 / SIL 3 (IEC 61508) |
| Materials | NACE MR0175 / ISO 15156, MR0103 |
| Other | CE, CRN (ASME B31.3) |
Key specifications
| Measured variables | Mass flow, density, temperature (volume, referred density, concentration calculated) |
|---|---|
| Line size | Sizes 08 to 250 |
| Accuracy | ±0.1% of rate liquid (±0.05% option); ±0.35% gas |
| Process temperature | −200 to +400 °C (by version) |
| Pressure | 100 barg (316L), 200 barg (Hastelloy C22 / duplex) |
| Approvals | MID MI-002/MI-005, OIML R117/R137, SIL 2/3, NACE |
Performance
| Mass flow, liquid (standard) | ±0.1% of rate (flow ≥ zero stability × 1000); repeatability better than 0.05% |
|---|---|
| Mass flow, liquid (optional) | ±0.05% of rate; repeatability better than 0.025% |
| Mass flow, gas | Better than 0.35% plus zero stability; repeatability better than 0.2% |
| Zero stability (standard temp.) | < 0.03 kg/h (size 08) to < 50 kg/h (size 250) |
| Density | 100 to 3,000 kg/m³; ±1 kg/m³ (±0.3 kg/m³ on-site calibration) |
| Temperature | ±0.5 °C ± 0.5% of reading |
Flow rates (1 bar drop)
| Size 08 / 10 / 15 | 600 / 1,200 / 3,800 kg/h |
|---|---|
| Size 25 / 50 / 80 | 19,000 / 35,000 / 78,000 kg/h |
| Size 100 / 150 | 175,000 / 320,000 kg/h |
| Size 200 / 250 | 550,000 / 1,000,000 kg/h |
| Maximum flow | 150% of nominal |
Construction
| Measuring tubes | 316/316L, duplex UNS S31803 or Hastelloy C22 |
|---|---|
| Outer casing | Stainless steel 316/316L |
| Flanges | DIN DN 10–300 PN 16–160; ASME ½–12 in Class 150–1500; JIS 10A–300A |
| Hygienic | Tri-clover, Tri-clamp, DIN 11864-2, DIN 11851, SMS |
| Options | Heating jacket |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of KROHNE, used with permission (source) — background removed by Argonmark. All photo credits
Description
The KROHNE OPTIMASS 6000 is a high-performance twin-tube Coriolis mass flowmeter for liquids, gases and slurries, from size 08 up to 250. It achieves ±0.1% of rate for liquids (±0.05% option) and better than 0.35% for gases, and measures density from 100 to 3,000 kg/m³.
Versions cover cryogenic service down to −200 °C, standard duty to +230 °C and high temperature to +400 °C, with 316L, duplex or Hastelloy C22 tubes rated up to 200 barg. It holds MID and OIML custody transfer approvals and SIL 2/3 capability.
Argonmark Ltd supplies KROHNE instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
