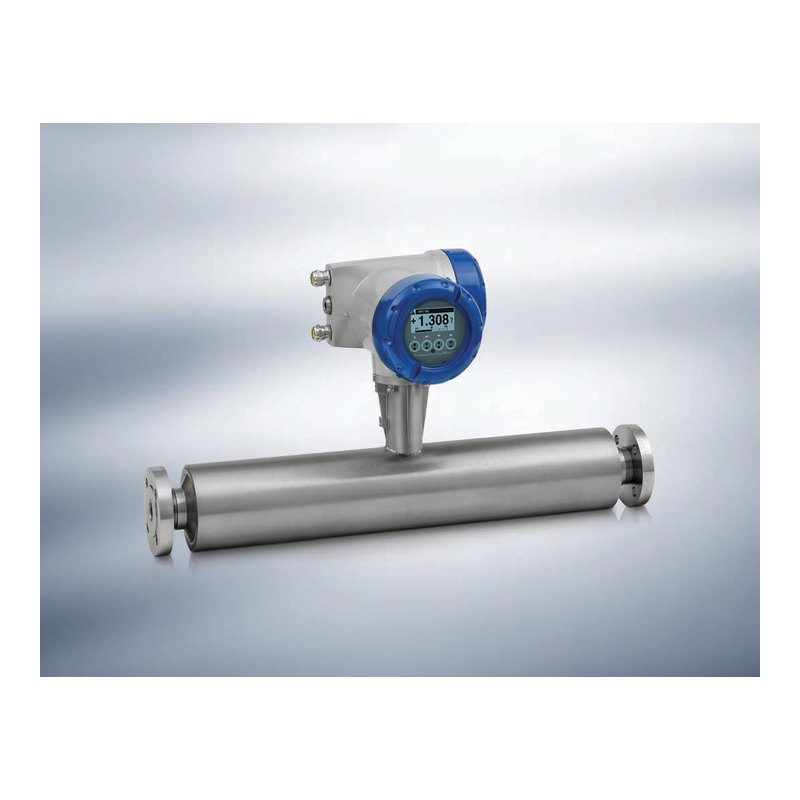

KROHNE OPTIMASS 7000 / 7400 single straight-tube Coriolis mass flowmeter, DN 06–80
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1415 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | KROHNE |
| Model | OPTIMASS 7000 / 7400 |
| Technical | |
| Type | Flow |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Single straight measuring tube | easily drained, easy to clean, low pressure drop |
|---|---|
| Choice of four tube materials | |
| Outer cylinder burst pressure greater than 100 barg | |
| Compact, remote or integral Modbus versions | |
Applications
| Demanding mass flow and density measurement of fluids, gases and solids | |
| Hygienic and corrosive (titanium/tantalum) applications |
Process and environment
| Process temperature | Titanium −40 to +150 °C; stainless steel, Hastelloy, tantalum 0 to +100 °C (stainless to +130 °C, sizes 25–80 hygienic) |
|---|---|
| Measuring tube pressure | Titanium −1 to 100 barg; stainless / Hastelloy / tantalum −1 to 50 barg |
| Secondary containment | Burst > 100 barg (non-PED); PED versions 50–100 barg by material |
| Ambient temperature | −40 to +60 °C (aluminium converter), −40 to +65 °C remote |
Approvals
| FM / CSA | Class I Div 1 Groups B, C, D; Class II, III; Div 2 |
|---|---|
| Hygienic | 3-A, EHEDG, ASME BPE |
| Custody transfer | MID MI-005, OIML R117-1 |
| Other | PED, ANSI/CSA dual seal, NAMUR NE 21 |
Key specifications
| Measured variables | Mass flow, density, temperature (volume, referred density, concentration calculated) |
|---|---|
| Line size | Sizes 06 to 80 |
| Accuracy | ±0.1% of rate liquid; ±0.35% gas (+ zero stability) |
| Tube material | Titanium, stainless steel, Hastelloy or tantalum |
| Process temperature | −40 to +150 °C (titanium); 0 to +100 °C (others) |
| Approvals | FM/CSA, PED, 3-A, EHEDG, MID MI-005, OIML R117 |
Performance
| Mass flow, liquid | ±0.1% of actual flow + zero stability |
|---|---|
| Mass flow, gas | ±0.35% of actual flow + zero stability |
| Zero stability | Titanium ±0.004% of max flow; stainless / Hastelloy / tantalum ±0.015% |
| Density | 400 to 2,500 kg/m³; ±2 kg/m³ (±0.5 kg/m³ on-site calibration) |
| Temperature | ±1 °C |
Maximum flow rates
| Size 06 / 10 / 15 | 1,230 / 3,500 / 14,600 kg/h |
|---|---|
| Size 25 / 40 | 44,800 / 120,000 kg/h |
| Size 50 / 80 | 234,000 / 560,000 kg/h |
Construction
| Measuring tube | Titanium, stainless steel, Hastelloy or tantalum |
|---|---|
| Flanges | DIN DN 10–100 PN 40–100; ASME ½–4 in Class 150–600; JIS |
| Hygienic | Tri-clover, Tri-clamp, DIN 11864-2, DIN 11851, SMS, IDF/ISS, RJT |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of KROHNE, used with permission (source) — background removed by Argonmark. All photo credits
Description
The KROHNE OPTIMASS 7000/7400 is a single straight-tube Coriolis mass flowmeter that drains completely, is easy to clean and has a low pressure drop. It covers sizes 06 to 80 with maximum flows up to 560,000 kg/h, at ±0.1% of rate for liquids and ±0.35% for gases, and measures density from 400 to 2,500 kg/m³.
The measuring tube is available in titanium (to 100 barg, −40 to +150 °C), stainless steel, Hastelloy or tantalum, with flanged or hygienic connections and 3-A, EHEDG, FM/CSA and MID approvals.
Argonmark Ltd supplies KROHNE instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
