Micro Motion ELITE Coriolis flow and density meter (CMF, CMFS, CMFHC), DN 1–300
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1416 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Micro Motion |
| Model | ELITE CMF / CMFS / CMFHC |
| Technical | |
| Type | Flow |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Peak-performance Coriolis meters in a drainable design | |
| True multivariable | flow, density and process temperature at once |
|---|---|
| Smart Meter Verification checks tubes, electronics and calibration in situ | |
| Performance in two-phase flow; multiphase severity alerts | |
| Wetted materials 316L, 304L, nickel alloy C22 or super duplex; high-pressure and high-temperature models | |
| Integral or remote electronics (1500 to 5700 transmitters), up to five configurable I/O channels | |
Applications
| Custody transfer and high-accuracy process measurement of liquids, slurries and gases | |
| Hygienic, cryogenic, high-pressure and offshore applications |
Flow range (stainless models)
| CMFS007M (DN 1) | Nominal 35 kg/h; max. 40.9 kg/h |
|---|---|
| CMFS025M (DN 6) | Nominal 1,116 kg/h; max. 2,230 kg/h |
| CMFS050M (DN 15) | Nominal 3,614 kg/h; max. 6,820 kg/h |
| CMFS150M (DN 40) | Nominal 27,000 kg/h; max. 54,000 kg/h |
| CMFHC4M (DN 250–300) | Nominal 2,389,527 kg/h; max. 3,266,000 kg/h |
Approvals
| Hazardous area | ATEX Zone 1/2, IECEx (Ex db, Ex db eb, Ex ia, Ex ec), CSA Class I Div 1, NEPSI, EAC, INMETRO, TIIS |
|---|---|
| Custody transfer | MID, OIML R117/R137, NTEP, Measurement Canada, INMETRO |
| Hygienic | ASME BPE, EHEDG, 3-A (some models) |
| Marine | ABS, BV, DNV, KR, LR, CCS, NK (by model) |
| Other | PED, CRN, dual seal, ASME B31.1/B31.3, NAMUR NE 132/NE 131, SIL 2/3, NORSOK M-650 (super duplex) |
Key specifications
| Measured variables | Mass flow, volume flow, density, temperature |
|---|---|
| Line size | DN 1 to DN 300 (0.08 to 14 in) |
| Accuracy | ±0.10% of rate liquid (±0.05% premium); ±0.25% gas |
| Density accuracy | ±0.5 kg/m³ (±0.2 kg/m³ premium) |
| Max. flow | Up to 3,266,000 kg/h (CMFHC4) |
| Approvals | ATEX, IECEx, CSA, NEPSI, EAC, INMETRO; MID/OIML, NTEP; SIL 2/3 |
Performance, liquids and slurries
| Mass/volume flow accuracy | ±0.10% of rate (standard); ±0.05% of rate (premium) |
|---|---|
| Mass/volume flow repeatability | 0.05% of rate (standard); 0.025% (premium) |
| Density accuracy | ±0.5 kg/m³ (standard); ±0.2 kg/m³ (premium) |
| Density repeatability | 0.2 kg/m³ (standard); 0.1 kg/m³ (premium) |
| Cryogenic (below −100 °C) | ±0.35% of rate mass flow |
| Density range | Up to 5,000 kg/m³ |
Performance, gases and temperature
| Gas mass flow accuracy | ±0.25% of rate |
|---|---|
| Gas repeatability | 0.20% of rate |
| Gas linearity | ±0.05% of rate up to 0.2 Mach |
| With gas calibration (PWL) | ±0.1% of reference |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Temperature repeatability | 0.2 °C |
Pressure (sensor, ASME B31.3)
| CMFS007M / 010M | 249.9 barg |
|---|---|
| CMFS015M | 151.7 barg |
| CMF010M/L | 124.9 barg |
| CMF025–100M, CMF400M | 103.4 barg |
| CMF200 / 300 | 108.9 / 119.3 barg |
| CMFHC2 / HC3 | 102.0 barg |
| High-pressure (P) and C22 (H) small models | Up to 413.7 barg |
| Super duplex CMFHC2Y / HC3Y | 160.0 barg |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

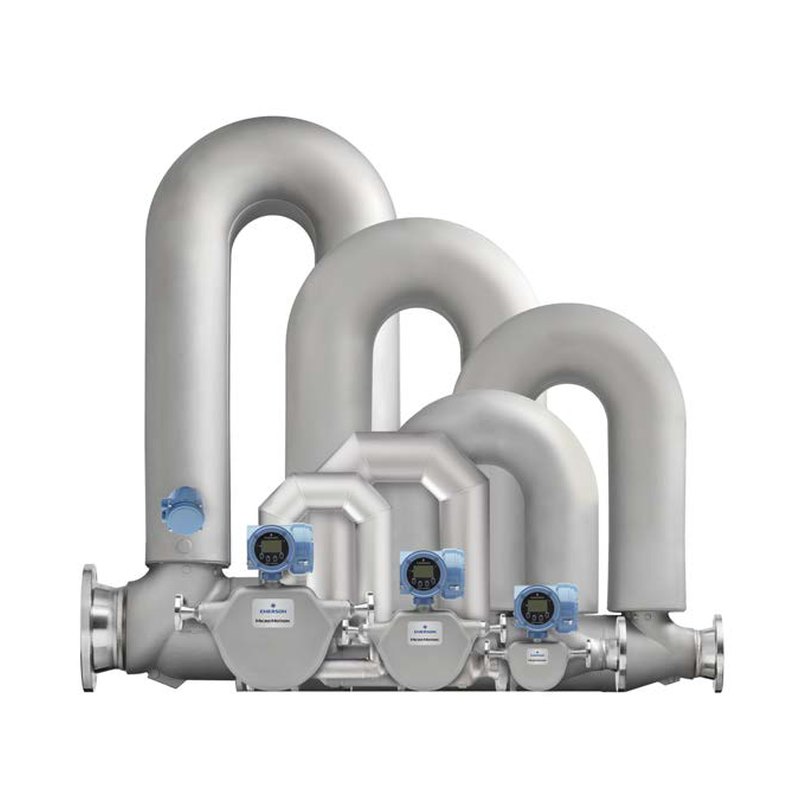

Photo: courtesy of Micro Motion, used with permission (source) — background removed by Argonmark. All photo credits
Description
Micro Motion ELITE meters are high-performance Coriolis flow and density meters in a drainable design, from DN 1 (CMFS007) up to DN 300 (CMFHC4, maximum 3,266,000 kg/h). On liquids and slurries they achieve ±0.10% of rate (±0.05% premium) and density to ±0.5 kg/m³ (±0.2 kg/m³), and on gases ±0.25% of rate.
Wetted parts are 316L, 304L, nickel alloy C22 or super duplex, with high-pressure versions up to 413 barg and high-temperature models. Smart Meter Verification checks the meter in place, and the range carries ATEX, IECEx, CSA, MID/OIML custody transfer, marine and SIL 2/3 approvals.
Argonmark Ltd supplies Micro Motion instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
