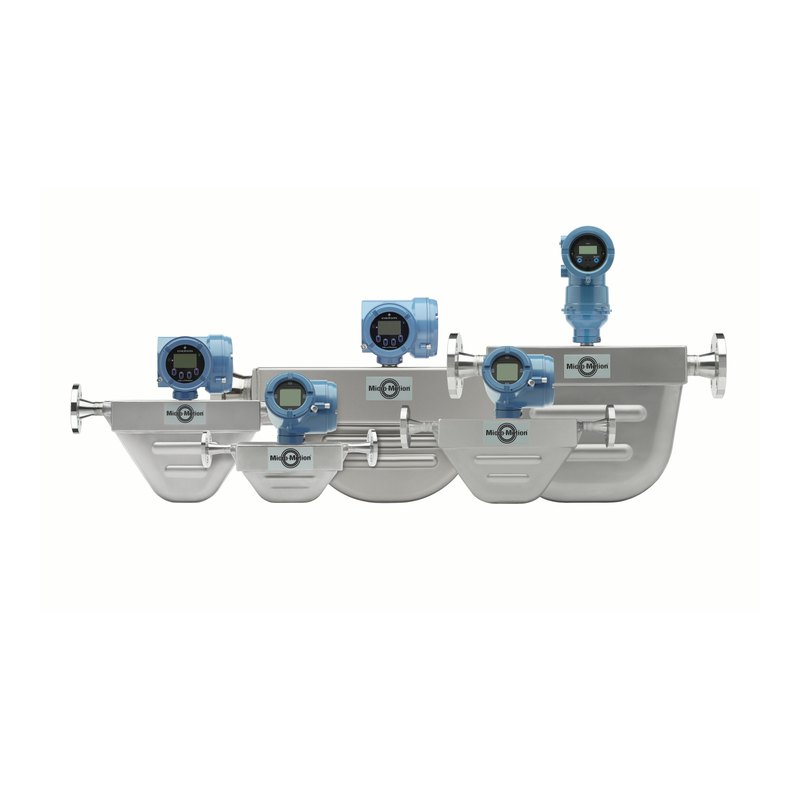

Micro Motion F-Series Coriolis flow and density meter, ¼ to 3 in
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1417 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Micro Motion |
| Model | F-Series (F025–F300) |
| Technical | |
| Type | Flow |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Self-draining design for critical process control service | |
| Low-frequency, high-sensitivity 'fit-and-forget' meter | |
| Smart Meter Verification monitors meter health | |
| 316L, nickel alloy C22, high-pressure (to 431 barg) and high-temperature models | |
| Broad choice of integral or remote transmitters |
Applications
| Process control and batching of liquids and slurries | |
| Gas flow measurement | |
| High-pressure chemical injection (P models) |
Flow rates (nominal / maximum)
| F025 (¼ in, DN 6) | 1,366 / 2,720 kg/h |
|---|---|
| F050P (½ in, DN 15) | 2,287 / 4,570 kg/h |
| F100P (1 in, DN 25) | 11,000 / 22,000 kg/h |
| F200 (2 in, DN 50) | 52,160 / 87,100 kg/h |
| F300 (3 in, DN 80) | 133,356 / 238,499 kg/h |
Approvals
| ATEX | II 1(2) G Ex ib IIB/IIC T6…T1 Ga/Gb; II 3G Ex nA IIC Gc; dust Ex ib / Ex tc IIIC |
|---|---|
| IECEx | Ex ib IIB/IIC Ga/Gb; Ex nA IIC Gc |
| CSA / CSA C-US | Class I Div 1 Groups C, D; Class I Div 2 Groups A–D; Class II Div 1 |
| NEPSI | Ex ib IIB/IIC; Ex nA IIC |
| Custody transfer | MID OIML R117, NTEP, Measurement Canada, INMETRO |
| Ingress protection | IP66 sensor; IP66/67 transmitter |
| EMC | EN 61326, NAMUR NE 21 |
Key specifications
| Measured variables | Mass flow, volume flow, density, temperature |
|---|---|
| Line size | ¼ to 3 in (DN 6 to DN 80) |
| Accuracy | ±0.10% to ±0.20% of rate liquid (by calibration); ±0.5% gas |
| Density accuracy | ±0.5 to ±2 kg/m³ (by calibration) |
| Max. flow | 2,720 kg/h (F025) to 238,499 kg/h (F300) |
| Approvals | ATEX, IECEx, CSA, NEPSI; MID/OIML R117, NTEP |
Performance, liquids
| Mass flow accuracy | ±0.20% (cal. Z), ±0.15% (cal. A), ±0.10% (cal. 1, K, C) of rate |
|---|---|
| Volume flow accuracy | ±0.20%, ±0.15% or ±0.10% of rate (by calibration) |
| Mass flow repeatability | 0.10% to 0.05% of rate |
| Density accuracy | ±2.0, ±1.0 or ±0.5 kg/m³ (by calibration) |
| Density range | Up to 3,000 kg/m³ |
| Temperature | ±1 °C ±0.5% of reading; repeatability 0.2 °C |
Performance, gases
| Mass flow accuracy | ±0.5% of rate |
|---|---|
| Repeatability | 0.25% of rate |
Pressure
| Stainless 316L (S/A) | 100 barg |
|---|---|
| Nickel alloy C22 (H/B) | 149 barg |
| High pressure F025P / F050P / F100P | 160 / 400 / 431 barg |
| Case burst pressure | 52 to 130 barg by model |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Micro Motion, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Micro Motion F-Series is a self-draining Coriolis flow and density meter for process control, in sizes ¼ to 3 in (F025 to F300, up to 238,499 kg/h). Depending on the calibration it measures liquid mass flow to ±0.10–0.20% of rate and density to ±0.5–2 kg/m³, and gas to ±0.5% of rate.
Models are available in 316L stainless steel (100 barg), nickel alloy C22 (149 barg) and high-pressure versions up to 431 barg. Smart Meter Verification checks the meter in place, and it carries ATEX, IECEx, CSA and NEPSI approvals and MID/OIML custody transfer approval.
Argonmark Ltd supplies Micro Motion instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
