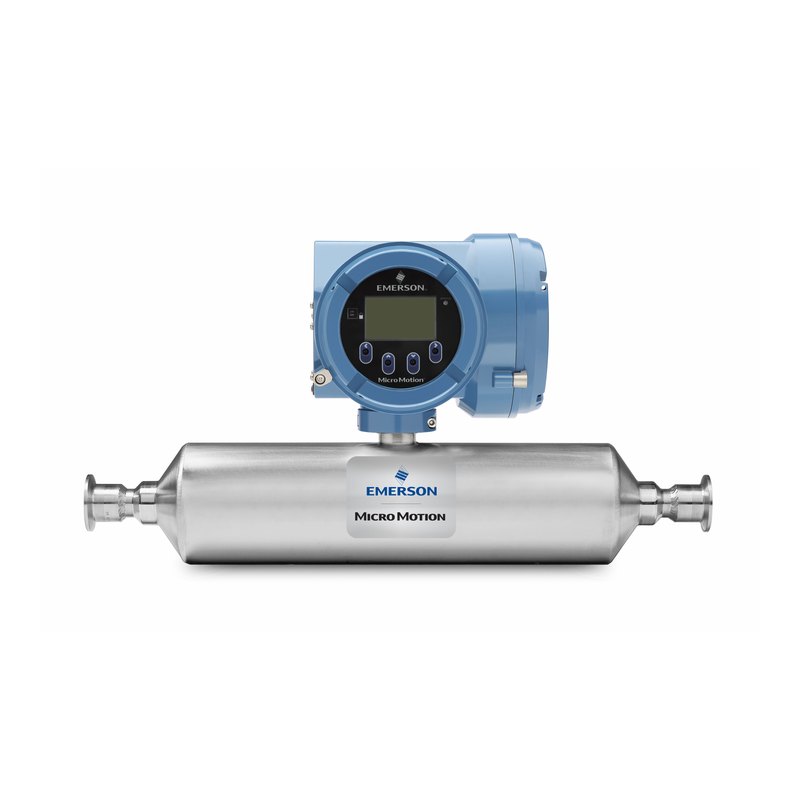

Micro Motion T-Series straight-tube hygienic Coriolis meter, titanium, ¼ to 1½ in
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1419 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Micro Motion |
| Model | T-Series (T025–T150) |
| Technical | |
| Type | Flow |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Straight titanium tube | fully drainable, cleanable, low pressure drop |
|---|---|
| Hygienic sanitary fittings (polished 0.38 or 0.8 µm surface) | |
| Measures mass, density, concentration, volume and temperature in one device | |
| No process pressure effect on flow; maximum flow equals nominal flow | |
Applications
| Hygienic and corrosive-service flow and density measurement | |
| Concentration measurement inline |
Flow rates (nominal = maximum)
| T025 (¼ in) | 680 kg/h |
|---|---|
| T050 (½ in) | 3,800 kg/h |
| T075 (¾ in) | 14,000 kg/h |
| T100 (1 in) | 30,000 kg/h |
| T150 (1½ in) | 87,000 kg/h |
Approvals
| ATEX | II 2G Ex ib IIB/IIC T6…T1 Gb; II 3G Ex nA IIC Gc; dust Ex ib / Ex tc IIIC |
|---|---|
| IECEx | Ex ib IIB/IIC Gb; Ex nA IIC Gc |
| CSA / CSA C-US | Class I Div 1 Groups C, D; Class I Div 2 Groups A–D; Class II Div 1 |
| NEPSI | Ex ib IIB/IIC; Ex nA IIC |
| Ingress protection | IP66/IP67/IP69(K) |
| EMC | EN 61326, NAMUR NE 21 |
Key specifications
| Measured variables | Mass flow, density, concentration, volume flow, temperature |
|---|---|
| Line size | ¼ to 1½ in (DN 6 to DN 40) |
| Accuracy | ±0.10–0.15% of rate mass; ±0.15–0.25% volume; ±0.5% gas |
| Density accuracy | ±0.5 to ±2 kg/m³ |
| Max. flow | 680 kg/h (T025) to 87,000 kg/h (T150) |
| Approvals | ATEX, IECEx, CSA, NEPSI; IP66/67/69K |
Performance, liquids
| Mass flow accuracy | ±0.15% (cal. Z); ±0.10% (cal. 1, K) of rate |
|---|---|
| Volume flow accuracy | ±0.25% (cal. Z); ±0.15% (cal. 1, K) |
| Density accuracy | ±2 kg/m³ (Z), ±1 kg/m³ (1), ±0.5 kg/m³ (K) |
| Density range | Up to 3,000 kg/m³ |
| Temperature | ±1 °C ±0.5% of reading; repeatability 0.2 °C |
Performance, gases
| Mass flow accuracy | ±0.5% of rate (repeatability 0.25%) |
|---|
Process and construction
| Sensor max. working pressure | 99.97 barg (1,450 psig), all models |
|---|---|
| Case pressure | 99.97 barg (49.99 barg with purge fittings) |
| Process temperature | Up to about +160 °C (per temperature limit graph) |
| Measuring tube | Titanium, straight tube |
| Fittings | Sanitary (304L / titanium Grade 1), socket-weld flanges (F316/316L / titanium Grade 5) |
| Vibration | IEC 60068-2-6, 5–2000 Hz, 1.0 g |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Micro Motion, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Micro Motion T-Series is a straight-tube Coriolis meter with a titanium measuring tube that drains fully, cleans easily and has a low pressure drop. It measures mass flow, density, concentration, volume flow and temperature in sizes ¼ to 1½ in (680 to 87,000 kg/h), with mass flow accuracy of ±0.10–0.15% of rate and density to ±0.5–2 kg/m³.
It uses hygienic sanitary fittings or socket-weld flanges, is rated 100 barg, and carries ATEX, IECEx, CSA and NEPSI approvals with IP66/67/69K protection.
Argonmark Ltd supplies Micro Motion instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
