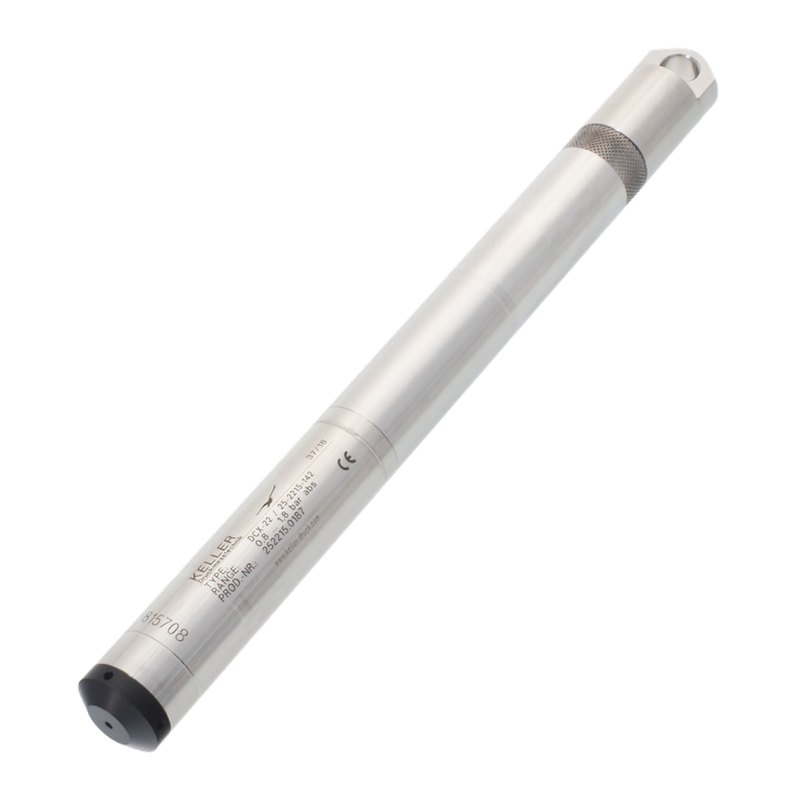

Keller DCX-22 autonomous water level logger, Ø 22 mm (DCX-22, SG/VG, AA)
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: RS-485
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1421 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Keller |
| Model | DCX-22 / DCX-22 SG / VG / AA |
| Technical | |
| Type | Level |
| Signal / Protocol | RS-485 |
| Hazardous area | General purpose |
Datasheet
Technical features
| DCX-22 | sensor, electronics and battery in one sealed submersible tube |
|---|---|
| DCX-22 SG/VG | cable to a surface housing with read-out port, 2 in fixing plate |
| DCX-22 AA | built-in waterproof barometric sensor compensates air pressure without vent tubes; withstands flooding |
| Optional ARC-1 module sends data by SMS and allows remote re-programming | |
| Event-controlled and interval recording | |
Applications
| Shallow and deep well groundwater monitoring | |
| Long-term level and temperature logging in humid, flood-prone locations (AA version) |
Electrical and construction
| Supply | Lithium battery 3.6 V, type AA |
|---|---|
| Battery life | 10 years at 1 measurement/hour |
| Output | RS 485 digital (Fischer DEE 103A054) |
| Memory | 57,000 values at ≤ 15 s, otherwise 28,000 (time-stamped) |
| Material | Stainless steel 316L (1.4435), Viton O-ring |
| Weight | Probe ≈ 200–355 g (without cable); AA housing ≈ 335 g |
| System length tolerance | ± 2 cm |
Key specifications
| Measured variables | Water level (pressure) and temperature |
|---|---|
| Ranges | 10, 20, 50, 100 mWC; AA version to 5 or 10 mWC |
| Accuracy | Linearity typ. 0.02 %FS; error band typ. 0.05 %FS (max. 0.1 %FS) |
| Power | 3.6 V lithium battery (AA), ~10 years at 1 reading/hour |
| Memory | 57,000 values (≤ 15 s interval) |
| Housing | Stainless steel 316L (1.4435), Ø 22 mm |
Pressure ranges
| DCX-22 / DCX-22 SG (absolute) | 0.8–2, 0.8–3, 0.8–6, 0.8–11 bar abs (10/20/50/100 mWC) |
|---|---|
| DCX-22 VG (vented gauge) | 1, 2, 5, 10 bar |
| DCX-22 AA | 800–1800 mbar abs (to 5 mWC) or 800–2300 mbar abs (to 10 mWC) |
| DCX-22 Baro | 0.8–1.3 bar abs |
| Overpressure | 2 × pressure range |
Performance
| Linearity | typ. 0.02 %FS |
|---|---|
| Error band | typ. 0.05 %FS; max. 0.1 %FS (optional max. 0.05 %FS) |
| Resolution | max. 0.0025 %FS |
| Long-term stability | typ. 0.5 mbar |
| Temperature accuracy | typ. ±0.5 °C |
| Compensated range | −10 to 40 °C |
| Shortest interval | 1 per second |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Keller, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Keller DCX-22 is a family of autonomous water level and temperature loggers in a 22 mm 316L stainless steel housing, for shallow or deep wells. The plain DCX-22 is fully submersible, the SG/VG versions bring a cable up to a read-out housing, and the DCX-22 AA adds a built-in barometric sensor so readings are air-pressure compensated without vent tubes.
Ranges run to 100 mWC with a typical error band of 0.05 %FS, readings are time-stamped in 57,000-value memory, and the AA lithium battery lasts about ten years at one reading per hour. An optional ARC-1 module can send data by SMS.
Argonmark Ltd supplies Keller instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
