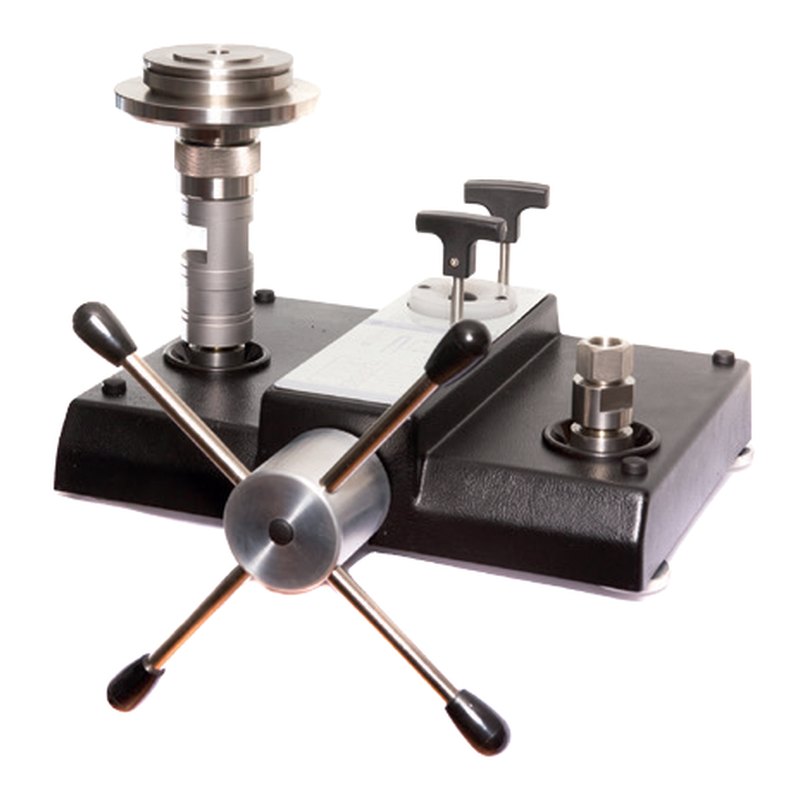

WIKA CPB3800 hydraulic dead-weight tester, compact, up to 1,200 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1425 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPB3800 |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Compact, stand-alone hydraulic primary standard for on-site and laboratory calibration | |
| Integrated dual-area spindle pump for filling, pressure generation and fine adjustment | |
| Tungsten carbide piston and cylinder | |
| Optional CPS5800 single- or dual-range piston-cylinder systems with automatic range switching (dual range to 1,400 bar) | |
| Recommended recalibration interval 2 to 5 years |
Applications
| On-site and laboratory calibration of hydraulic pressure gauges and transmitters |
Key specifications
| Pressure range | 1–120, 2.5–300, 5–700 or 10–1,200 bar (1,600–16,000 psi) |
|---|---|
| Accuracy | 0.05% of reading (option 0.025%; with CPS5800 0.015–0.006%) |
| Medium | VG22 mineral oil |
| Test connection | G ½ female, loose union |
| Use | Compact primary standard for site and lab |
Specification
| Accuracy, standard system | 0.05% of reading (option 0.025%), from 10% of range |
|---|---|
| Piston / cylinder | Tungsten carbide / tungsten carbide |
| Mass set | Non-magnetic stainless steel |
| Pressure medium | Hydraulic fluid based on VG22 mineral oil (0.5 l included) |
| Reservoir | 170 cm³ |
| Piston connection | G ¾ B male |
| Test item connection | G ½ female, loose union; BSP adapter set included |
| Wetted parts | Austenitic stainless steel, high-tensile brass, nitrile rubber |
| Operating temperature | 18 to 28 °C |
| Base | 401 × 397 × 155 mm, 13.5 kg |
| Calibration | Factory certificate; UKAS optional |
Standard piston-cylinder systems
| Measuring range | psi range | Required masses | Smallest step | Piston effective area |
|---|---|---|---|---|
| 1 to 120 bar | 10 to 1,600 psi | 41 kg | 1 bar / 10 psi | 1/16 in² |
| 2.5 to 300 bar | 25 to 4,000 psi | 50 kg | 2.5 bar / 25 psi | 1/40 in² |
| 5 to 700 bar | 50 to 10,000 psi | 58 kg | 5 bar / 50 psi | 1/80 in² |
| 10 to 1,200 bar | 100 to 16,000 psi | 50 kg | 10 bar / 100 psi | 1/160 in² |
Optional CPS5800 piston-cylinder systems
| Measuring range | Smallest step (standard / fine) | Accuracy standard / premium |
|---|---|---|
| 1 to 120 bar (single) | 0.5 / 0.02 bar | 0.015% / 0.007% |
| 2 to 300 bar (single) | 2.5 / 0.05 bar | 0.015% / 0.006% |
| 1–60 / 10–700 bar (dual) | 0.5–5.0 / 0.01–0.1 bar | 0.015% / 0.007% |
| 1–60 / 20–1,200 bar (dual) | 0.5–10 / 0.01–0.2 bar | 0.015% / 0.007% |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPB3800 is a compact hydraulic dead-weight tester for calibrating pressure instruments on site or in the laboratory. Standard tungsten carbide piston-cylinder systems cover 1–120, 2.5–300, 5–700 or 10–1,200 bar with 0.05% of reading accuracy (0.025% option), and the integrated dual-area spindle pump fills the system and sets the pressure finely.
Optional CPS5800 single- and dual-range piston systems raise accuracy to 0.015% (premium 0.006%) and switch ranges automatically. The base weighs 13.5 kg and runs on VG22 mineral oil.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
