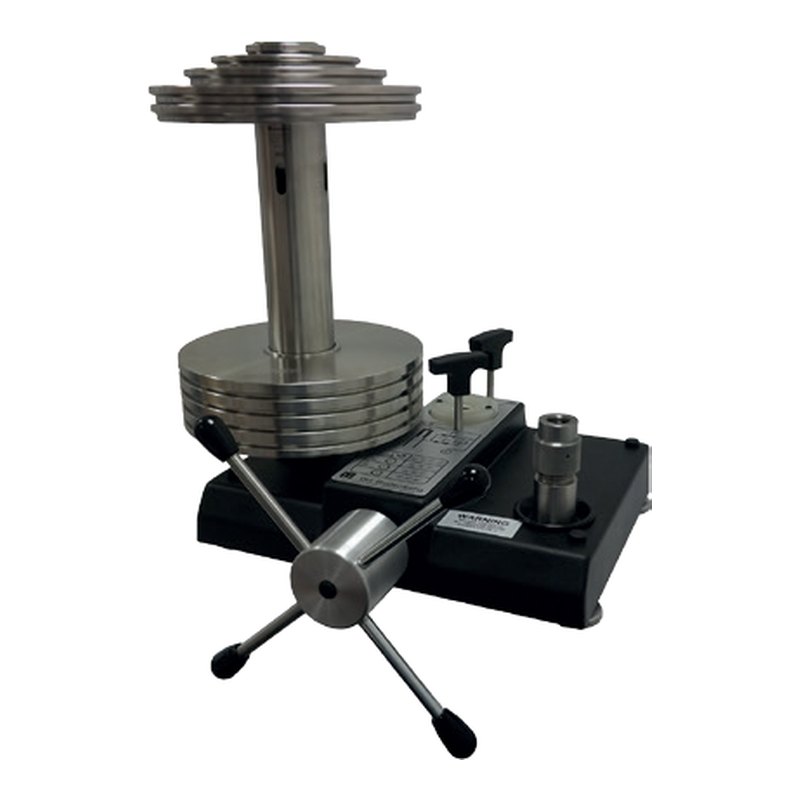

WIKA CPB3800HP high-pressure dead-weight tester, up to 2,600 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1426 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPB3800HP |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Dual-range piston-cylinder system with fully automatic range change | |
| Integrated dual-area spindle pump for rapid filling and smooth pressure generation to 2,600 bar | |
| Stable pressure over several minutes for comparison or adjustment | |
| Masses can be made to local gravity; UKAS calibration optional |
Applications
| Calibration of high-pressure gauges and transmitters up to 2,600 bar |
Key specifications
| Pressure range | 1–60 bar / 20–2,600 bar (10–800 / 200–40,000 psi), dual range |
|---|---|
| Accuracy | 0.025% of reading (premium 0.01%) |
| Medium | VG22 mineral oil |
| Test connection | G ½ union nut with metal cone; M16 × 1.5, M20 × 1.5, 9/16-18 UNF adapters |
| Use | High-pressure primary standard, lab and site |
Specification
| Measuring range | 1–60 bar / 20–2,600 bar (10–800 / 200–40,000 psi) |
|---|---|
| Required masses | 107 kg (bar) / 119 kg (psi) |
| Smallest step | 0.5 bar / 10 bar (5 / 100 psi) |
| Piston effective area | ⅛ in² / 1/160 in² |
| Accuracy | 0.025% of reading standard; 0.01% premium |
| Piston / cylinder | Tungsten carbide / steel |
| Pressure medium | VG22 mineral oil (0.5 l included) |
| Reservoir | 170 cm³ |
| Test connection | G ½ union nut, metal cone; adapters M16 × 1.5, M20 × 1.5, 9/16-18 UNF |
| Wetted parts | Austenitic stainless steel, high-tensile brass, nitrile rubber |
| Operating temperature | 18 to 28 °C |
| Base | 401 × 397 × 155 mm, 13.5 kg |
| Approvals | EU PED (module A), EAC, UkrSEPRO, MTSCHS |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPB3800HP is a stand-alone high-pressure dead-weight tester for calibrations up to 2,600 bar (40,000 psi). Its dual-range piston-cylinder system covers 1–60 bar and 20–2,600 bar with automatic range change and an accuracy of 0.025% of reading, or 0.01% in the premium version.
The integrated dual-area spindle pump fills the system and builds pressure smoothly, and the high-pressure test port comes with M16, M20 and 9/16-18 UNF cone adapters.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
