WIKA CPB5000 pressure balance (dead-weight tester), pneumatic to 100 bar, hydraulic to 1,000 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1427 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPB5000 |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Primary standard defining the pressure scale (p = F/A) | |
| Pneumatic and hydraulic piston-cylinder systems on one base | |
| Optional patented ConTect quick-release for fast piston change | |
| High long-term stability | recommended recalibration every five years |
|---|---|
| Masses in stainless steel and aluminium, adjustable to local gravity; DKD/DAkkS calibration optional | |
Applications
| Calibration laboratories and factory standards rooms | |
| On-site calibration and maintenance |
Key specifications
| Pressure range | −1 to 100 bar pneumatic; 0.2 to 1,000 bar hydraulic |
|---|---|
| Accuracy | 0.015% of reading (optional 0.008%) |
| Medium | Gas (to 400 bar with gas/oil separator) or hydraulic oil |
| Piston/cylinder | Tungsten carbide |
| Use | Primary standard for calibration labs, also on site |
Specification
| Accuracy | 0.015% of reading (from 10% of range); optional 0.008% |
|---|---|
| psi ranges | Pneumatic −14 to 1,500 psi; hydraulic 2.9 to 14,500 psi |
| Piston / cylinder | Tungsten carbide / tungsten carbide |
| Mass set | 1.4305 stainless steel and aluminium, non-magnetic |
| Calibration | Factory, traceable to national standards; DKD/DAkkS optional |
| Recalibration interval | Five years recommended |
Piston-cylinder systems CPS5000
| Version | Measuring range | Required masses | Smallest step | Effective area |
|---|---|---|---|---|
| Pneumatic (vacuum) | −0.03 to −1 bar | 5 kg | 0.01 bar | 5 cm² |
| Pneumatic | 0.03 to 2 bar | 10 kg | 0.01 bar | 5 cm² |
| Pneumatic | 0.2 to 10 bar | 10 kg | 0.05 bar | 1 cm² |
| Pneumatic | 0.4 to 50 bar | 10 kg | 0.25 bar | 0.2 cm² |
| Pneumatic | 0.4 to 100 bar | 20 kg | 0.25 bar | 0.2 cm² |
| Hydraulic | 0.2 to 60 bar | 30 kg | 0.1 bar | 0.5 cm² |
| Hydraulic | 0.2 to 100 bar | 50 kg | 0.1 bar | 0.5 cm² |
| Hydraulic | 1 to 250 bar | 25 kg | 0.5 bar | 0.1 cm² |
| Hydraulic | 1 to 400 bar | 40 kg | 0.5 bar | 0.1 cm² |
| Hydraulic | 2 to 600 bar | 30 kg | 1 bar | 0.05 cm² |
| Hydraulic | 2 to 1,000 bar | 50 kg | 1 bar | 0.05 cm² |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

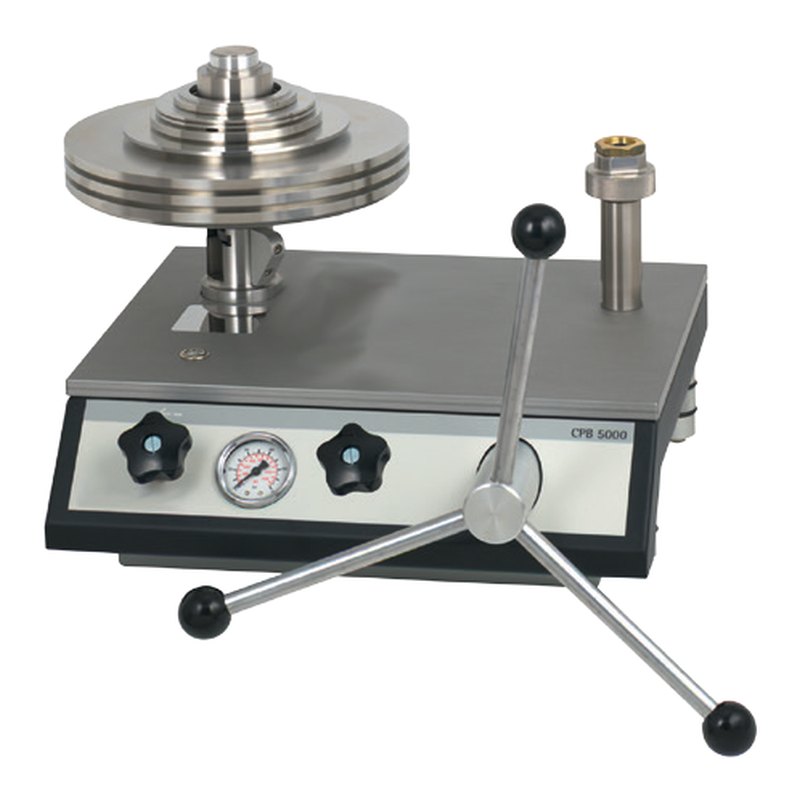

Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPB5000 is a pressure balance (dead-weight tester) used as a primary standard: pneumatic piston-cylinder systems cover vacuum to 100 bar (to 400 bar with a gas-to-oil separator) and hydraulic systems cover 0.2 to 1,000 bar, all with 0.015% of reading accuracy or 0.008% as an option.
Tungsten carbide pistons and cylinders give high long-term stability, with recalibration recommended only every five years, and the optional ConTect quick-release system makes changing ranges fast and safe.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
