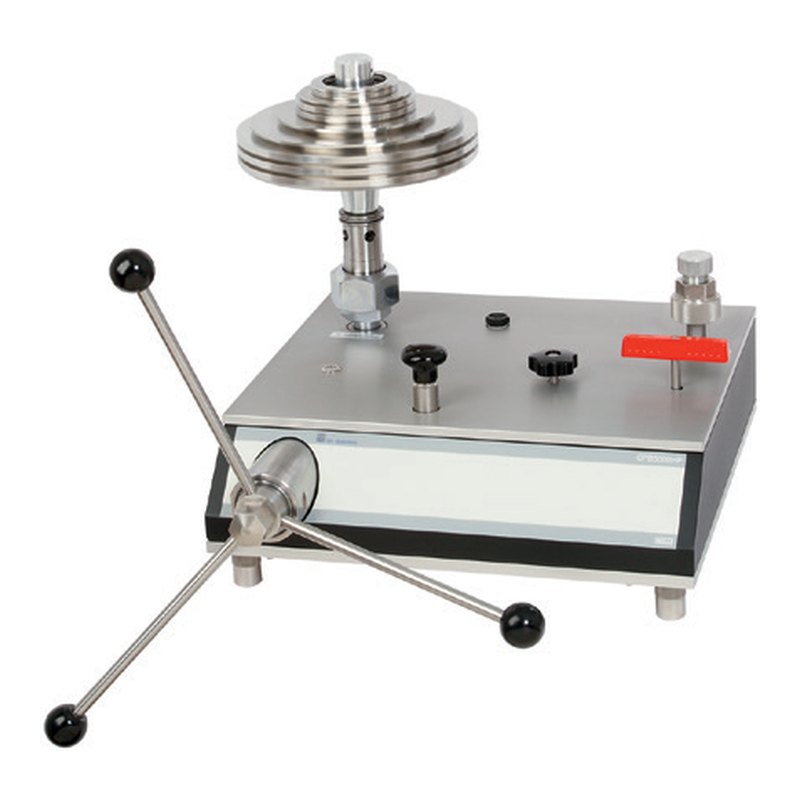

WIKA CPB5000HP high-pressure pressure balance, up to 5,000 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1428 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPB5000HP |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Primary standard for the hydraulic range up to 5,000 bar (70,000 psi) | |
| Stand-alone with integrated pressure generation; suitable for site use | |
| Recommended recalibration every five years | |
| Masses adjustable to local gravity; DKD/DAkkS calibration optional |
Applications
| Calibration of very high-pressure gauges, transmitters and sensors |
Key specifications
| Pressure range | 25–2,500, 25–4,000 or 25–5,000 bar (350–70,000 psi) |
|---|---|
| Accuracy | 0.025% of reading (premium 0.02%) |
| Medium | VG22 mineral oil (to 4,000 bar); sebacate oil (5,000 bar) |
| Piston/cylinder | Hardened steel / tungsten carbide |
| Use | High-pressure primary standard |
Specification
| Measuring ranges | 25–2,500 bar (50 kg masses), 25–4,000 bar (80 kg), 25–5,000 bar (100 kg) |
|---|---|
| psi ranges | 350–40,000, 350–60,000, 350–70,000 psi |
| Smallest step | 2.5 bar / 50 psi (standard mass set) |
| Piston effective area | 0.02 cm² |
| Accuracy | 0.025% of reading standard; 0.02% premium |
| Pressure medium | VG22 mineral oil up to 4,000 bar (1 l included); sebacate oil at 5,000 bar (0.5 l included) |
| Piston / cylinder | Hardened steel / tungsten carbide |
| Base piping | 1.4404 stainless steel, 6 × 2 mm |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPB5000HP is a high-pressure pressure balance (dead-weight tester) for the hydraulic range up to 5,000 bar (70,000 psi), in versions for 2,500, 4,000 or 5,000 bar. Accuracy is 0.025% of reading, or 0.02% in the premium version.
It uses a hardened steel piston in a tungsten carbide cylinder with VG22 mineral oil (sebacate oil for 5,000 bar), and integrated pressure generation makes it usable on site as well as in the laboratory.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
