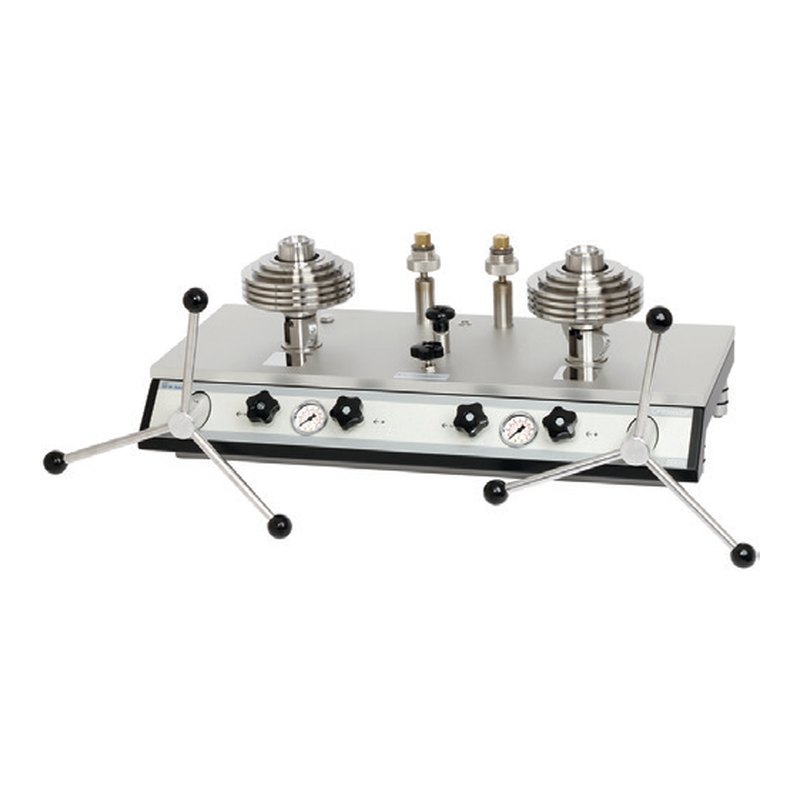

WIKA CPB5600DP differential pressure balance, static + DP to 400 bar pneumatic / 1,600 bar hydraulic
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1429 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPB5600DP |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Calibrates differential pressure instruments at their working static pressure | |
| Uncertainty to 0.008% of differential pressure plus 1 ppm of static pressure | |
| Pneumatic and hydraulic piston-cylinder systems | |
| Recommended recalibration every five years; DKD/DAkkS calibration optional |
Applications
| Calibration of differential pressure transmitters (flow, level) under line pressure |
Key specifications
| Pressure range | Static + differential up to 100 bar pneumatic (400 bar with separator) or 1,600 bar hydraulic |
|---|---|
| Accuracy | 0.015% of DP + 0.0001% of static (premium 0.008%) |
| Medium | Gas or hydraulic oil |
| Use | Primary standard for DP instruments under static pressure |
Accuracy
| Static pressure share | 0.0001% of reading |
|---|---|
| Differential pressure, standard | 0.015% of reading (0.025% hydraulic high pressure) |
| Differential pressure, premium | 0.008% of reading (0.02% hydraulic high pressure) |
| Lower limit | Corresponds to the piston sensitivity |
Piston-cylinder systems (range = static + differential pressure)
| Version | Measuring range | Smallest step | Sensitivity | Effective area |
|---|---|---|---|---|
| Pneumatic | 0.03 to 2 bar | 0.01 bar | 0.002 mbar | 5 cm² |
| Pneumatic | 0.2 to 10 bar | 0.05 bar | 0.01 mbar | 1 cm² |
| Pneumatic | 0.4 to 50 bar | 0.25 bar | 0.05 mbar | 0.2 cm² |
| Pneumatic | 0.4 to 100 bar | 0.25 bar | 0.05 mbar | 0.2 cm² |
| Hydraulic | 0.2 to 60 bar | 0.1 bar | 0.04 mbar | 0.5 cm² |
| Hydraulic | 0.2 to 100 bar | 0.1 bar | 0.04 mbar | 0.5 cm² |
| Hydraulic | 1 to 250 bar | 0.5 bar | 0.2 mbar | 0.1 cm² |
| Hydraulic | 1 to 400 bar | 0.5 bar | 0.2 mbar | 0.1 cm² |
| Hydraulic | 2 to 600 bar | 1 bar | 0.4 mbar | 0.05 cm² |
| Hydraulic | 2 to 1,000 bar | 1 bar | 0.4 mbar | 0.05 cm² |
| Hydraulic high pressure | 25 to 1,600 bar | 2.5 bar | 5 mbar | 0.02 cm² |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPB5600DP is a pressure balance built to calibrate differential pressure instruments, such as DP transmitters for flow and level, at their working static pressure. Pneumatic systems cover up to 100 bar (400 bar with separator) and hydraulic systems up to 1,600 bar, where the range is the sum of static and differential pressure.
The differential pressure is determined to 0.015% of reading (0.008% premium) plus only 1 ppm of the static pressure.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
