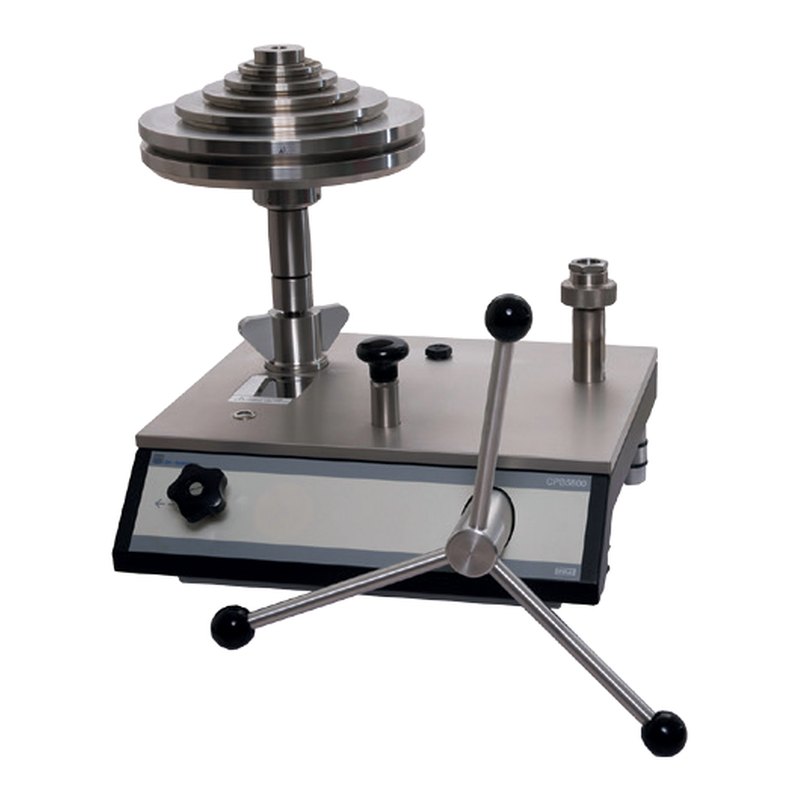

WIKA CPB5800 hydraulic pressure balance, single and dual range up to 1,400 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1430 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPB5800 |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Wide choice of single- and dual-range piston-cylinder systems | |
| Dual-range systems change automatically from low- to high-pressure piston | |
| Optional ConTect quick-release system for piston changes | |
| Uncertainty down to 0.006% of reading | |
| Factory calibration traceable to national standards; UKAS optional |
Applications
| Hydraulic pressure calibration in laboratories and on site up to 1,400 bar |
Key specifications
| Pressure range | 1–120 to 1–60/20–1,400 bar (10–20,000 psi) |
|---|---|
| Accuracy | 0.015% of reading (premium 0.007–0.006%) |
| Medium | VG22 mineral oil (options: sebacate, brake fluid, Skydrol, Fomblin) |
| Piston/cylinder | Steel, bronze or tungsten carbide by range |
| Use | Primary standard, lab and site |
Specification
| Pressure medium | VG22 mineral oil standard; sebacate oil, brake fluid, Skydrol or Fomblin oil optional |
|---|---|
| Pistons / cylinders | Steel/bronze (120 bar), steel/steel (300 bar), tungsten carbide/steel (dual range) |
| Mass set | Non-magnetic stainless steel |
| Calibration | Factory, traceable; UKAS optional |
Piston-cylinder systems CPS5800
| Measuring range | psi range | Required masses | Smallest step (standard / fine) | Accuracy standard / premium |
|---|---|---|---|---|
| 1 to 120 bar | 10 to 1,600 psi | 49.7 kg | 0.5 / 0.02 bar | 0.015% / 0.007% |
| 2 to 300 bar | 30 to 4,000 psi | 49.6 kg | 2.5 / 0.05 bar | 0.015% / 0.006% |
| 1–60 / 10–700 bar | 10–800 / 100–10,000 psi | 57.4 kg | 0.5–5.0 / 0.01–0.1 bar | 0.015% / 0.007% |
| 1–60 / 20–1,200 bar | 10–800 / 200–16,000 psi | 49.2 kg | 0.5–10 / 0.01–0.2 bar | 0.015% / 0.007% |
| 1–60 / 20–1,400 bar | 10–800 / 200–20,000 psi | 57.4 kg | 0.5–10 / 0.01–0.2 bar | 0.025% / 0.007% |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPB5800 is a hydraulic pressure balance (dead-weight tester) with a wide choice of single-range (120 or 300 bar) and dual-range piston-cylinder systems up to 1,400 bar (20,000 psi). Dual-range systems switch automatically from the low- to the high-pressure piston, so two ranges are covered with one mass set.
Accuracy is 0.015% of reading, or down to 0.006% in the premium version, and the optional ConTect quick-release system allows fast piston changes. Besides mineral oil it can run on sebacate oil, brake fluid, Skydrol or Fomblin.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
