WIKA Model 80 / 80L pipeline tester (dead-weight), 7–300 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1431 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | Model 80 / 80L |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Measures arbitrary and fluctuating pressures accurately, e.g. pipeline hydrotests | |
| Stepped piston with masses; a small balancing pressure on the annulus is read on a precision dial gauge | |
| Piston unit and test masses calibrated against standards | |
| Portable case with transparent plastic pipes and plant valve |
Applications
| Pipeline pressure testing and monitoring | |
| Power plant and process pressure measurement where pressure fluctuates |
Key specifications
| Pressure range | 30–300 bar (Model 80); 7–60 bar (Model 80L) |
|---|---|
| Accuracy | 0.03% + 0.05 bar (80); 0.04% + 0.015 bar (80L) |
| Medium | Hydraulic oil, water or air |
| Use | Accurate measurement of fluctuating pressures in pipelines and power plants |
Specification
| Standard range Model 80 | 30 to 300 bar (500 to 4,000 psi) |
|---|---|
| Standard range Model 80L | 7 to 60 bar (100 to 800 psi) |
| Accuracy Model 80 | 0.03% + 0.05 bar (0.03% + 0.7 psi) |
| Accuracy Model 80L | 0.04% + 0.015 bar (0.04% + 0.2 psi) |
| Resolution | 0.02 bar (80); 0.005 bar (80L) |
| Pressure medium | Hydraulic mineral oil 20–37 cSt at 40 °C, water, air |
| Piston / cylinder | Steel / carbide (80); steel / steel (80L) |
| Mass set | 29 kg (bar) or 35 kg (psi) |
| Piston connection | G ¾ B male |
| Plant (input) connection | G ¼ female |
| Operating temperature | 18 to 28 °C |
| Case | 500 × 440 × 450 mm, 30 kg |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

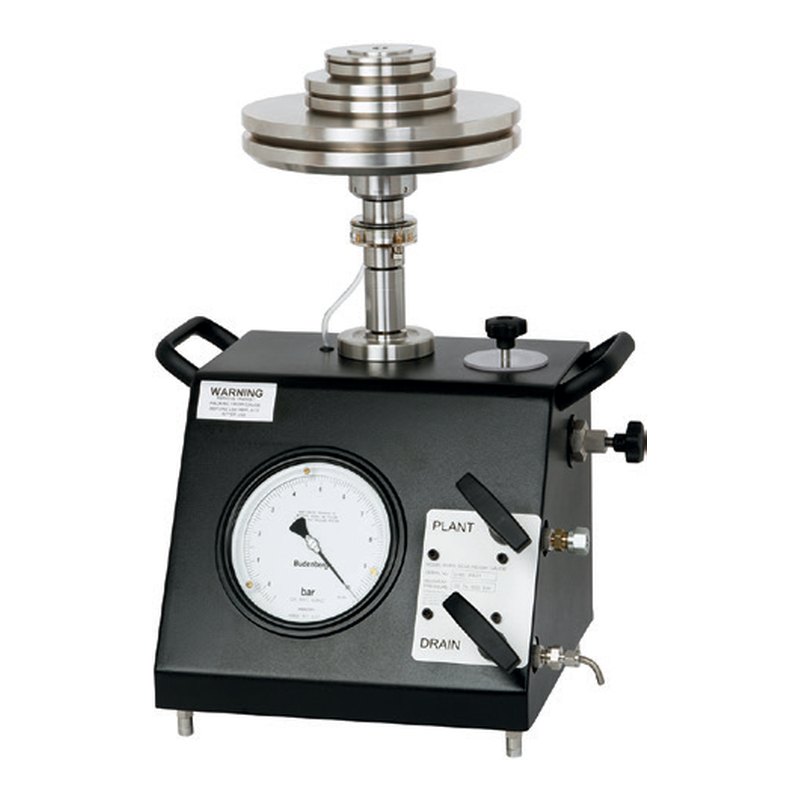

Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA Model 80 pipeline tester is a dead-weight instrument for measuring arbitrary and fluctuating pressures accurately, for example during pipeline hydrostatic tests or in power plants. It loads a stepped piston with masses and balances it with a small pressure read on a precision dial gauge, so the line pressure is the mass load plus a small gauge correction.
The Model 80 covers 30–300 bar with 0.03% + 0.05 bar accuracy, and the Model 80L 7–60 bar with 0.04% + 0.015 bar. It works with oil, water or air and comes in a portable case.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
