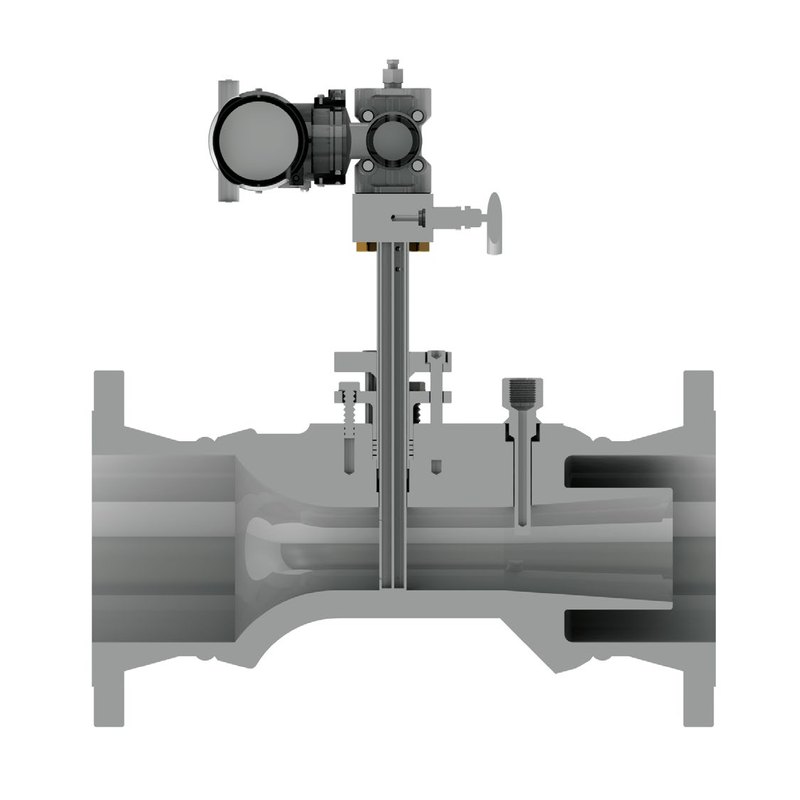

Armstrong VERIS Accelabar flow meter (venturi + averaging pitot), 1–12 in, Class 150–600
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1436 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Armstrong International |
| Model | VERIS Accelabar |
| Technical | |
| Type | Flow |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Primary flow element combining an accelerating (venturi-type) section with a VERIS Verabar averaging pitot sensor | |
| Complete flow meter with DP transmitter; single or dual transmitters for turndown and accuracy | |
| Optional RTD in welded thermowell for real-time density compensation | |
| Direct-mount (to 232 °C) or remote-mount transmitter head; 3- and 5-valve manifolds | |
| Sized with VERIS Veracalc software; standard beta ratio per size |
Applications
| Liquid, gas and steam flow measurement in oil, gas and process plants | |
| Energy and utility metering where low permanent pressure loss matters |
Key specifications
| Measurement | Liquid, gas and steam flow (with DP transmitter) |
|---|---|
| Line size | 1 to 12 in (DN 25 to 300) |
| Accuracy | Up to ±0.50%; repeatability ±0.050% |
| Turndown | 60 : 1 |
| Process connection | Flanged (ANSI 150/300/600), weld-in or MNPT (2 in) |
| Material | 316 SS sensor, CF8M body |
Specification
| Meter sizes | 1, 2, 3, 4, 6, 8, 10, 12 in (DN 25–300) |
|---|---|
| Accuracy | To ±0.50% of reading |
| Repeatability | ±0.050% |
| Turndown | 60 : 1 |
| Sensor / body | 316 stainless steel / CF8M |
| Flange material | 304 SS standard; 316 SS or carbon steel optional |
| Flange ratings | ANSI 150 (19 bar at 38 °C), 300 (49.6 bar), 600 (99.3 bar); DIN/JIS on request |
| End connections | Flanged (AFS), bevel for weld-in (ABS), MNPT threaded (ATS, 2 in only) |
| Verabar sensor size | 7/16 in (11 mm) or 7/8 in (22 mm) |
| Transmitter mounting | Direct mount (flanged, max. 232 °C) or remote (½ NPT) |
| RTD option | Standard to 260 °C; high temperature 260–482 °C |
| Cable options | Explosion-proof (XP) or NEMA 4 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Armstrong International, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Armstrong VERIS Accelabar is a primary flow element that combines an accelerating venturi-type section with a VERIS Verabar averaging pitot sensor; fitted with a DP transmitter it becomes a complete flow meter for liquids, gases and steam. It reaches accuracy up to ±0.50% with ±0.05% repeatability and a 60 : 1 turndown.
It is made in 1 to 12 in sizes with a 316 stainless sensor and CF8M body, flanged to ANSI Class 150–600, weld-in or threaded, and can include an RTD thermowell for live density compensation.
Argonmark Ltd supplies Armstrong International instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
