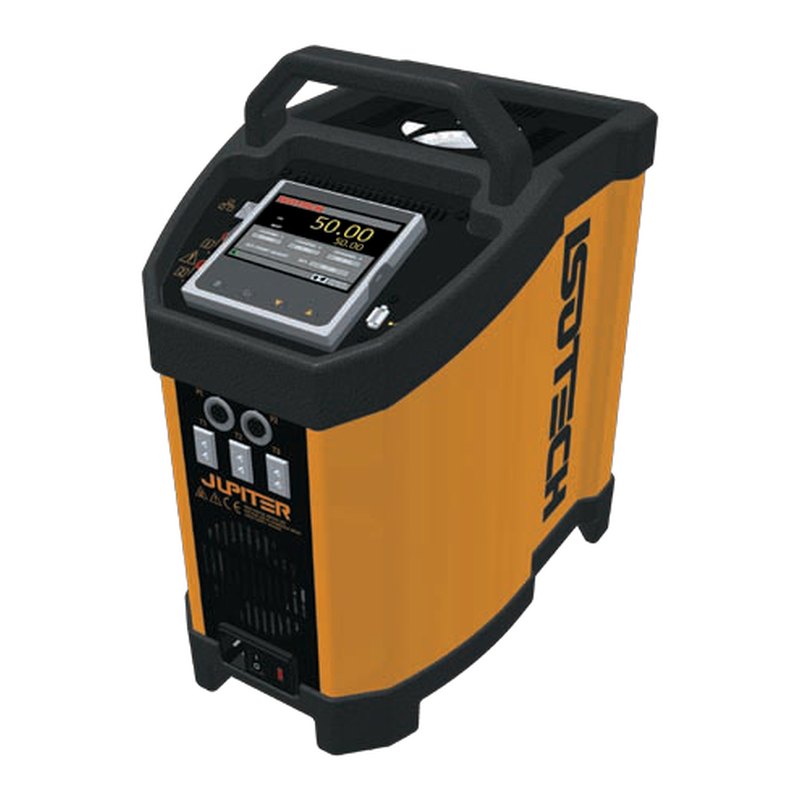

Isotech Jupiter 4852 dry block calibrator, 35 to 660 °C
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1441 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Isotech |
| Model | Jupiter 4852 |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Wide range to 660 °C, matched to the upper limit of high-temperature semi-standard PRTs | |
| Copper block with custom heater over an extended length for superior uniformity | |
| Fast heating (30 → 650 °C in 20 min) for field use | |
| Blackbody (infrared) and surface sensor accessories; air-cooling adaptor | |
| Advanced | reference and test inputs, cycling, logging; meets EURAMET cg-13 |
|---|---|
Applications
| Field and lab calibration of thermocouples and platinum resistance thermometers |
General
| Calibration volume | 35 mm Ø × 148 mm deep |
|---|---|
| Standard insert | 6 pockets: 2 × 4.5, 2 × 6.4, 1 × 8.0, 1 × 9.5 mm, all 140 mm deep (alternative inserts B, C, blank, custom) |
| Power | 1,000 W, 115 or 230 V AC |
| Dimensions | 384 H × 212 W × 312 D mm |
| Weight | 8.5 kg |
Key specifications
| Temperature range | 35 to 660 °C |
|---|---|
| Stability | ±0.02–0.03 °C (Basic/Site); ±0.015–0.025 °C (Advanced) |
| Display accuracy | 0.5 °C (6.5 mm well) |
| Calibration volume | 35 mm Ø × 148 mm, 6-pocket insert |
| Versions | Basic, Site, Advanced |
| Power | 1,000 W, 115 or 230 V AC |
Performance
| Range | 35 to 660 °C |
|---|---|
| Stability, Advanced | ±0.015 °C at 100 °C; ±0.025 °C at 650 °C |
| Stability, Basic/Site | ±0.02 °C at 100 °C; ±0.03 °C at 650 °C |
| Display resolution | 0.01 °C |
| Display accuracy | 0.5 °C |
| Blackbody source | ±0.3 °C |
| Surface sensor calibrator | ±0.5 °C |
| Heating / cooling | 30 → 650 °C in 20 min; 650 → 150 °C in 60 min |
Advanced input channels
| RTD input | ±0.005% of reading |
|---|---|
| Thermocouple input | E, J, K, N ±0.2 °C at 660 °C; R ±0.6 °C; S ±0.7 °C |
| CJC accuracy | ±0.35 °C |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Isotech, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Isotech Jupiter 4852 is a portable dry block calibrator for 35 °C to 660 °C, ideal for thermocouples and platinum resistance thermometers. Its copper block with an extended heater gives excellent uniformity, it heats from 30 °C to 650 °C in 20 minutes, and stability reaches ±0.015 °C in the Advanced version.
The standard insert holds up to six thermometers, and blackbody and surface-sensor accessories extend it to infrared and surface measurement.
Argonmark Ltd supplies Isotech instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
