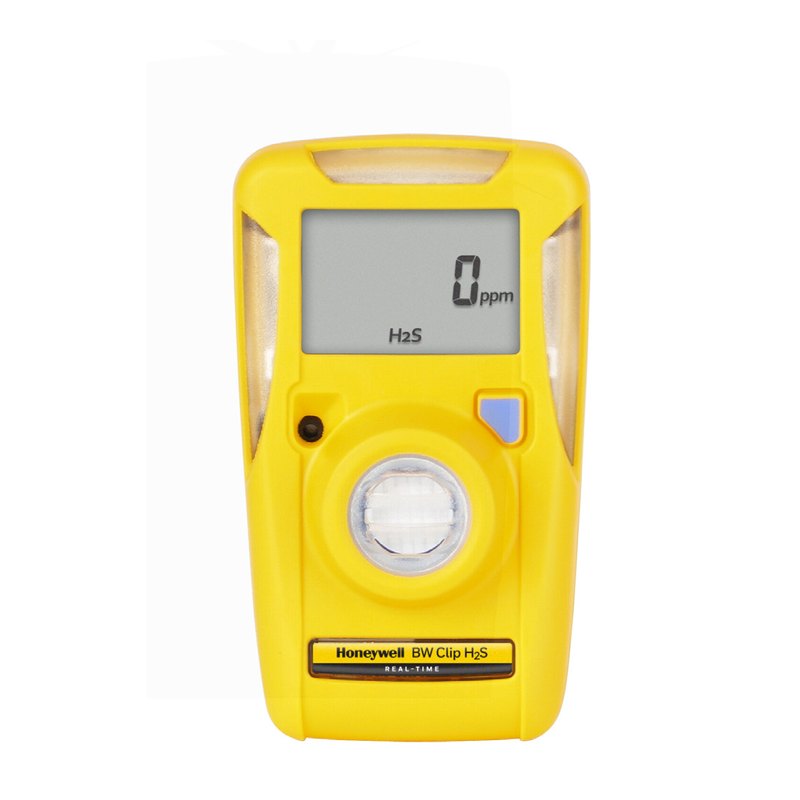

Honeywell BW Clip maintenance-free single-gas detector (H₂S, CO, O₂ or SO₂)
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Gas & flame detection
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1450 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Honeywell BW |
| Model | BW Clip / BW Clip Real Time |
| Technical | |
| Type | Gas & flame detection |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Maintenance-free | just activate and it runs continuously for 2 or 3 years |
|---|---|
| BW Clip Real Time version shows live gas level and can be calibrated | |
| Surecell dual-reservoir sensor for performance and longevity in harsh conditions | |
| Reflex Technology daily automatic self-test of sensor, battery and electronics | |
| Hibernation case extends life of 2-year H₂S and CO units when not in use | |
| Logs the 35 most recent gas events and bump tests; IntelliDoX compatible | |
Applications
| Personal H₂S, CO, O₂ or SO₂ protection for workers in oil and gas, refineries, utilities and confined spaces |
Key specifications
| Gases | H₂S 0–100 ppm, CO 0–300 ppm, O₂ 0–25% vol, SO₂ 0–100 ppm |
|---|---|
| Operating life | 2 or 3 years continuous, no calibration, sensor or battery change |
| Alarms | Visual, vibrating, 95 dB audible; low and high |
| Protection | IP66/67 |
| Approvals | Class I Div 1 Groups A–D; ATEX / IECEx Ex ia IIC T4 Ga; ABS |
Sensors and default alarms
| H₂S | 0–100 ppm; low 10 ppm, high 15 ppm |
|---|---|
| CO | 0–300 ppm; low 35 ppm, high 200 ppm |
| O₂ (2-year) | 0–25.0% vol; low 19.5%, high 23.5% |
| SO₂ (2-year) | 0–100 ppm; low 5 ppm, high 10 ppm |
| Set points | User adjustable before and after activation |
Specification
| Size | 41 × 50 × 87 mm |
|---|---|
| Weight | 92 g |
| Operating temperature | H₂S −40 to +50 °C; CO and SO₂ −30 to +50 °C; O₂ −20 to +50 °C |
| Humidity | 5–95% RH non-condensing |
| Alarms | Wide-angle flash, vibration, 95 dB audible |
| Self-test | Internal diagnostic every 24 hours |
| Battery life | 2 years (H₂S, CO, O₂, SO₂) or 3 years (H₂S, CO) |
| Event log | 35 most recent events |
| Ingress protection | IP66/67 |
| Approvals | Class I Div 1 Groups A–D; Class I Zone 0 IIC; ATEX II 1G Ex ia IIC T4 Ga; IECEx Ex ia IIC T4 Ga; CE; ABS; CU TR Ex |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Honeywell BW, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Honeywell BW Clip is a wearable single-gas detector for H₂S, CO, O₂ or SO₂ that runs continuously for two or three years with no calibration, sensor replacement or battery charging. It weighs 92 g, alarms with flash, vibration and a 95 dB buzzer, and checks itself automatically every 24 hours.
The Real Time version adds a live gas reading and calibration. It is IP66/67 rated and intrinsically safe to ATEX/IECEx Ex ia IIC and Class I Div 1, and logs its last 35 gas events and bump tests.
Argonmark Ltd supplies Honeywell BW instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
