Honeywell BW Clip4 four-gas detector (H₂S, CO, O₂, LEL), 2-year always-on
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Gas & flame detection
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1451 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Honeywell BW |
| Model | BW Clip4 |
| Technical | |
| Type | Gas & flame detection |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Always on for two years | no charging, battery swaps or sensor replacement |
|---|---|
| LED infrared combustible gas sensor (%LEL or 0–5% vol methane) | |
| Real-time concentrations on LCD; one-button tamper-proof operation | |
| Daily full self-test of sensors, battery, circuitry and alarms | |
| Flashing red non-compliance indicator when bump test is overdue | |
| Logs 70 events; IntelliDoX docking compatible; black or yellow housing | |
Applications
| Four-gas personal protection for confined-space entry, oil and gas, refineries and utilities |
Key specifications
| Gases | H₂S 0–100 ppm, CO 0–1,000 ppm, O₂ 0–25% vol, LEL 0–100% (IR) |
|---|---|
| Operating life | 2 years continuous, no charging or battery/sensor change |
| Alarms | Visual, vibrating, 95 dB; low, high, TWA, STEL, over-limit |
| Protection | IP68 |
| Approvals | Class I Div 1 Groups A–D; ATEX / IECEx Ex ia IIC T4 Ga |
Sensors
| H₂S | 0–100 ppm, resolution 1 / 0.1 ppm |
|---|---|
| CO | 0–1,000 ppm, 1 ppm |
| O₂ | 0–25% vol, 0.1% vol |
| Combustible (IR) | 0–100% LEL, 1% LEL (or methane 0–5.0% v/v) |
| Note | IR sensor cannot detect some combustibles, e.g. hydrogen and acetylene |
Specification
| Size | 120 × 68 × 32 mm |
|---|---|
| Weight | 233 g |
| Operating temperature | −20 to +50 °C |
| Humidity | 5–95% RH continuous |
| Alarms | Visual, vibrating, 95 dB audible; low, high, TWA, STEL, OL |
| Self-test | Every 24 hours |
| Battery life | Two years continuous |
| Event log | 70 most recent events |
| Ingress protection | IP68 |
| Approvals | Class I Div 1 Groups A–D; Class I Zone 0 IIC; ATEX II 1G Ex ia IIC T4 Ga; IECEx Ex ia IIC T4 Ga; CE |
| Warranty | Two years including sensors and battery |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

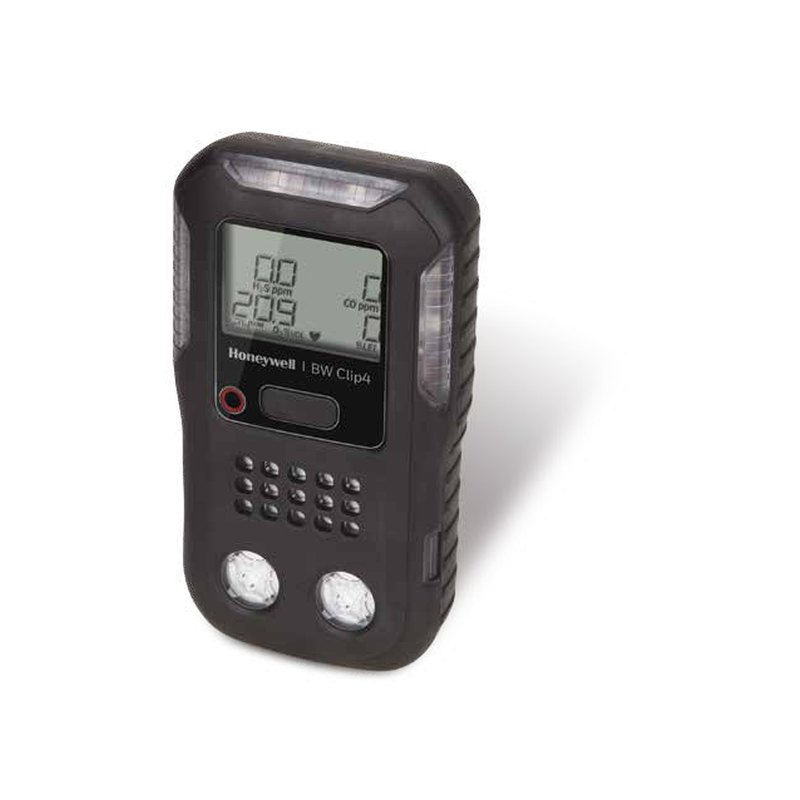

Photo: courtesy of Honeywell BW, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Honeywell BW Clip4 is a wearable four-gas detector for H₂S, CO, oxygen and combustible gases that stays on for two years without charging, battery changes or sensor replacement. It uses an infrared LEL sensor, shows real-time readings and alarms for low, high, TWA, STEL and over-range conditions.
It weighs 233 g, is rated IP68 and intrinsically safe to ATEX/IECEx Ex ia IIC and Class I Div 1, tests itself every day and docks into IntelliDoX for bump tests and records.
Argonmark Ltd supplies Honeywell BW instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
