Honeywell BW GasAlertMicroClip X3 four-gas detector, 5-year life
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Gas & flame detection
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1452 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Honeywell BW |
| Model | GasAlertMicroClip X3 |
| Technical | |
| Type | Gas & flame detection |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Five-year life expectancy with new long-life oxygen sensor; three-year warranty | |
| Guaranteed full 12-hour shift down to −20 °C without compromising LEL detection of hydrogen and acetylene | |
| IntelliFlash green light shows bump-test compliance | |
| Reflex Technology automatic sensor self-test | |
| MicroDock II and Fleet Manager II compatible; five languages |
Applications
| Multi-gas personal monitoring for oil and gas, refineries, confined spaces and utilities |
Key specifications
| Gases | Up to 4: H₂S 0–100 ppm, CO 0–500 ppm, O₂ 0–30%, LEL 0–100% / CH₄ 0–5% v/v |
|---|---|
| Battery | Rechargeable Li-polymer, 18 h (recharge < 6 h) |
| Alarms | Visual, vibrating, 95 dB; low, high, TWA, STEL, OL |
| Protection | IP68 |
| Approvals | Class I Div 1 Groups A–D; ATEX / IECEx Ex ia IIC T4 Ga |
Sensors
| H₂S | 0–100 ppm, 1 ppm |
|---|---|
| CO | 0–500 ppm, 1 ppm |
| O₂ | 0–30.0%, 0.1% |
| Combustible | 0–100% LEL (1%) or 0–5.0% v/v methane (0.1%) |
| Alarm set points | User adjustable |
Specification
| Size | 113 × 60 × 32 mm |
|---|---|
| Weight | 179 g |
| Operating temperature | −20 to +50 °C |
| Humidity | 0–95% RH non-condensing |
| Battery | Li-polymer, typical 18 h, recharges in < 6 h |
| Ingress protection | IP68 |
| EMC | EMC Directive 2004/108/EC |
| Approvals | Class I Div 1 Groups A–D; ATEX II 1G Ex ia IIC T4 Ga; IECEx Ex ia IIC T4 Ga; CE |
| Warranty | Three years including all sensors |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

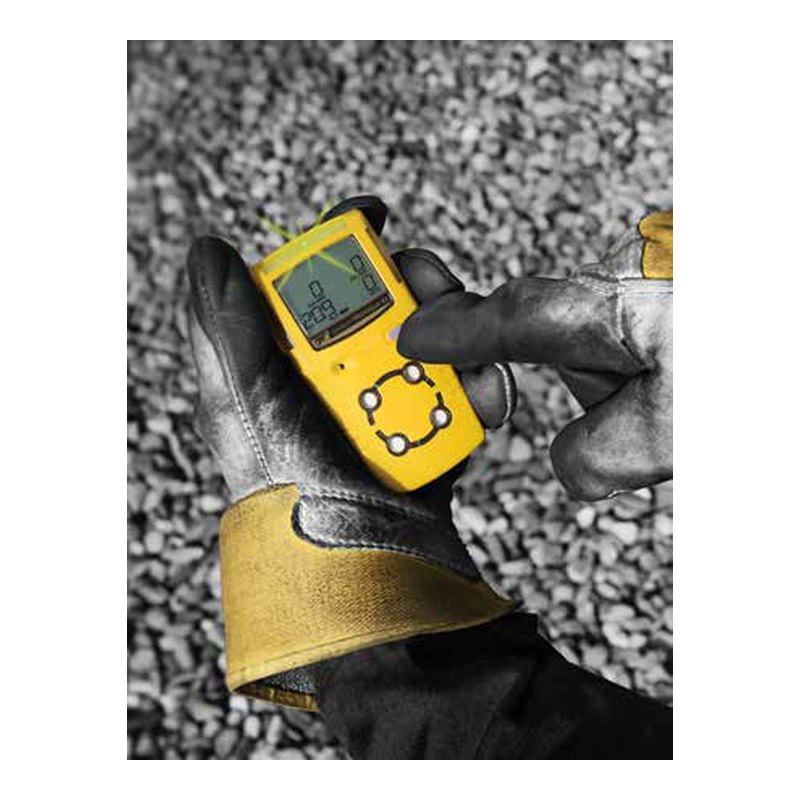

Photo: courtesy of Honeywell BW, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Honeywell GasAlertMicroClip X3 is a compact multi-gas detector that monitors up to four hazards: H₂S, CO, oxygen and combustible gases. Its rechargeable battery runs 18 hours and is guaranteed for a 12-hour shift down to −20 °C, and a new oxygen sensor gives the detector a five-year life with a three-year warranty.
It weighs 179 g, is IP68 rated and intrinsically safe to ATEX/IECEx Ex ia IIC, and works with the MicroDock II station for automatic bump tests and calibration.
Argonmark Ltd supplies Honeywell BW instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
