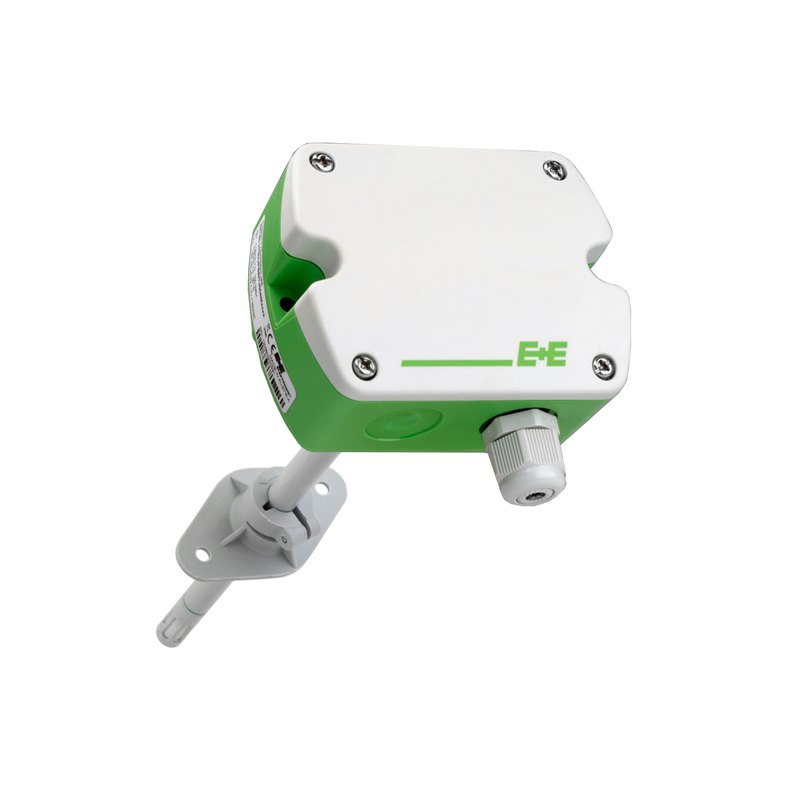

E+E EE160 humidity and temperature sensor for building automation, wall or duct mount
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Moisture & humidity
- Signal / Protocol: 4–20 mA, Modbus, RS-485, Voltage
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1455 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | E+E Elektronik |
| Model | EE160 |
| Technical | |
| Type | Moisture & humidity |
| Signal / Protocol | 4–20 mA, Modbus, RS-485, Voltage |
| Hazardous area | General purpose |
Datasheet
Technical features
| Encapsulated electronics inside the probe and proprietary sensor coating for long-term stability in polluted air | |
| Wall or duct mount; electronics on the back of the board protected during installation | |
| Bayonet cover opens with ¼ turn; ½ in conduit knockout | |
| Optional configuration adapter and free PCS10 software for scaling, RS485 settings and 1- or 2-point adjustment | |
| Inspection certificate to DIN EN 10204-3.1 |
Applications
| HVAC and building automation humidity and temperature control |
General
| Supply | 4–20 mA: (10 V + RL × 20 mA) to 35 V DC; 0–10 V and RS485: 15–35 V DC or 24 V AC ±20% |
|---|---|
| Current consumption | Max. 40 mA (4–20 mA); 5 mA DC / 13–15 mA AC (0–10 V, RS485) |
| Connection | Screw terminals to 1.5 mm², M16 cable gland |
| Enclosure | Polycarbonate UL94 V-0, IP65 / NEMA 4X |
| Storage | −40 to +60 °C |
| EMC | EN 61326-1, EN 61326-2-3 industrial; FCC Part 15 Class A |
| Conformity | EN 45545-2 (HL3) |
Key specifications
| Measured variables | Relative humidity, temperature |
|---|---|
| Range | 0–100% RH; −40 to +60 °C |
| Accuracy | ±2.5% RH at 23 °C (±3% at 0–40 °C) |
| Output | 2 × 4–20 mA or 0–10 V, or RS485 Modbus RTU / BACnet MS/TP; passive T sensor |
| Power supply | 10–35 V DC (4–20 mA); 15–35 V DC or 24 V AC (0–10 V, RS485) |
| Enclosure | Polycarbonate, IP65 / NEMA 4X |
Measurement
| Humidity range | 0–100% RH, non-condensing |
|---|---|
| Humidity accuracy | ±2.5% RH (23 °C); ±3% RH (0–40 °C); ±4% RH (−20 to +60 °C); ±5% RH (−40 to −20 °C) |
| Temperature range | −40 to +60 °C |
| Calibration | Traceable to NIST, PTB, BEV (k = 2) |
Outputs
| Analog | 4–20 mA two-wire (RL ≤ 500 Ω) or 0–10 V (load < 1 mA) |
|---|---|
| Passive T sensor | 4-wire, type per order code |
| Digital | RS485: Modbus RTU (9,600–38,400 baud, FLOAT32/INT16) or BACnet MS/TP (9,600–115,200 baud) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of E+E Elektronik, used with permission (source) — background removed by Argonmark. All photo credits
Description
The E+E EE160 is a humidity and temperature sensor for building automation, available for wall or duct mounting in an IP65 / NEMA 4X polycarbonate housing. It measures 0–100% RH with ±2.5% RH accuracy at 23 °C and temperature from −40 to +60 °C, with encapsulated electronics and a coated sensing element for long-term stability.
Outputs are two 4–20 mA or 0–10 V channels, or RS485 with Modbus RTU or BACnet MS/TP, plus a passive temperature sensor; scaling and adjustment can be set with the PCS10 software.
Argonmark Ltd supplies E+E Elektronik instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
