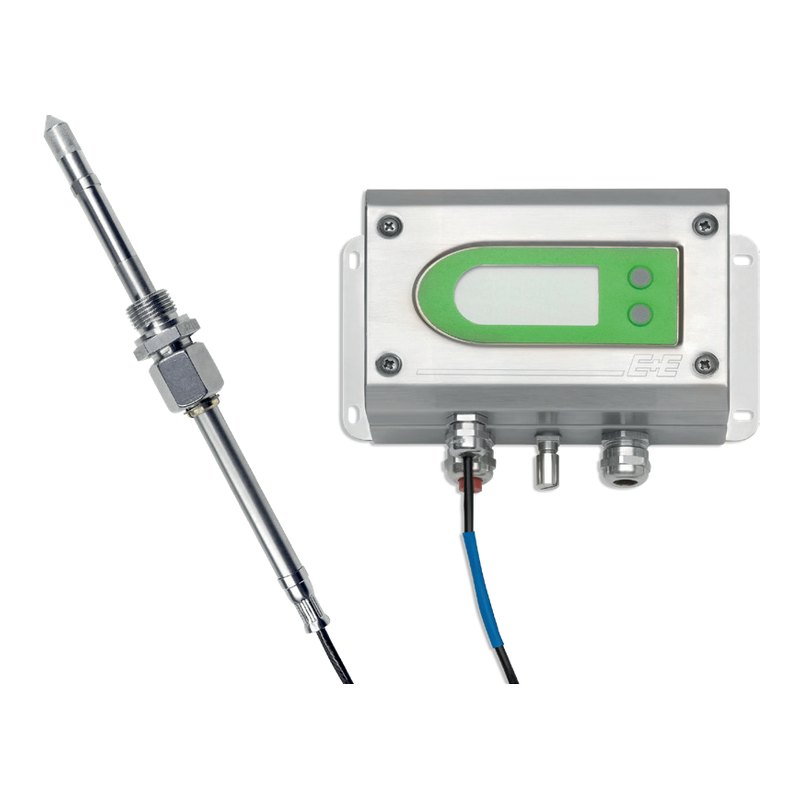

E+E EE300Ex-M1 intrinsically safe humidity and temperature transmitter, Zone 0/20, to 180 °C
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Moisture & humidity
- Signal / Protocol: 4–20 mA
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1456 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | E+E Elektronik |
| Model | EE300Ex-M1 |
| Technical | |
| Type | Moisture & humidity |
| Signal / Protocol | 4–20 mA |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Whole device can be installed in the hazardous area; remote probe classified up to T6 | |
| Stainless steel enclosure and probe for harsh industrial use | |
| Calculates dew point, frost point, wet bulb, vapour pressure, mixing ratio, absolute humidity and enthalpy | |
| Water activity and ppm water content in insulating, lubricating and hydraulic oils (ATEX/IECEx/KCs versions) | |
| Measuring section replaceable without rewiring; EE-PCA adapter and free EE-PCS software for set-up | |
| Inspection certificate to DIN EN 10204-3.1 |
Applications
| Chemical process control and pharmaceutical plants | |
| Explosive storage rooms, flour mills | |
| Oil purifiers and online monitoring of lubrication and hydraulic oils |
Construction
| Enclosure | Stainless steel 1.4404, IP65 / NEMA 4 |
|---|---|
| Probe | Stainless steel 1.4301, PTFE cable |
| Electronics temperature | −40 to +60 °C (−20 to +60 °C with display) |
| EMC | EN 61326-1, -2-3; FCC Part 15 Class B |
Key specifications
| Measured variables | RH, temperature; calculated dew/frost point, absolute humidity, mixing ratio, water activity, water in oil (ppm) |
|---|---|
| Range | 0–100% RH; −40 to +180 °C (remote probe) |
| Accuracy | ±(1.3 + 0.3% of mv)% RH (−15 to 40 °C, ≤ 90% RH) |
| Output | 2 × 4–20 mA two-wire, galvanically isolated; optional LCD |
| Pressure rating | Up to 20 bar (300 psi) |
| Approvals | ATEX, IECEx, FM (USA/Canada), KCs: Ex ia, Zone 0/20, Class I–III Div 1 |
Measurement
| Humidity range | 0–100% RH |
|---|---|
| Humidity accuracy | ±(1.3 + 0.3% mv)% RH (−15 to 40 °C, ≤ 90% RH); ±2.3% RH (> 90%); ±(1.4 + 1% mv) (−25 to 70 °C); ±(1.5 + 1.5% mv) (−40 to 180 °C) |
| Response | t90 < 30 s (stainless filter, 20 °C) |
| Temperature range | Wall mount −40 to +60 °C; remote probe −40 to +180 °C |
| Dew / frost point | −40 to +100 °C (remote probe) |
| Water activity / content | aw 0–1; X 0–100,000 ppm |
| Pressure | Pressure tight up to 20 bar |
Electrical
| Outputs | 2 × 4–20 mA (2-wire), freely scalable, galvanically isolated |
|---|---|
| Supply | (9 V + RL × 0.02) to 28 V DC, via IS supply or Zener barriers |
| Current | Max. 20 mA per channel |
| Entity parameters | Ui 28 V, Ii 100 mA, Pi 700 mW, Ci 2.2 nF, Li ≈ 0 |
| Connection | Screw terminals to 1.5 mm², M16 or M20 gland |
Approvals
| ATEX | II 1 G Ex ia IIC T4 Ga / II 1 D Ex ia IIIC T80 °C Da (transmitter); remote probe Ex ia IIC T6–T1 Ga |
|---|---|
| IECEx | Ex ia IIC T4 Ga; Ex ia IIIC T131 °C Da; remote probe T6–T1 |
| FM USA / Canada | Class I, II, III Div 1 Groups A–G T4; Class I Zone 0 AEx ia IIC; Zone 20 AEx ia IIIC |
| Korea | KCs gas and dust certificates |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of E+E Elektronik, used with permission (source) — background removed by Argonmark. All photo credits
Description
The E+E EE300Ex-M1 is an intrinsically safe humidity and temperature transmitter that can be installed entirely in Zone 0/20 or Class I–III Div 1 hazardous areas. With its stainless steel remote probe it measures 0–100% RH and −40 to +180 °C at pressures up to 20 bar, with accuracy as good as ±(1.3 + 0.3% of reading)% RH, and it calculates dew point, absolute humidity and other moisture values.
Versions with ATEX/IECEx/KCs approval also measure water activity and ppm water in insulating, lubricating and hydraulic oils. It has two isolated 4–20 mA outputs and an optional display, and holds ATEX, IECEx, FM and KCs approvals.
Argonmark Ltd supplies E+E Elektronik instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
