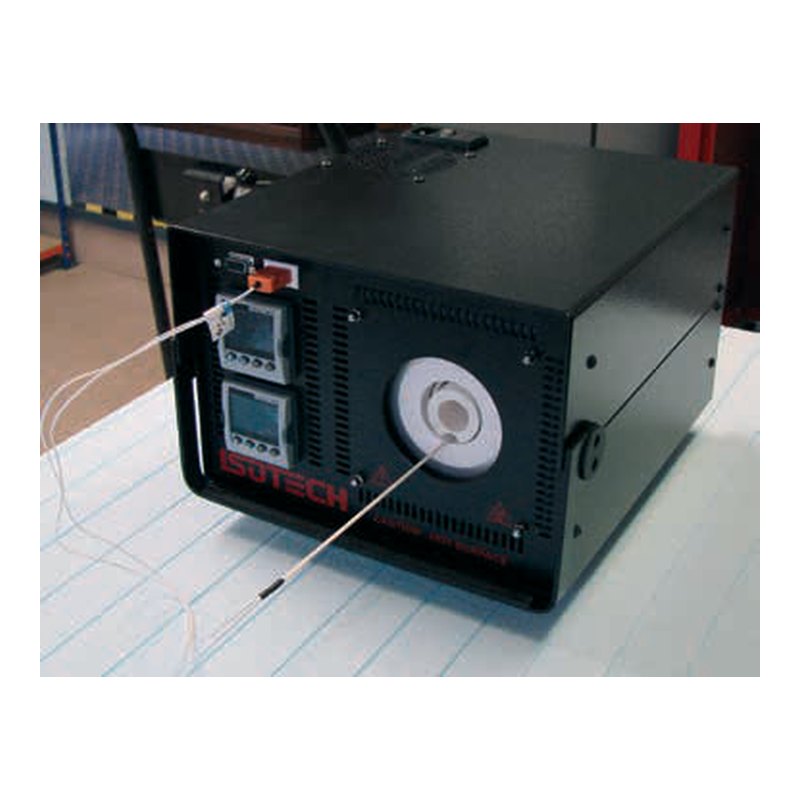

Isotech 970 Pegasus R blackbody source, 150 to 1,200 °C
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1458 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Isotech |
| Model | 970 Pegasus R |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Compact furnace for calibrating radiation pyrometers (blackbody design from an NPL study) | |
| Controller sets temperature; independent indicator with sensor in the cavity reads radiance temperature | |
| Removable cavity can be replaced by indium, tin, zinc, aluminium or silver fixed-point cells | |
| NPL-calibrated example reproducible within ±2 °C; aperture uniform within 0.3 °C at 444 °C | |
| UKAS certificate available for the built-in indicator and probe 935-14-40; PC interface included |
Applications
| Calibration of high-temperature radiation pyrometers and IR thermometers |
Key specifications
| Temperature range | 150 to 1,200 °C |
|---|---|
| Emissivity | 0.995 |
| Stability | ±0.1 °C |
| Cavity | 20 mm Ø × 65 mm |
| Wavelength range | 0.9 to 14 µm |
| Power | 800 W, 100–130 or 208–240 V AC |
Specification
| Temperature range | 150 to 1,200 °C |
|---|---|
| Emissivity | 0.995 |
| Stability | ±0.1 °C |
| Display resolution | 0.1 °C to 999.9 °C; 1 °C from 1,000 to 1,200 °C |
| Cavity | 20 mm diameter × 65 mm deep (fixed-point cell cavity 10 × 65 mm, 120° cone) |
| Wavelength range | 0.9 to 14 µm |
| Heating rate | 25 °C/min |
| Power | 800 W typical; 100–130 or 208–240 V AC 50/60 Hz |
| Dimensions | 310 H × 265 W × 200 D mm |
| Weight | 13 kg |
| Options | In, Sn, Zn, Al, Ag blackbody cells; probe 935-14-40; carrying case; gas flow system |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Isotech, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Isotech 970 Pegasus R is a compact blackbody furnace for calibrating radiation pyrometers from 150 °C to 1,200 °C. Its 20 mm × 65 mm cavity has an emissivity of 0.995 and stability of ±0.1 °C, covering thermometers working from 0.9 to 14 µm.
An independent indicator with a sensor in the cavity shows the true radiance temperature, and the cavity can be swapped for indium, tin, zinc, aluminium or silver fixed-point cells for the lowest uncertainties.
Argonmark Ltd supplies Isotech instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
