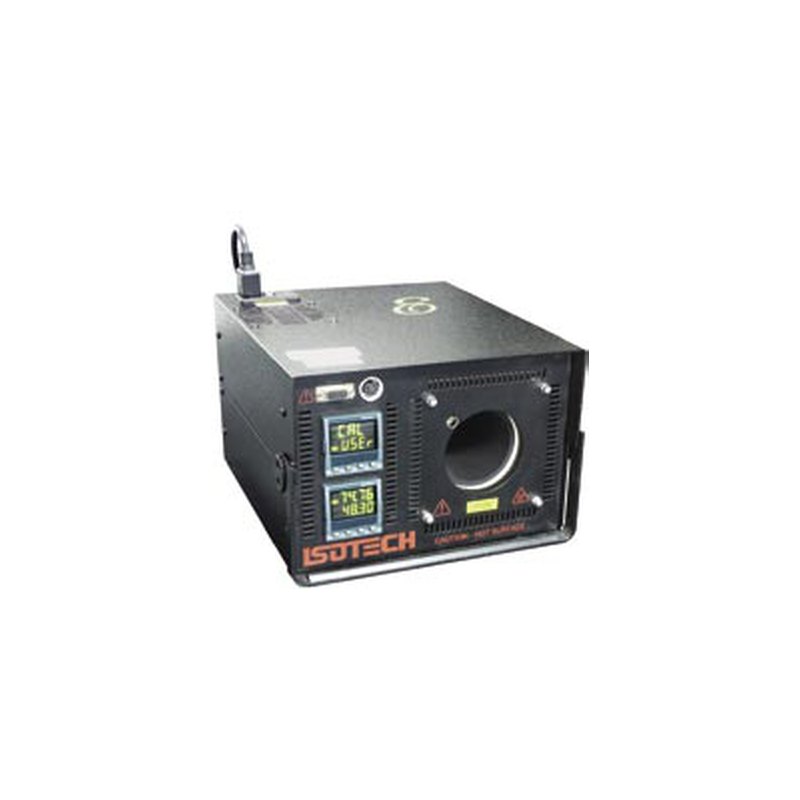

Isotech 976 Gemini R medium-temperature blackbody source, 30 to 550 °C, 65 mm cavity
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1459 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Isotech |
| Model | 976 Gemini R |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Large 65 mm cavity for medium-temperature infrared thermometers | |
| Independent indicator with removable sensor; sensor can be calibrated in a dry well or bath | |
| Accepts gallium, indium, tin and zinc hockey-puck fixed-point cells | |
| Orifice plates restrict the aperture to 50, 40, 30, 20 or 10 mm | |
| NIST certificate for indicator and probe; PC interface and Cal NotePad software |
Applications
| Calibration of medium-temperature infrared thermometers and thermal imagers |
Key specifications
| Temperature range | 30 to 550 °C (700 °C version available) |
|---|---|
| Accuracy | ±2 °C |
| Emissivity | > 0.995 |
| Stability | ±0.2 °C |
| Cavity | 65 mm Ø × 160 mm |
| Power | 1,000 W, 110 V AC |
Specification
| Temperature range | 30 to 550 °C |
|---|---|
| Accuracy | ±2 °C (controller vs cavity radiance) |
| Emissivity | > 0.995 |
| Stability | ±0.2 °C |
| Radial uniformity | ±1 °C (100–500 °C, 65 mm target) |
| Display resolution | 0.01 °C to 99.99 °C; 0.1 °C to 550 °C |
| Cavity | 65 mm diameter × 160 mm deep |
| Time to temperature | 45 min |
| Power | 1,000 W typical, 110 V AC ±10% |
| Dimensions | 310 × 265 × 200 mm (H × W × D) |
| Weight | 10 kg |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Isotech, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Isotech 976 Gemini R is a medium-temperature blackbody source for calibrating infrared thermometers from 30 °C to 550 °C (a 700 °C version is also available). Its large 65 mm × 160 mm cavity has an emissivity above 0.995, stability of ±0.2 °C and ±2 °C agreement between controller and radiance temperature.
An independent indicator reads the cavity temperature, orifice plates reduce the aperture for smaller targets, and fixed-point cells can be fitted for primary-level work.
Argonmark Ltd supplies Isotech instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
