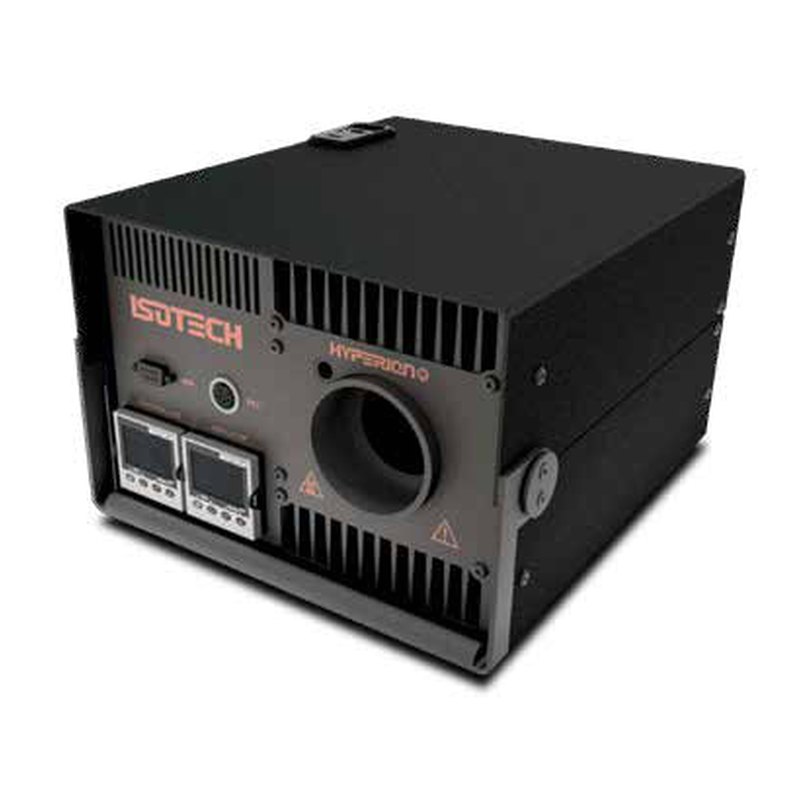

Isotech 982 Hyperion R low-temperature blackbody source, −20 to 125 °C
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1460 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Isotech |
| Model | 982 Hyperion R |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Primary radiation source for infrared thermometers and thermal imagers from sub-zero to 125 °C | |
| Isothermal cavity | higher emissivity than flat-plate sources |
|---|---|
| Distributed thermoelectric heat pumps | uniform, vibration-free cooling |
| Built-in independent indicator and platinum resistance thermometer; three-point certificate included | |
| Optional 7N gallium fixed-point cell (29.7646 °C); orifice plates 10–40 mm | |
Applications
| Calibration of non-contact (including medical) infrared thermometers and thermal imagers |
Key specifications
| Temperature range | −20 to 125 °C (min. 40 °C below ambient) |
|---|---|
| Emissivity | > 0.995 |
| Stability | ±0.1 °C |
| Aperture / cavity | 50 mm Ø × 150 mm |
| Cooling | Solid-state thermoelectric |
| Power | 200 W, 80–264 V AC |
Specification
| Temperature range | −20 to 125 °C (in 20 °C ambient; min. 40 °C below ambient) |
|---|---|
| Emissivity | > 0.995 |
| Stability | ±0.1 °C |
| Display resolution | 0.01 to 0.1 °C |
| Aperture | 50 mm diameter |
| Cavity depth | 150 mm |
| PC interface | Included |
| Power | 200 W typical, universal 80–264 V 50/60 Hz |
| Dimensions | 310 H × 265 W × 200 D mm |
| Weight | 8.3 kg |
| Calibration | Three-point traceable certificate; UKAS and radiometric calibration available |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Isotech, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Isotech 982 Hyperion R is a portable low-temperature blackbody source for calibrating infrared thermometers and thermal imagers from −20 °C to 125 °C. Its isothermal 50 mm × 150 mm cavity gives an emissivity above 0.995, and thermoelectric heat pumps provide uniform, vibration-free heating and cooling with ±0.1 °C stability.
A built-in indicator with a platinum resistance thermometer establishes traceability, and an optional gallium fixed-point cell gives a precise 29.7646 °C reference.
Argonmark Ltd supplies Isotech instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
