Isotech 999 Medusa R primary laboratory blackbody source, 30 to 550 °C
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1461 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Isotech |
| Model | 999 Medusa R |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Primary laboratory source for radiation pyrometers | |
| Freezes and melts large blackbody fixed-point cells (indium, tin, zinc) for uncertainties suitable for national standards | |
| Can also be used for comparison calibration | |
| PC interface and Cal NotePad software included |
Applications
| National and accredited laboratory calibration of radiation thermometers |
Key specifications
| Temperature range | 30 to 550 °C |
|---|---|
| Accuracy | To ±0.05 °C (with fixed-point cells) |
| Emissivity | > 0.995 |
| Stability | ±0.05 °C |
| Cavity | 45 mm Ø × 285 mm |
| Power | 1,000 W, 110 V AC |
Specification
| Temperature range | 30 to 550 °C |
|---|---|
| Emissivity | > 0.995 |
| Stability | ±0.05 °C |
| Display resolution | 0.01 °C to 99.99 °C; 0.1 °C to 550 °C |
| Cavity | 45 mm diameter × 285 mm deep |
| Time to temperature | About 45 min |
| Controller vs radiance temperature | Within ±2 °C (comparison mode) |
| Power | 1,000 W typical, 110 V AC ±10% 50/60 Hz |
| Dimensions | 480 × 425 × 260 mm (H × W × D) |
| Weight | 17 kg |
| Accessories | Large indium, tin and zinc fixed-point cells; gas flow system |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

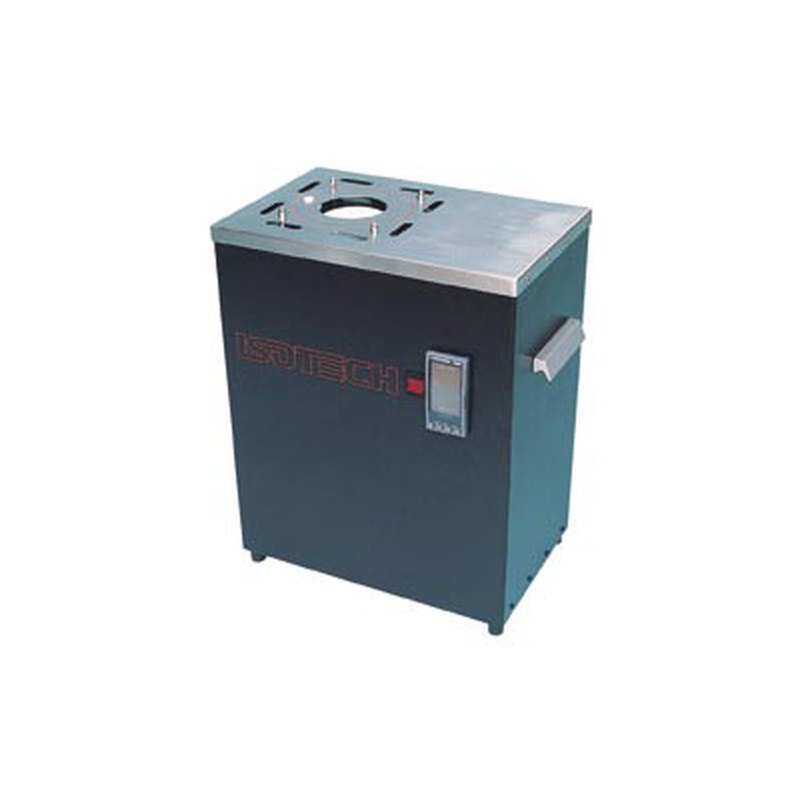

Photo: courtesy of Isotech, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Isotech 999 Medusa R is a primary laboratory blackbody source for radiation pyrometers from 30 °C to 550 °C. It is designed to freeze and melt large indium, tin and zinc blackbody fixed-point cells, giving uncertainties down to ±0.05 °C suitable for national standards, and can also be used for comparison calibration.
Its 45 mm × 285 mm cavity has an emissivity above 0.995 and ±0.05 °C stability.
Argonmark Ltd supplies Isotech instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
