Greyline DLT 2.0 ultrasonic differential level transmitter for barscreen control and open channel flow
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA, Relay / switch
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1462 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Greyline |
| Model | DLT 2.0 |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA, Relay / switch |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Two sensors above the channel, up- and downstream of the barscreen, give differential level for screen-cleaning control | |
| Downstream sensor can sit over a flume or weir to measure and totalize open channel flow | |
| Temperature probe inside each sensor compensates for changing air temperature | |
| Backlit matrix display of both levels, differential, flow, totalizer and relay states | |
| 5-key calibrator with English, French or Spanish menus | |
| Relays programmable for level control, differential control or flow-proportional pulse |
Applications
| Barscreen control at wastewater treatment plants and pump stations | |
| Combined sewer systems; differential level across filters and screens | |
| Open channel flow over flumes and weirs |
Options
| Data logger | 2 million points, 3 channels, USB output, Windows software |
|---|---|
| Hazardous areas | Intrinsically safe sensors and barriers for Class I, II, III Div 1, 2, Groups C–G |
| Other | Enclosure heater, sensor mounting stand, sunscreens, junction box |
Key specifications
| Measures | Upstream, downstream and differential level; open channel flow |
|---|---|
| Sensors | 2 × PZ15 non-contacting ultrasonic |
| Range | 4.6 m (optional 9.7 m) |
| Accuracy | ±0.25% of range or 2 mm, whichever is greater |
| Output | 3 × isolated 4–20 mA; 2 × 5 A SPDT relays |
| Power | 100–240 V AC (optional 9–32 V DC) |
Electronics
| Enclosure | NEMA 4X (IP66) polycarbonate, clear shatterproof cover |
|---|---|
| Accuracy | ±0.25% of range or 2 mm, whichever is greater |
| Repeatability and linearity | ±0.1% |
| Display | White backlit matrix |
| Power | 100–240 V AC 50/60 Hz, 3 W max.; optional 9–32 V DC |
| Analog outputs | 3 × isolated 4–20 mA (upstream, downstream/flow, differential), 1 kΩ max. |
| Relays | 2 × 5 A SPDT (optional 4 more, 6 total) |
| Operating temperature | −20 to +60 °C |
| Shipping weight | 6.8 kg |
Sensor (PZ15)
| Maximum range | 4.6 m (optional sensor 9.7 m) |
|---|---|
| Deadband | Programmable, min. 203 mm |
| Beam angle | 8° |
| Frequency | 92 kHz |
| Wetted material | PVC |
| Operating temperature | −40 to +65 °C |
| Mounting | ¾ in NPT with isolation coupling |
| Cable | RG62AU coaxial, 7.6 m (15.2 or 30.5 m; splice to 152 m) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

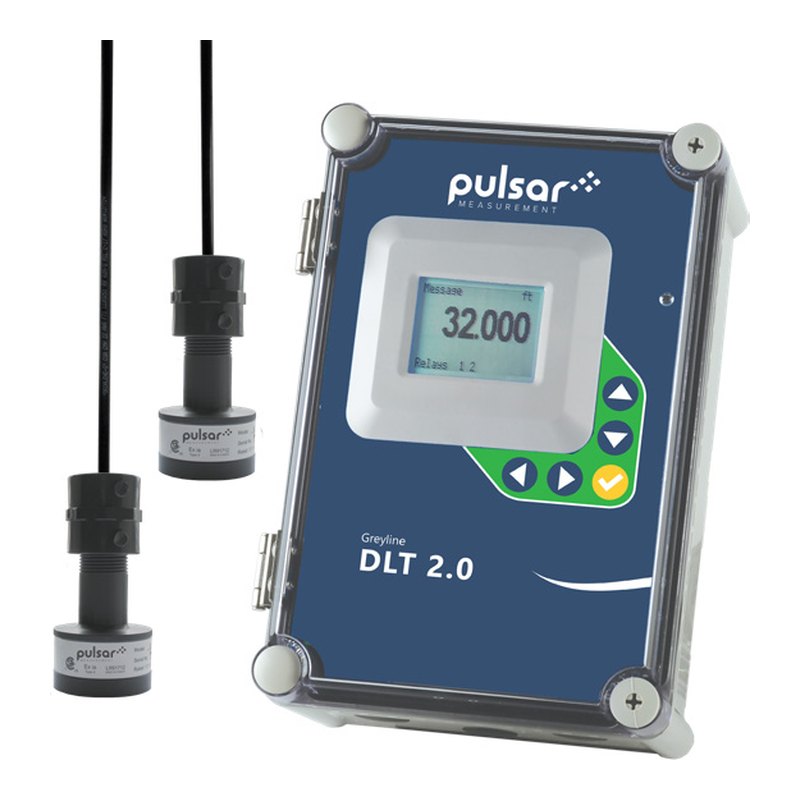

Photo: courtesy of Greyline, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Greyline DLT 2.0 is a differential level transmitter that uses two non-contacting ultrasonic sensors to measure level upstream and downstream of a barscreen and transmit the difference, typically to start screen cleaning. The downstream sensor can also be mounted over a flume or weir to measure and totalize open channel flow.
It reads to ±0.25% of range or 2 mm over a 4.6 m range (9.7 m optional), has three isolated 4–20 mA outputs and two programmable 5 A relays, and is housed in a NEMA 4X polycarbonate enclosure powered from 100–240 V AC or 9–32 V DC.
Argonmark Ltd supplies Greyline instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
