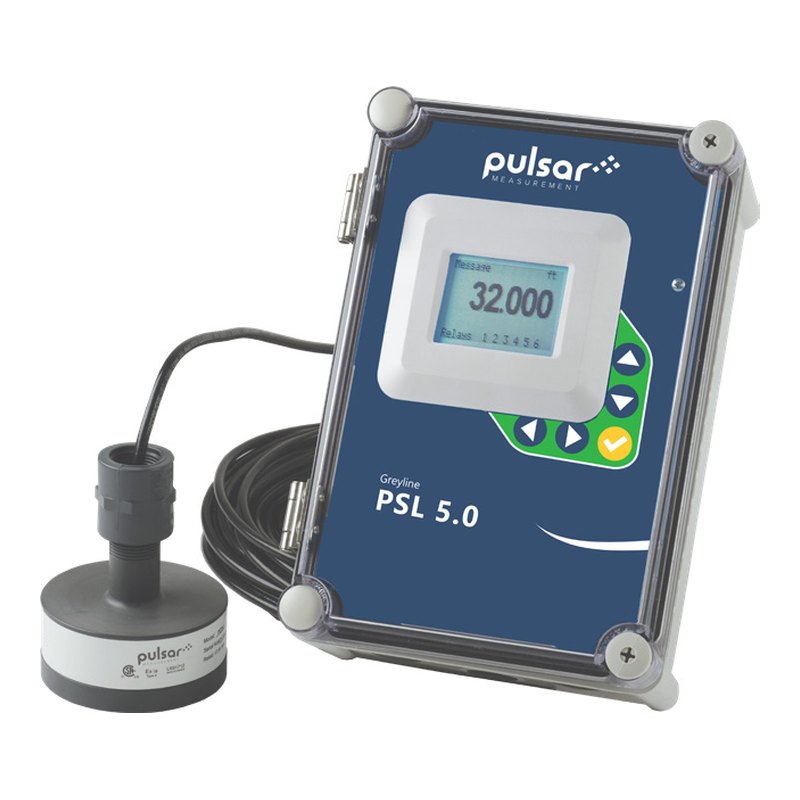

Greyline PSL 5.0 ultrasonic pump station level controller, 6 relays, 9.8 m range
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA, Relay / switch
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1463 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Greyline |
| Model | PSL 5.0 |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA, Relay / switch |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Six independently programmable relays for pump or valve control, level alarms, autodialers, temperature or fault alarms | |
| Pump alternation and sequencing, failsafe and loss-of-echo modes | |
| Display shows calibration menu, relay status, pump runtime reports and sensor status | |
| Password-protected 5-button keypad; level or range calibration in selectable units | |
| Optional 20-million-point data logger with USB flash drive output |
Applications
| Sewage and stormwater pump stations and wet wells | |
| Tank level control and alarms |
Options
| Sensors | Long and short range, all-PTFE, intrinsically safe, pressure sensor |
|---|---|
| Hazardous areas | Intrinsic safety barrier for the sensor; NEMA 7 explosion-proof enclosure for the electronics |
| Other | Enclosure heater, panel mount kit, junction box |
Key specifications
| Measures | Liquid level (non-contacting ultrasonic) |
|---|---|
| Range | 9.8 m (PZ34 sensor; longer-range sensors optional) |
| Accuracy | ±0.25% of range or 2 mm, whichever is greater |
| Output | Isolated 4–20 mA; 6 × 5 A SPDT relays |
| Power | 100–240 V AC (optional 9–32 V DC) |
| Enclosure | NEMA 4X (IP66) polycarbonate |
Controller
| Accuracy | ±0.25% of range or 2 mm, whichever is greater |
|---|---|
| Enclosure | NEMA 4X (IP66) polycarbonate, clear shatterproof cover |
| Operating temperature | −20 to +60 °C |
| Power | 100–240 V AC 50/60 Hz, 2.4–5.6 W; optional 9–32 V DC, 2.1–4.95 W |
| Analog output | Isolated 4–20 mA (1 kΩ) |
| Relays | 6 form C dry contacts, 5 A SPDT |
| Display | White backlit matrix |
| Shipping weight | 5 kg |
Sensor (PZ34)
| Maximum range | 9.8 m |
|---|---|
| Deadband | Programmable, min. 406 mm |
| Beam angle | 8° (mount 305 mm from the wall for every 3 m of depth) |
| Frequency | 42 kHz |
| Wetted material | PVC |
| Operating temperature | −40 to +65 °C |
| Operating pressure | 0 to 1.4 bar |
| Cable | RG62AU coaxial, 7.6 m (15.2 or 30.5 m; splice to 152 m) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Greyline, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Greyline PSL 5.0 is a pump station level controller that measures liquid level with a non-contacting ultrasonic sensor mounted above the surface. Its six programmable relays handle pump or valve control with alternation and sequencing, level alarms, autodialers and fault alarms, and it records pump runtimes.
With the standard PZ34 sensor it reads to ±0.25% of range or 2 mm over 9.8 m, gives an isolated 4–20 mA output, and runs from 100–240 V AC or 9–32 V DC in a NEMA 4X enclosure. Intrinsically safe sensors and an explosion-proof enclosure are available for hazardous areas.
Argonmark Ltd supplies Greyline instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
