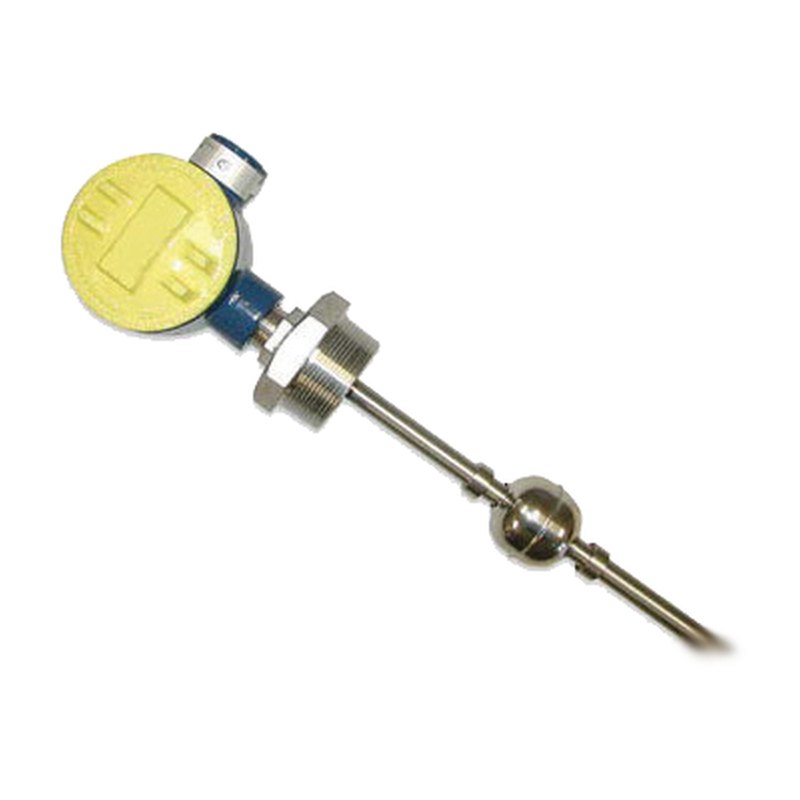

APG FLX hazardous-location multi-point magnetic float level switch, up to 7 points, 316L SS
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1464 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | FLX |
| Technical | |
| Type | Level |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Point level detection of liquids, including classified flammable liquids | |
| Built to order | switch positions and NO/NC state set per application |
|---|---|
| Up to seven switch points on one stem | |
| Durable 316L SS floats; shock-resistant construction; long reed-switch life | |
| Flanged, sanitary ferrule or NPT mounting, with optional slide connection | |
Applications
| Multi-point level alarms and pump control in tanks of flammable liquids | |
| Chemical and fuel storage containers |
Key specifications
| Switch points | 1 to 7, each NO or NC |
|---|---|
| Stem length | Up to 3,900 mm |
| Switch rating | 50 VA or 180 VA reed; max. 0.5 A AC, 220 V AC |
| Operating temperature | −10 to +85 °C |
| Wetted material | 316L stainless steel floats |
| Approvals | CSA C/US Class I Div 1 and Div 2, Groups C & D |
Specification
| Switch points | Up to 7 |
|---|---|
| Min. distance between switch points | 76.2 mm (3 in) |
| Min. distance to first and last float | 50.8 mm (2 in), more with slide connections |
| Switch rating | 50 VA or 180 VA |
| Max. current / voltage | 0.5 A AC / 220 V AC |
| Operating temperature | −10 to +85 °C |
| Stem length | Up to 3,900 mm (153 in) |
| Stem diameter | 13.7 mm |
| Cable entry | ¾ in |
| Certification | Class I Div 1, Groups C & D; Class I Div 2, Groups C & D (CSA C/US) |
Options
| Mounting | Flat-face ANSI 150# flange (2, 2½, 3 in); 3A sanitary ferrule (2 in); external NPT (1½, 2, 2½, 3 in) |
|---|---|
| Floats | 316L SS, 52.3 mm Ø (SG 0.56 or 0.92) or 42 mm Ø (SG 0.56 or 0.92; required for 1½ in NPT) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG FLX is a multi-point magnetic float level switch for point level detection of liquids, approved for Class I Div 1 and Div 2 (Groups C & D) hazardous locations. A single stem up to 3,900 mm long carries up to seven reed switches, each set to normally open or normally closed at the positions the application needs, with at least 76 mm between points.
Floats are 316L stainless steel for liquids of specific gravity 0.56 or 0.92, reed switches are rated 50 or 180 VA, and the switch mounts by ANSI flange, sanitary ferrule or NPT thread.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
