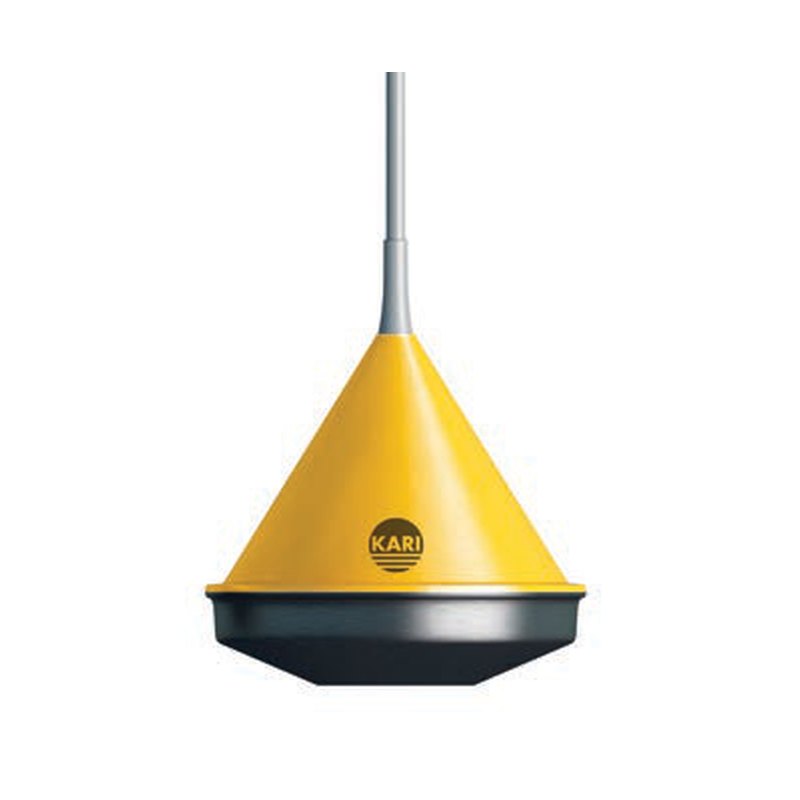

APG Kari cable-suspended float level switch, up to 4 switch points in one float
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1465 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | Kari (KA) |
| Technical | |
| Type | Level |
| Hazardous area | General purpose |
Datasheet
Technical features
| One float replaces up to four single-level float switches, avoiding tangled floats | |
| Built-in hysteresis on several models gives pump control without a separate controller | |
| Switching levels adjusted by moving the cable weight | |
| Mercury- and lead-free; high chemical compatibility | |
| Large, medium (C) and mini (M) floats; PVC, rubber, PTFE or oil-resistant TPU cable |
Applications
| Sewage lift stations and sumps | |
| Duplex pump control and backup pump control | |
| High and low level alarms in tanks |
Key specifications
| Switch points | Up to 4 in one float; 25 configurations, some with built-in hysteresis |
|---|---|
| Switching differential | 254–1,270 mm standard (63–1,900 mm optional) |
| Switch rating | 250 V AC/DC; 6 A resistive, 3 A inductive AC |
| Max. liquid temperature | 54 °C standard (80 °C option) |
| Protection | IP67, NEMA 6; max. 2 bar |
| Float material | Polypropylene |
Specification
| Switching differential | Standard 254–1,270 mm; optional 63–1,900 mm (1,520 mm M series) |
|---|---|
| Max. voltage | 250 V AC or DC |
| Max. AC current | 6 A resistive, 3 A inductive |
| Max. DC power | 75 VA (0.3 A at 250 V) |
| Max. liquid temperature | 54 °C standard; 80 °C high-temperature option |
| Max. pressure | 2 bar (28 psi) |
| Protection | IP67, NEMA 6 |
| Min. liquid specific gravity | 0.7 (standard float); 0.95 (mini float) |
| Cable | Up to 5 wires; 5 m or 15 m standard, other lengths to order |
| Materials | Polypropylene float; PVC cable standard (rubber, PTFE, TPU optional) |
| Weight | 0.6 to 1.8 kg depending on type |
| Certification | CSA General Purpose, CE; RoHS |
Float sizes
| Large (S) | 170 mm Ø |
|---|---|
| Medium (C) | 99 mm Ø |
| Mini (M) | 76 mm Ø (clean liquids, SG > 0.95, max. 2 switch points) |
| Cable weights | 400 g, 700 g or 1 kg, polypropylene covered (single-level floats ship without a weight) |
Configurations
| Model | Function |
|---|---|
| 1H / 1HE | High alarm or valve control / dual high alarm |
| 1L / 1LE | Low alarm or valve control / dual low alarm |
| 1C | High or low alarm, change-over (SPDT) |
| 2HL | High and low alarm |
| 2H / 2Y | Empty (pump-down) control; 2H with hysteresis |
| 2L / 2A | Fill (pump-up) control; 2L with hysteresis |
| 3H / 3Y, 3HE / 3YE | Empty control + high alarm (E = isolated alarm) |
| 3L / 3A, 3LE / 3AE | Fill control + low alarm (E = isolated alarm) |
| 4H / 4Y | Empty control + high and low alarm |
| 4L / 4A | Fill control + low and high alarm |
| 4H5E / 4L5E | Duplex pump empty / fill control + isolated alarm |
| 4Y39 | Four-level (lead/lag) empty pump control |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG Kari is a cable-suspended float level switch that holds up to four switch points in a single polypropylene float, so one float can replace up to four separate float switches. Twenty-five configurations cover high and low alarms, fill and empty pump control, duplex control and isolated alarms, and several models have built-in hysteresis that runs a pump directly through its starter without a separate controller.
Contacts are rated 250 V AC/DC, the float is sealed to IP67 / NEMA 6 for liquids up to 54 °C (80 °C option), and the switching differential is set by the position of the cable weight.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
