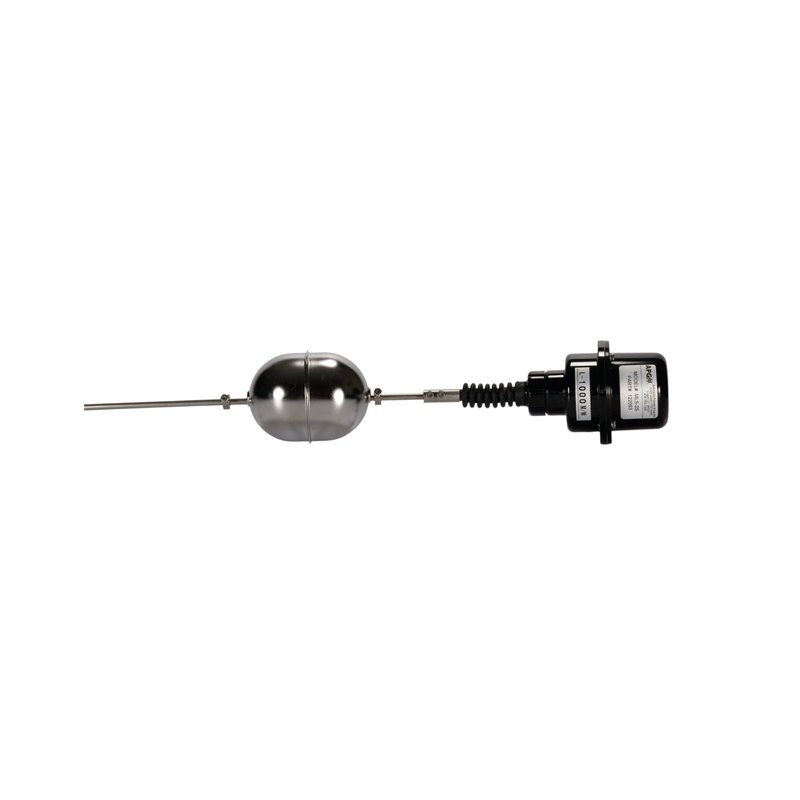

APG MLS mechanical float level switch for direct pump control, adjustable on/off levels
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1467 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | MLS |
| Technical | |
| Type | Level |
| Hazardous area | General purpose |
Datasheet
Technical features
| Large, buoyant float tolerates fouling and build-up in harsh liquids | |
| Switches a pump directly; on and off levels adjustable along the rod | |
| Rod length can be adjusted in the field | |
| Neoprene or silicone protective bellows |
Applications
| Direct on/off pump control in sumps, tanks and wells | |
| Liquids where fouling or build-up affects other sensors |
Key specifications
| Switch | SPDT miniature switch |
|---|---|
| Contact rating | 250 V 10 A AC; 250 V 0.4 A DC (resistive) |
| Rod length | 1,000 mm (longer to order) |
| Operating temperature | 0 to 80 °C |
| Materials | 304 SS stem and float; polycarbonate housing |
| Process connection | G ¾ |
Specification
| Switch | SPDT miniature switch |
|---|---|
| Contact rating | 250 V 10 A AC; 250 V 0.4 A DC resistive |
| Operating temperature | 0 to 80 °C |
| Protection | NEMA 1, IP42 |
| Housing | Polycarbonate |
| Stem / float | 304 stainless steel |
| Bellows | Neoprene (standard) or silicone |
| Rod length | 1,000 mm standard |
| Process connection | G ¾ |
| Dimensions | Housing 130 × 84 mm; float 110 mm Ø |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG MLS is a mechanical float level switch that controls a pump directly, with on and off levels set by adjustable stops along a 304 stainless steel rod. Its large, buoyant stainless steel float keeps working where fouling or build-up would affect smaller sensors.
An SPDT switch rated 250 V 10 A AC sits in a polycarbonate housing (IP42) protected by a neoprene or silicone bellows, and the 1,000 mm rod mounts with a G ¾ connection and can be shortened in the field.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
