APG NLS pneumatic liquid level switch, no power at the sensing point, 200 to 5,000 mm
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1468 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | NLS (NLS-1A, NLS-1S, NLS-3) |
| Technical | |
| Type | Level |
| Hazardous area | General purpose |
Datasheet
Technical features
| Rising liquid compresses an air column in the detecting pipe and actuates the switch through a diaphragm | |
| Nothing electrical in the liquid | suits sites without power at the tank or with hazardous conditions |
|---|---|
| Enlarged detecting tip for high-viscosity liquids | |
| Low cost | only a standard ½ in pipe is needed; long switch life |
Applications
| Level switching in viscous liquids, wastewater and oil | |
| Tanks in hazardous areas or without power at the sensing point |
Key specifications
| Switch | SPDT |
|---|---|
| Detection range | 200 to 5,000 mm |
| Contact rating | 250 V 10 A AC; 115 V 0.5 A DC (resistive) |
| Operating temperature | −20 to +70 °C |
| Diaphragm | Neoprene or Viton |
| Installation | Standard ½ in pipe as detecting tube |
Specification
| Switch | SPDT |
|---|---|
| Detection range | 200 to 5,000 mm |
| Contact rating | 250 V 10 A AC; 115 V 0.5 A DC resistive |
| Operating temperature | −20 to +70 °C |
| Housing | ADC12 aluminium die-cast (NLS-1A/1S); SS41 steel (NLS-3) |
| Protection | NEMA 4, IP42 (NLS-1A/1S); NEMA 1, IP20 (NLS-3) |
Models
| Model | Diaphragm | Use | Liquids |
|---|---|---|---|
| NLS-1A | Neoprene | Standard | Water, oil, wastewater |
| NLS-1S | Viton | Corrosive media | Water, oil, wastewater, chemicals, solvents |
| NLS-3 | Neoprene | Indoor, light duty | Water, oil, wastewater |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

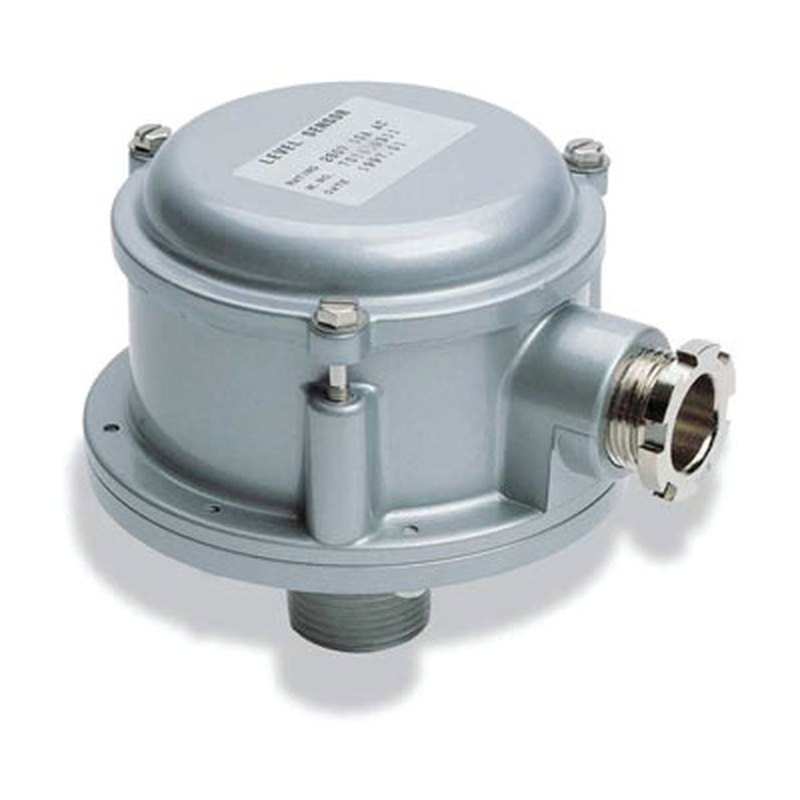

Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG NLS is a pneumatic level switch: as liquid rises in a standard ½ in detecting pipe it compresses the trapped air column, and the pressure acts on a diaphragm that operates an SPDT switch. Because nothing electrical touches the liquid, it suits viscous media, wastewater and sites where hazardous conditions exist or power is not available at the tank.
It detects levels from 200 to 5,000 mm, switches 250 V 10 A AC, and comes with a neoprene diaphragm (NLS-1A, NLS-3) or a Viton diaphragm for chemicals and solvents (NLS-1S).
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
