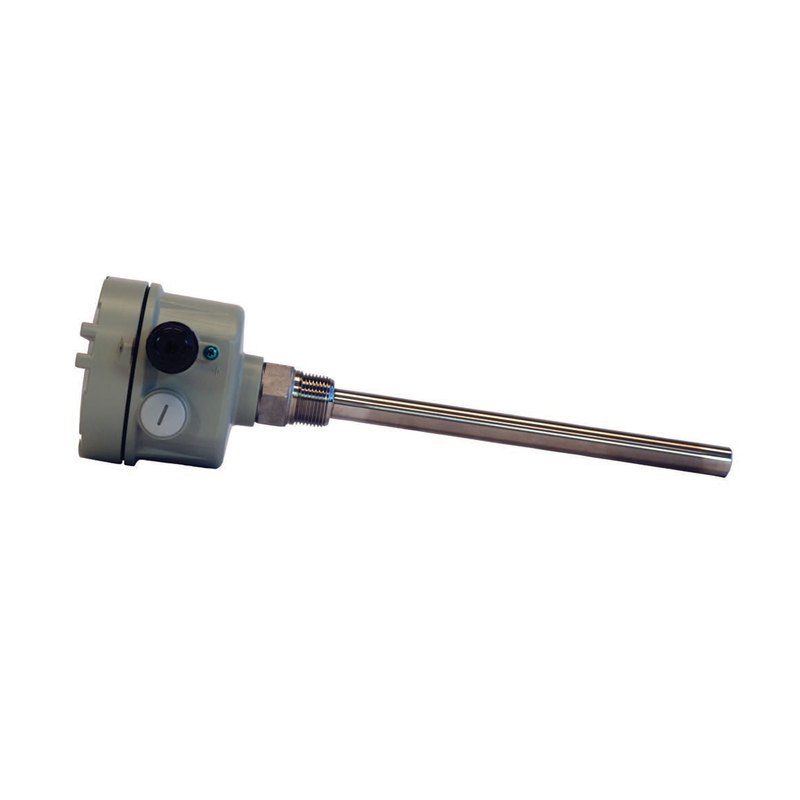

APG VBL vibrating rod level switch for bulk solids, 20 bar, adjustable sensitivity
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1469 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | VBL |
| Technical | |
| Type | Level |
| Hazardous area | General purpose |
Datasheet
Technical features
| Detects the presence of solids in medium and large hoppers | |
| Sensitivity dial | L for larger or denser particles, H for small or light particles (including fluidized powders) |
|---|---|
| Compact size, simple torque adjustment, low cost | |
| 304/316 SS vibrating rod, 275 mm long, 1 in PT process thread | |
Applications
| High and low level detection in silos and hoppers of grain, powders, pellets and granules |
Key specifications
| Medium | Bulk solids and powders |
|---|---|
| Switch | 1 SPDT, 5 A 250 V AC |
| Supply | 20–250 V AC/DC, 50/60 Hz, ≤ 15 VA |
| Max. pressure | 20 bar (290 psi) |
| Operating temperature | Housing −40 to +60 °C; rod −40 to +80 °C |
| Enclosure | Die-cast aluminium, IP65 / NEMA 4 |
Specification
| Switch output | 1 SPDT, 5 A at 250 V AC |
|---|---|
| Supply voltage | 20–250 V AC/DC, 50/60 Hz |
| Power consumption | ≤ 15 VA |
| Sensitivity | Adjustable dial (L / H) |
| Housing | Die-cast aluminium, IP65 / NEMA 4 |
| Vibrating rod | 304 / 316 stainless steel, 19 mm Ø, 275 mm long |
| Process connection | 1 in PT |
| Cable entries | 2 × ½ in NPT |
| Operating temperature | Housing −40 to +60 °C; rod −40 to +80 °C |
| Max. pressure | 20 bar (290 psi) |
| Housing size | 113 mm Ø × 108 mm |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG VBL is a vibrating rod level switch for detecting bulk solids in medium and large hoppers and silos. The 275 mm stainless steel rod vibrates freely until material covers it, then switches an SPDT relay rated 5 A at 250 V AC; a sensitivity dial adapts it to anything from coarse, dense material to light fluidized powders.
It runs on 20–250 V AC or DC, mounts with a 1 in PT thread, withstands up to 20 bar and sits in a die-cast aluminium IP65 housing.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
