APG IRU-2000 ultrasonic level and presence sensor, surface mount, 0.3–7.6 m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA, RS-485, Relay / switch
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1470 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | IRU-2000 (IRU-2002/2003/2004/2005) |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA, RS-485, Relay / switch |
| Hazardous area | General purpose |
Datasheet
Technical features
| For use outside the tank | presence/absence detection, object profiling, open bins and conveyors |
|---|---|
| Programmable response time (up to 50 Hz) and filtering | |
| Internal temperature compensation | |
| Set-up with RST-3001/3002 USB programmer; user-selected units | |
| Surface mounting with four screws | |
Applications
| Level in open bins and sumps | |
| Presence/absence and object profiling | |
| Distance measurement on conveyors and vehicles |
Key specifications
| Range | 0.3–7.6 m liquids; 0.3–3 m solids |
|---|---|
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Output | Solid-state relay, isolated 4–20 mA, RS-485 + NPN, or 4–20 mA + 2 NPN |
| Supply | 12–28 V DC, 80 mA |
| Enclosure | ABS with UV inhibitor, NEMA 4X |
Specification
| Operating range | 0.30–7.62 m (liquids); 0.30–3.05 m (solids) |
|---|---|
| Beam angle | 9° off axis |
| Frequency | 69 kHz |
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Response time | Up to 50 Hz (every 20 ms) |
| Supply | 12–28 V DC, 80 mA at 24 V DC |
| Connection | 6-pin terminal strip (2002/2003); 6-conductor cable or 5-pin micro-connector (2004/2005) |
| Operating temperature | −40 to +60 °C |
| Enclosure | ABS with UV inhibitor, NEMA 4X |
| Certification | CSA General Purpose |
Output versions
| Model | Output |
|---|---|
| IRU-2002 | 1 solid-state relay |
| IRU-2003 | Isolated 4–20 mA |
| IRU-2004 | RS-485 with 1 NPN trip point |
| IRU-2005 | 4–20 mA with 2 NPN trip points |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

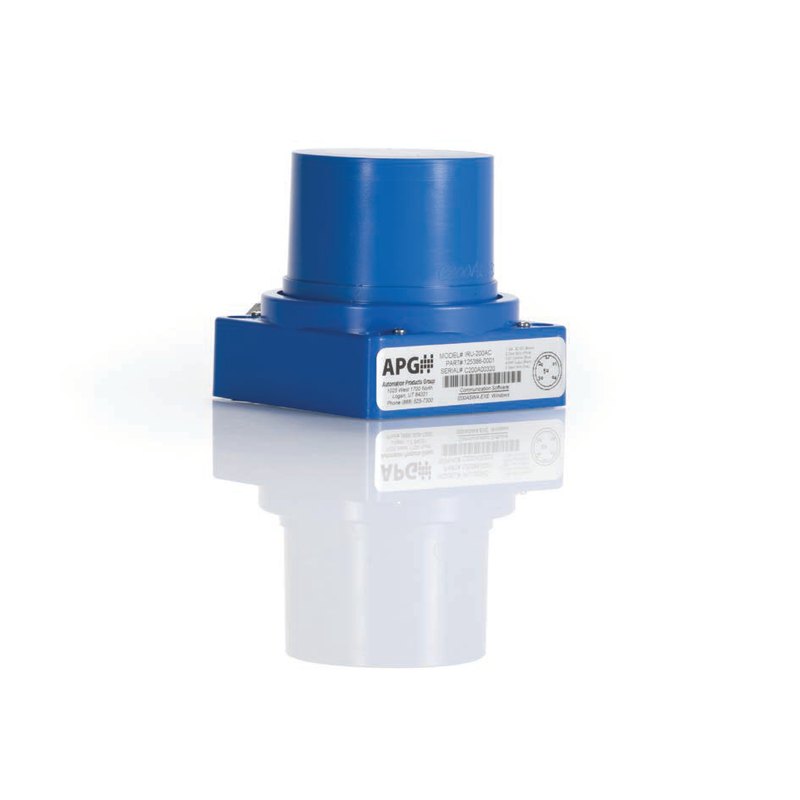

Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG IRU-2000 is a surface-mounted ultrasonic sensor for applications outside a closed tank, such as level in open bins, presence or absence detection and object profiling. It measures liquids from 0.3 to 7.6 m and solids from 0.3 to 3 m with ±0.25% accuracy and 2.5 mm resolution, updating up to 50 times a second.
Versions offer a solid-state relay, an isolated 4–20 mA output, RS-485 with a trip point, or 4–20 mA with two NPN trip points. It runs on 12–28 V DC, has internal temperature compensation, and is set up with a USB programmer.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
