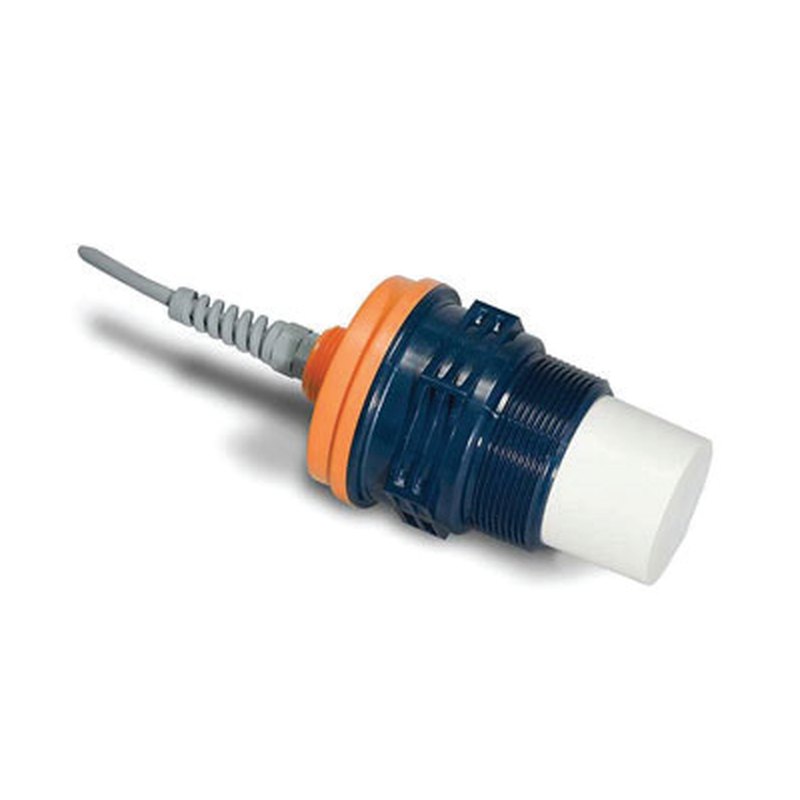

APG IRU-2420 ultrasonic level transmitter, 0.3–7.6 m, 4–20 mA, 2 in NPT, Class I Div 2
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1471 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | IRU-2420 (IRU-2423/2425) |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Non-contact level, volume, proximity and distance on liquids and solids | |
| AutoSense software for easy set-up | |
| Compensates for temperature, humidity and agitators | |
| PVDF (Kynar)-faced ceramic transducer, 2 in NPT mount | |
| Programmable response time (20 ms minimum) |
Applications
| Tank level and volume in chemical and water tanks | |
| Level of solids in small bins; proximity and distance |
Key specifications
| Range | 0.3–7.6 m |
|---|---|
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Output | 4–20 mA, or 4–20 mA + 2 NPN |
| Supply | 12–28 V DC, 75 mA |
| Approvals | Class I Div 2, Groups A–D; IP65 |
Specification
| Operating range | 0.3–7.6 m |
|---|---|
| Beam angle | 9° off axis |
| Frequency | 69 kHz |
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Response time | Programmable, 20 ms minimum |
| Output | 4–20 mA (600 Ω at 24 V DC, 150 Ω at 12 V DC), or 4–20 mA with 2 NPN outputs |
| Supply | 12–28 V DC, 75 mA at 24 V DC |
| Connection | 4- or 5-conductor shielded cable (1.8 m standard) or micro-connector |
| Materials | PVDF transducer housing; PC/PET upper housing |
| Process connection | 2 in NPT (¾ in NPT conduit) |
| Operating temperature | −40 to +60 °C |
| Protection / approvals | IP65; Class I Div 2, Groups A, B, C, D |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG IRU-2420 is a compact ultrasonic level transmitter that measures liquids and solids without contact from 0.3 to 7.6 m, with ±0.25% accuracy and 2.5 mm resolution. Its PVDF-faced transducer mounts in a 2 in NPT port, and built-in compensation handles changes in temperature and humidity and the effect of agitators.
It gives a 4–20 mA output (IRU-2423) or 4–20 mA plus two NPN switch outputs (IRU-2425), runs on 12–28 V DC, is rated IP65 and is approved for Class I Div 2 hazardous locations.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
